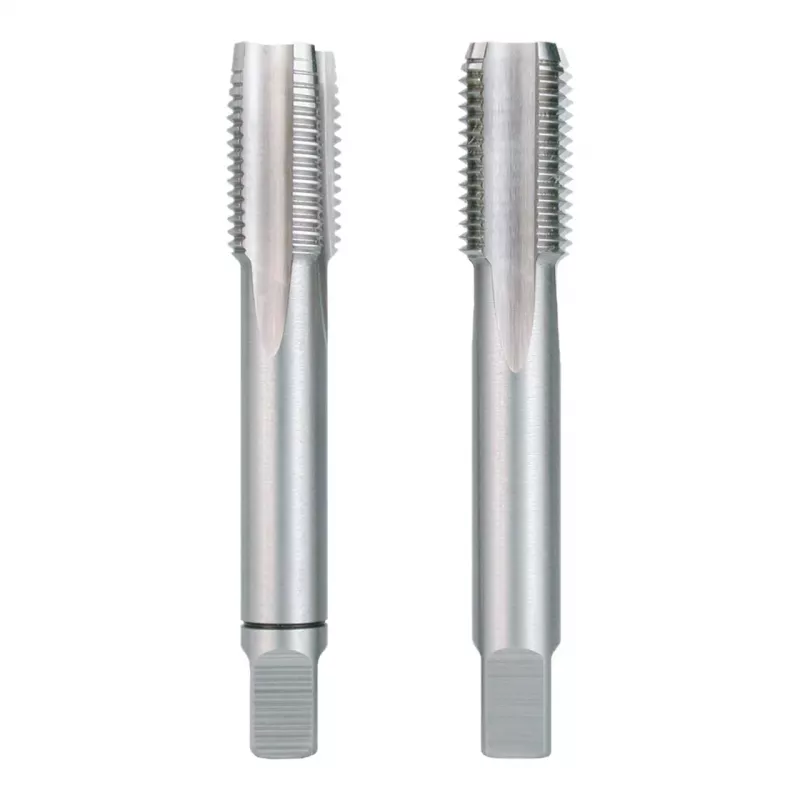

RUKO HGB sada 2-dielna DIN 2181 MF 24 x 1,5 mm sada ručných závitníkov (predrezávací a dokončovací)

For machinists and maintenance technicians working on metric fine threads in steel or cast iron, this RUKO hand tap set provides both a taper and a bottoming tap for cutting M24 x 1.5 mm threads to DIN 2181. The HSS-G ground flutes deliver clean threads in through and blind holes.

Key specifications

• Thread size: M24 x 1.5 mm metric fine
• Standard: DIN 2181
• Set contents: 1 taper tap, 1 bottoming tap
• Material: HSS-G (high speed steel, ground)
• Cutting direction: right-hand
• Tolerance class: ISO 2 (6H)
• Overall length: 130 mm
• Thread length: 45 mm
• Shank diameter: 18 mm
• Square drive: 14.5 mm
• Flutes: 4 straight
• Surface: bright

Why choose it

The two-tap set covers the full thread from start to finish: the taper tap leads the cut, and the bottoming tap finishes threads close to the hole bottom. Ground flutes and HSS-G steel provide consistent performance in unalloyed and low-alloy steels, cast iron, and non-ferrous metals.

Ideal use cases

• Creating M24 x 1.5 mm threads in through holes
• Finishing threads in blind holes where full depth is required
• Maintenance and repair of metric fine threaded components

Good to know

Suitable for hand tapping with a tap wrench. Use appropriate cutting fluid for best results.
