RUKO HGB sada 2-dielny DIN 2181 MF11 x 1,0 mm ručný závitník

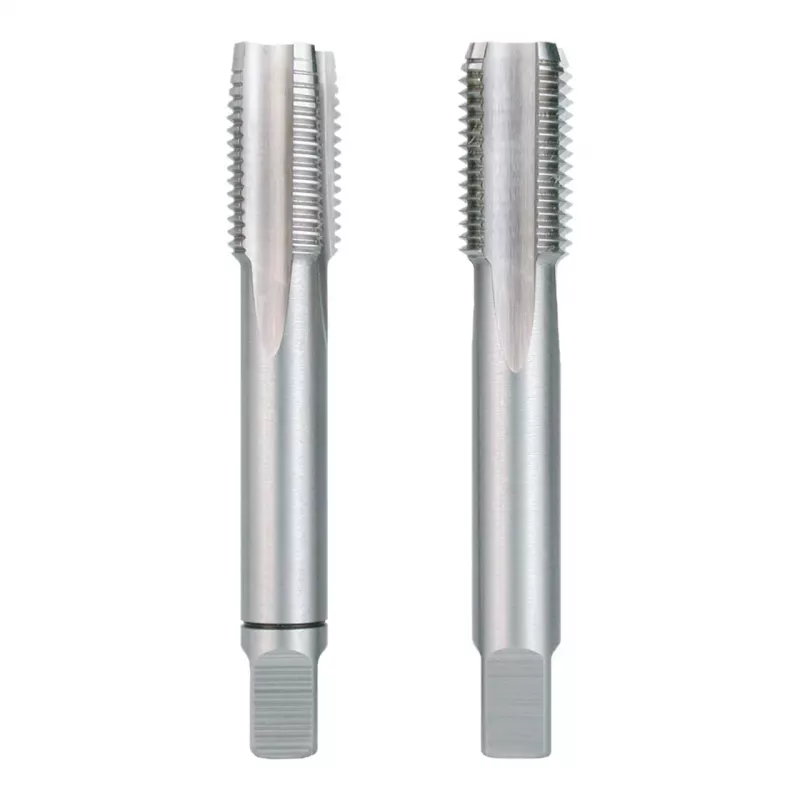

Hand tap set for cutting metric fine threads M11 x 1.0 mm according to DIN 2181. The set includes a taper tap and a second tap, both made of high speed steel (HSS) with bright finish. Suitable for through holes and blind holes in unalloyed and alloyed steels, cast iron, and non-ferrous metals.

Advantages

Two-piece set covers both starting and finishing cuts. HSS provides wear resistance and long tool life. DIN 2181 geometry ensures accurate thread form and pitch.

Suitable for

• Unalloyed and alloyed steels
• Cast iron
• Non-ferrous metals
• Through holes and blind holes

Key specifications

• Thread standard: Metric Fine (MF)
• Nominal diameter: M11
• Thread pitch: 1.0 mm
• Manufacturing standard: DIN 2181
• Material: High Speed Steel (HSS)
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Recommended core hole diameter: 10.0 mm
• Shank type: Square drive
• Surface finish: Bright (uncoated)
• Thread angle: 60°
• Packaging: Plastic case

Recommendations

Use with suitable cutting fluid for longer tool life. Pre-drill with a 10.0 mm drill bit. For blind holes, ensure adequate chip removal.
