RUKO HGB-sada DIN 352 HSS 60° 7/16 palca UNC sada ručných závitníkov

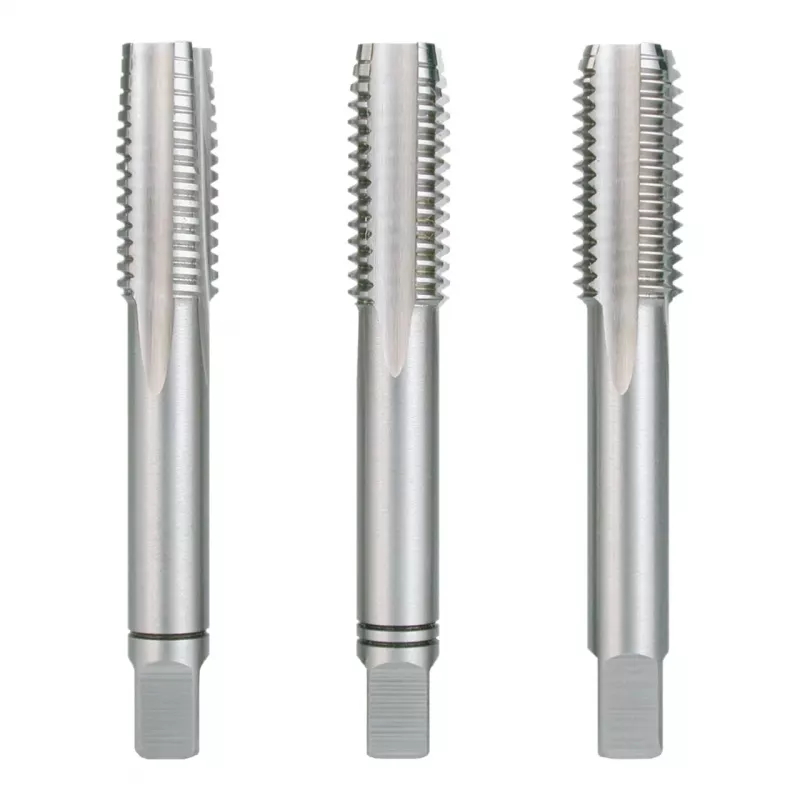

Hand tap set for cutting UNC threads with 7/16 inch diameter and 14 TPI. The set includes three taps: taper, second, and bottoming, made of high-speed steel (HSS) to DIN 352 with a 60° thread angle. Suitable for through and blind holes in materials up to 900 N/mm² tensile strength.

Advantages

HSS construction provides durability and wear resistance. The three-piece set allows progressive threading: taper tap for starting, second tap for intermediate, and bottoming tap for threads close to the bottom of blind holes. Bright finish reduces friction and aids chip flow.

Suitable for

• General purpose threading in steel, cast iron, and non-ferrous metals
• Through holes and blind holes
• Manual threading operations with tap wrench

Key specifications

• Thread standard: UNC (Unified National Coarse)
• Nominal diameter: 7/16 inch
• Threads per inch: 14
• Thread angle: 60°
• Material: High-Speed Steel (HSS)
• Standard: DIN 352
• Number of taps: 3 (taper, second, bottoming)
• Cutting direction: Right-hand
• Shank type: Square
• Surface finish: Bright
• Recommended material hardness: Up to 900 N/mm²
• Packaging: Plastic storage case

Recommendations

Use with cutting oil or suitable coolant to extend tool life and improve thread quality.
