RUKO HGB sada DIN 352 HSS-Co 60° M10 x 1,50 ručný závitník sada, 3-dielna

This RUKO hand tap set cuts metric ISO threads with a 60° thread angle in a single operation, thanks to its three-tap sequence. The HSS-Co material with cobalt content handles unalloyed and alloyed steels up to 800 N/mm², cast iron, non-ferrous metals, and plastics, making it a reliable choice for workshop threading tasks.

Highlights

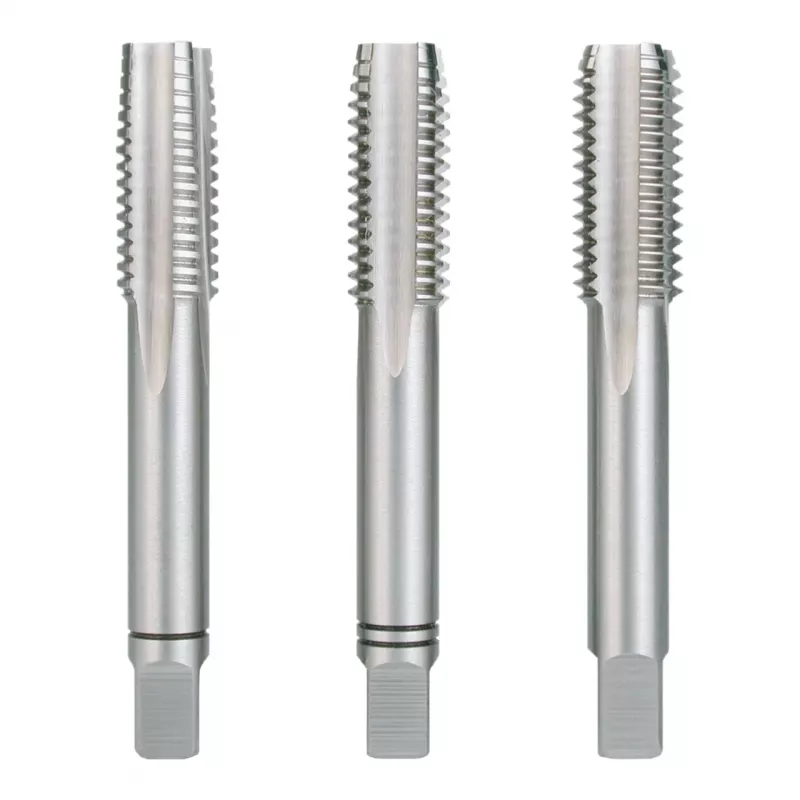

• 3-piece set: taper, second, and bottoming taps for complete thread cutting
• M10 x 1.50 mm metric ISO thread, DIN 352 standard
• HSS-Co high-speed steel with cobalt for enhanced wear resistance
• Right-hand cutting direction, ISO 2 (6H) tolerance class
• Bright surface finish, square shank per DIN 10

In daily use

The set covers the full threading process: the taper tap starts the cut, the second tap deepens it, and the bottoming tap finishes threads close to the bottom of blind holes. The recommended core hole diameter is 8.5 mm. The taps come in a plastic box for organized storage.

Full specifications

• Thread standard: Metric ISO thread (M)
• Thread size: M10
• Thread pitch: 1.50 mm
• Thread angle: 60°
• Tool standard: DIN 352
• Material: HSS-Co (high-speed steel with cobalt)
• Set composition: 3-piece set (taper, second, bottoming tap)
• Cutting direction: Right-hand
• Tolerance class: ISO 2 (6H)
• Surface finish: Bright
• Recommended core hole diameter: 8.5 mm
• Application material: Unalloyed and alloyed steels, cast iron, non-ferrous metals, plastics
• Max tensile strength: Up to 800 N/mm²
• Shank type: Square (DIN 10)
• Product type: Hand tap set
• Packaging type: Plastic box

Final note

A complete hand tap set for reliable M10 thread cutting in a wide range of materials.
