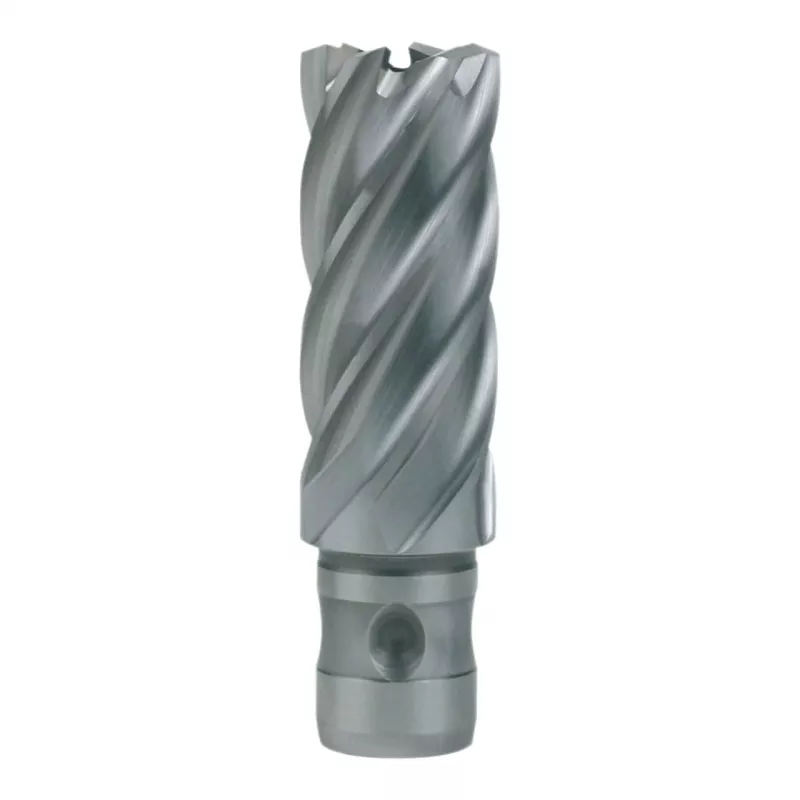

RUKO KEB-HSSCo-22,0mm-QuickIn jadrový vrták, 22 mm priemer, HSS-Co, stopka Quick-In, 30 mm hĺbka rezu

This core drill bit (annular cutter) delivers efficient hole making in steel, stainless steel, cast iron, non-ferrous metals, and plastics. Its high-speed steel cobalt (HSS-Co) construction and 22 mm diameter provide reliable performance in demanding drilling applications.

Advantages

Multi-tooth cutting geometry reduces cutting forces and improves chip evacuation. The Quick-In shank enables tool-free bit changes, saving time on the job. HSS-Co material withstands high temperatures and maintains hardness, extending tool life.

Suitable for

• Steel
• Stainless steel
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Drill diameter: 22 mm
• Cutting depth: 30 mm
• Material: High-speed steel cobalt (HSS-Co)
• Shank type: Quick-In
• Maximum tensile strength: 1000 N/mm²
• Series: KEIL Quick-In

Recommendations

Use with magnetic drilling machines or drill presses equipped with a Quick-In adapter. A pilot pin is required for centering and slug ejection.
