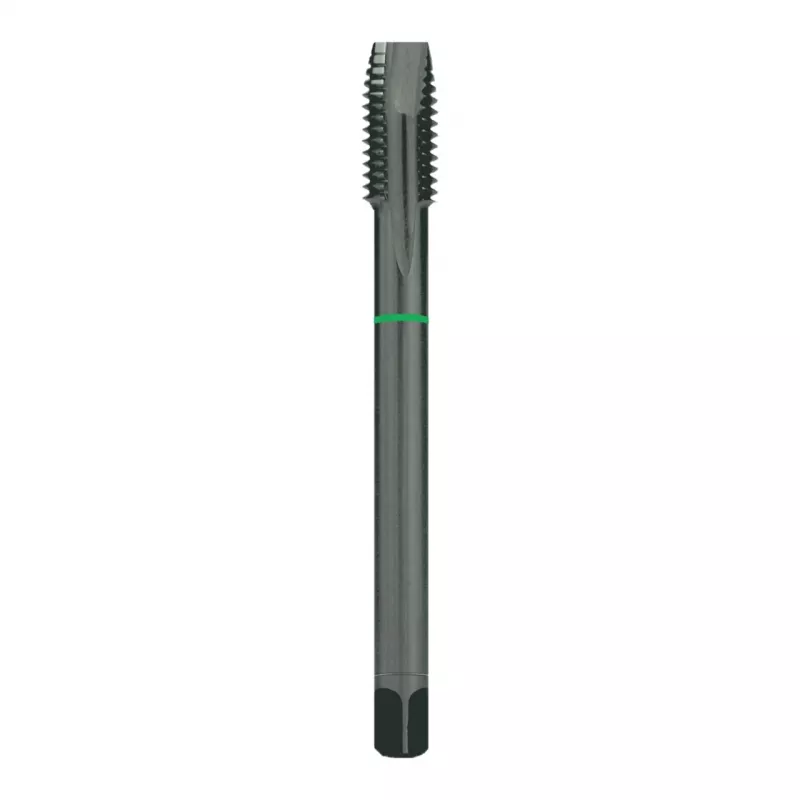

RUKO MGB-DIN376-HSSCo-vap.-M16x2.00mm strojný závitník

This machine tap stands out with its HSSCo cobalt-alloyed high-speed steel and vaporized surface treatment, offering enhanced wear resistance and heat tolerance for demanding threading operations. The spiral point design pushes chips forward, making it ideal for through-hole applications.

Highlights

• DIN 376 standard metric coarse thread M16 x 2.00 mm
• HSSCo material with vaporized (steam tempered) surface for improved performance
• Spiral point (Form C) flute geometry for through holes
• Right-hand cutting with 4 flutes for efficient chip evacuation
• Tolerance class ISO 2 (6H) for standard thread fit

In daily use

Designed for machining steel, stainless steel, cast iron, and non-ferrous metals, this tap delivers reliable threading in production environments. Its square drive shank ensures secure clamping in machine tap holders, while the cobalt alloy maintains hardness at elevated temperatures.

Full specifications

• Thread size: M16 x 2.00 mm
• Total length: 110 mm
• Cutting length: 29 mm
• Shank diameter: 12 mm
• Square drive size: 9 mm
• Number of flutes: 4
• Cutting direction: Right-hand
• Flute type: Spiral point (Form C)
• Tolerance class: ISO 2 (6H)
• Recommended materials: Steel, stainless steel, cast iron, non-ferrous metals

Final note

A robust choice for precise through-hole threading in a range of metals, backed by RUKO's engineering.
