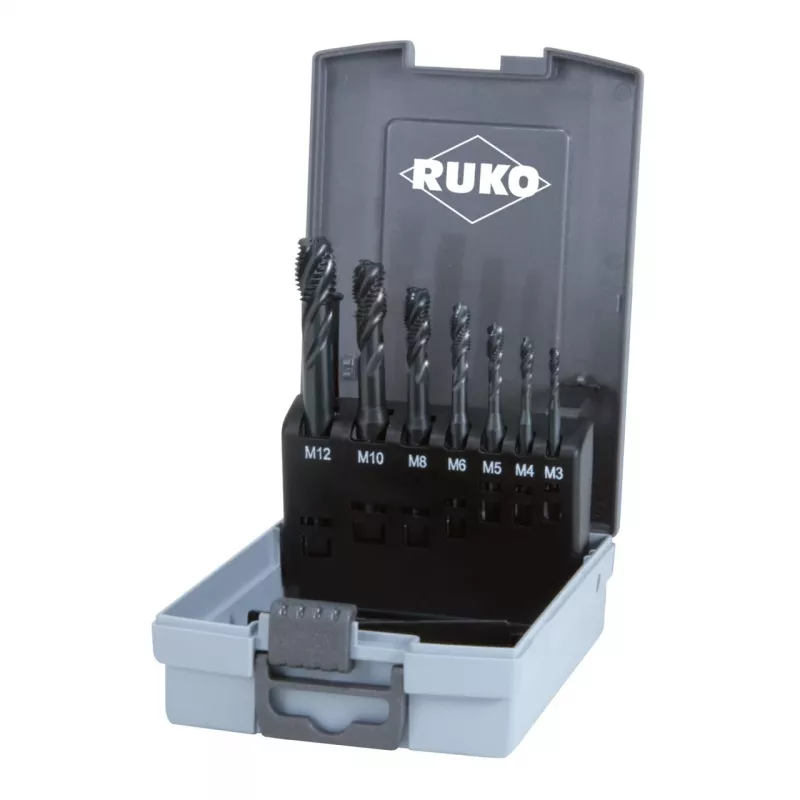

RUKO MGB Set HSSCo VAP 35° M3-M12 sada strojných závitníkov

Threading a range of metric holes in tough materials can require multiple taps and frequent tool changes. This 7-piece machine tap set covers M3 to M12 coarse threads in one organized case, with a 35° spiral flute that pulls chips backward for efficient blind-hole work.

Who is it for

Machinists and maintenance technicians who tap unalloyed and alloyed steels, stainless steels, cast iron, and non-ferrous metals up to 1000 N/mm² tensile strength. Suitable for both through and blind holes.

Main features

• High-speed steel cobalt (HSSCo) with vaporized surface treatment for wear resistance.
• 35° right-hand spiral flute design for effective chip evacuation.
• Metric coarse thread sizes M3, M4, M5, M6, M8, M10, M12.
• DIN 371 (M3–M10) and DIN 376 (M12) shank standards.
• ISO 2 (6H) thread tolerance for standard fit.
• Supplied in a robust plastic case.

Specifications

• Product type: Machine tap set
• Material: High-speed steel cobalt (HSSCo)
• Surface treatment: Vaporized (steam-tempered)
• Thread type: Metric coarse (M)
• Thread sizes: M3, M4, M5, M6, M8, M10, M12
• Number of pieces: 7
• Helix angle: 35°
• Cutting direction: Right-hand
• Flute type: Spiral flute
• Application: Through holes and blind holes
• Suitable materials: Unalloyed and alloyed steels, stainless steels, cast iron, non-ferrous metals
• Max material hardness: 1000 N/mm²
• Standards: DIN 371 (M3–M10), DIN 376 (M12)
• Thread tolerance: ISO 2 (6H)
• Packaging: Plastic case

Tips

Use a suitable cutting fluid or coolant to extend tool life and improve thread quality. For blind holes, clear chips periodically to prevent clogging.
