RUKO SCE-DIN223-M11x1,5mm nastaviteľná kruhová závitová čeľusť HSS metrický hrubý závit

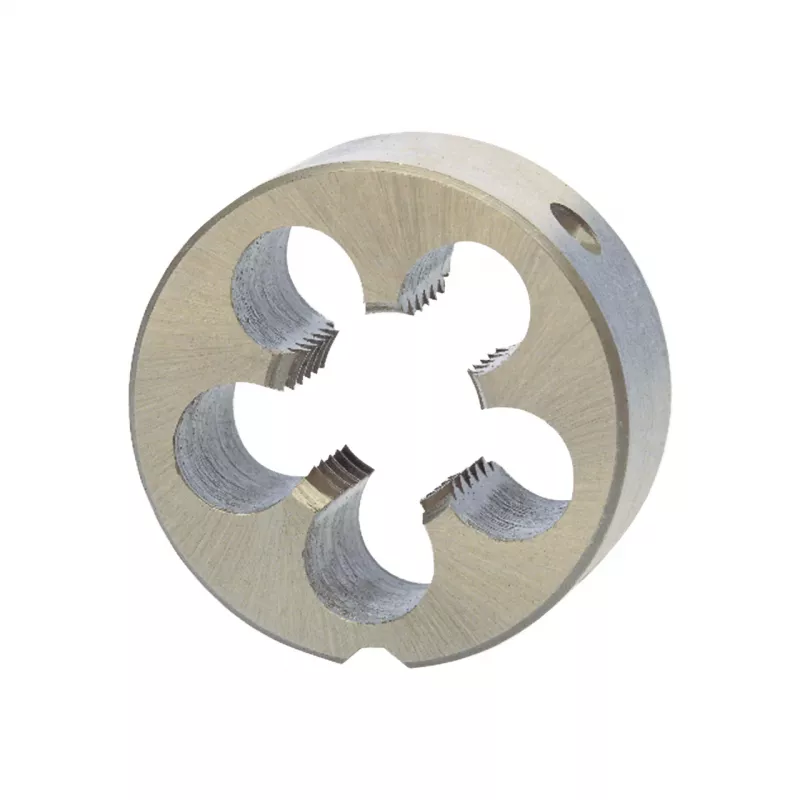

This RUKO round die stands out with its adjustable design and DIN 223 precision, making it a reliable choice for cutting metric coarse threads in general-purpose machining. Unlike fixed dies, the open slot allows fine adjustment to achieve the desired thread fit.

Highlights

• Adjustable round die with open slot for fine-tuning thread fit
• High-speed steel (HSS) construction for durability and heat resistance
• DIN 223 (EN 22568) standard ensures dimensional accuracy
• Right-hand cutting direction for standard threading operations
• Bright uncoated finish reduces friction and resists corrosion

In daily use

The die cuts an M11 x 1.5 mm metric coarse thread with a 6g tolerance class, suitable for unalloyed and low-alloyed steels as well as non-ferrous metals. Its three flutes provide efficient chip evacuation, and the 30 mm outer diameter and 11 mm thickness fit standard die stocks.

Full specifications

• Thread type: Metric coarse thread
• Nominal thread diameter: 11 mm
• Thread pitch: 1.5 mm
• Thread standard: ISO Metric (DIN 13)
• Die standard: DIN 223 (EN 22568)
• Material: High-speed steel (HSS)
• Cutting direction: Right-hand
• Outer diameter (D1): 30 mm
• Thickness (H): 11 mm
• Tolerance class: 6g
• Surface treatment: Bright (uncoated)
• Die type: Round die
• Adjustment: Adjustable (open slot)
• Number of flutes: 3
• Application: General purpose threading
• Suitable materials: Unalloyed and low-alloyed steels, non-ferrous metals
• Manufacturer series: Völkel HSS DIN 223

Final note

Built to DIN 223, this die delivers consistent thread quality for professional and workshop use.
