RUKO SCE-DIN223-M3,5x0,6mm metrický jemný závitník, HSS-E, 20x7mm

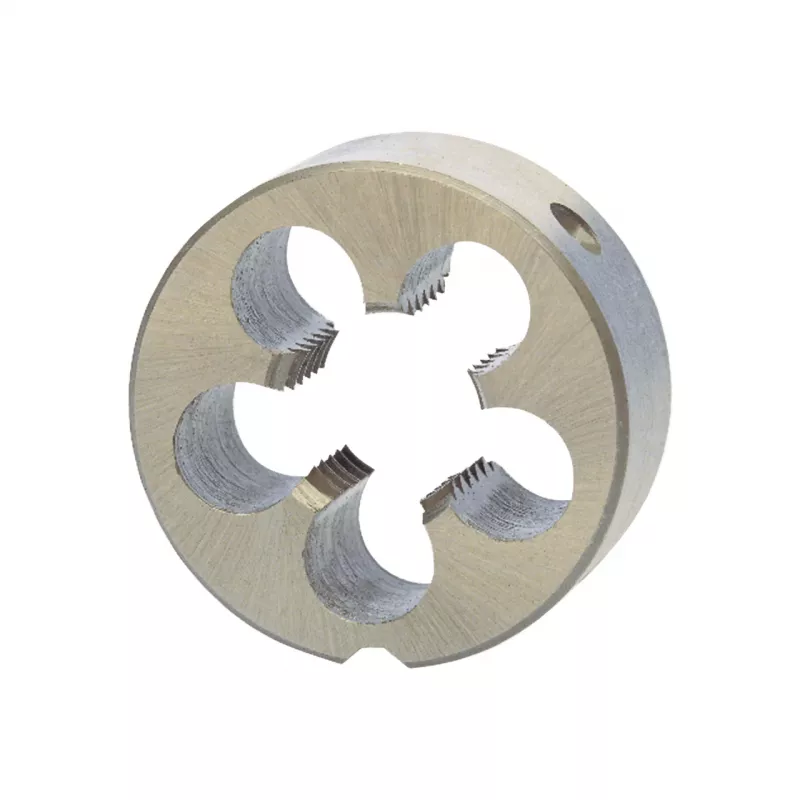

This round die from RUKO GMBH is engineered for cutting metric fine threads with a nominal diameter of M3.5 and a pitch of 0.6 mm. Manufactured from high-speed steel with cobalt (HSS-E), it delivers reliable performance when threading steel, non-ferrous metals, and plastics.

Advantages

The ground thread profile ensures precise and clean threads, while the right-hand cutting direction and 6g tolerance class guarantee compatibility with standard metric fine threads. The 20 mm outer diameter and 7 mm thickness fit standard die stocks of the same size.

Suitable for

• General purpose threading in steel
• Threading non-ferrous metals
• Threading plastics

Key specifications

• Thread type: Metric fine thread
• Nominal diameter: M3.5
• Thread pitch: 0.6 mm
• Standard: DIN 223 (EN 22568)
• Material: HSS-E (high-speed steel with cobalt)
• Cutting direction: Right-hand
• Outer diameter: 20 mm
• Thickness: 7 mm
• Tolerance class: 6g
• Number of flutes: 3
• Surface treatment: Uncoated (bright finish)
• Manufacturing process: Ground thread

Recommendations

For best results, use with a suitable die stock of 20 x 7 mm and apply appropriate cutting fluid when threading harder materials.
