RUKO SCE-DIN223-M48x5.0mm závitová čeľusť, metrická M48 x 5,0 mm, HSS, DIN 223, pravá

Cut precise M48 x 5.0 mm external threads with this HSS round die, built to DIN 223 for reliable performance in steel, cast iron, non-ferrous metals, and plastics.

Overview

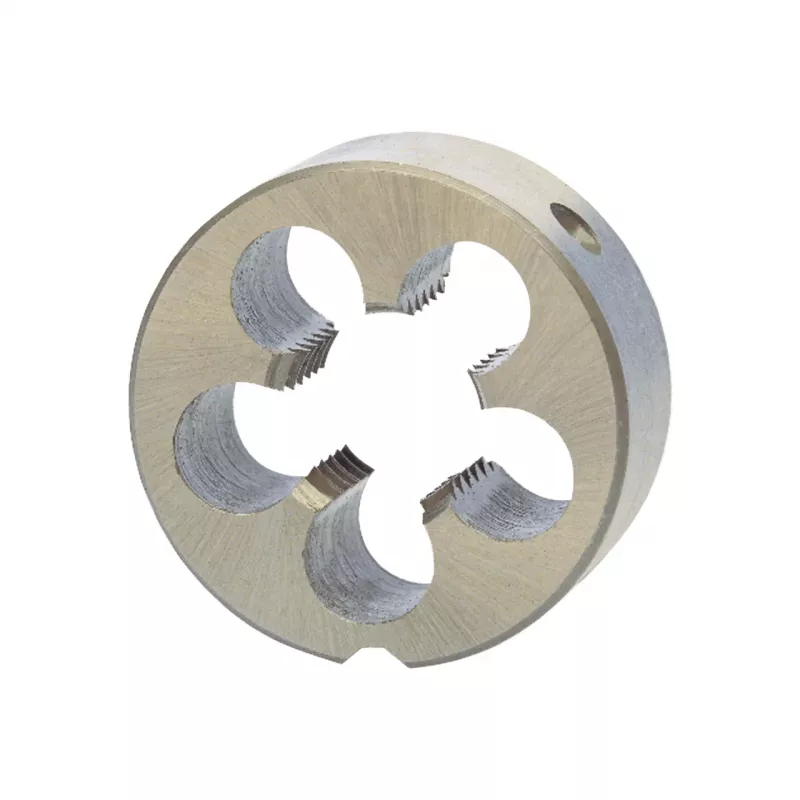

The RUKO GMBH SCE-DIN223-M48x5.0mm is a high-speed steel round die designed for cutting metric external threads. With a thread size of M48 and a pitch of 5.0 mm, it meets DIN 223 standards and features a ground profile for accurate thread geometry. The die has 5 flutes for efficient chip evacuation and a right-hand cutting direction.

What stands out

• Thread size: M48 x 5.0 mm
• Material: HSS (High-Speed Steel)
• Standard: DIN 223
• Ground profile with 5 flutes
• Right-hand cutting direction
• Outer diameter: 80 mm, thickness: 20 mm
• Tolerance class: 6g
• Suitable for manual and machine operation

Technical details

• Thread type: Metric
• Thread size: M48
• Thread pitch: 5.0 mm
• Standard: DIN 223
• Material: HSS
• Cutting direction: Right-hand
• Outer diameter: 80 mm
• Thickness: 20 mm
• Tolerance class: 6g
• Application: External thread cutting
• Suitable materials: Steel, cast iron, non-ferrous metals, plastics
• Finish: Bright (uncoated)
• Tool type: Round die (threading die)
• Manufacturing process: Ground profile
• Number of flutes: 5
• Recommended use: Manual and machine operation

Our verdict

A robust HSS round die for demanding threading tasks, delivering precision and durability across a range of materials.
