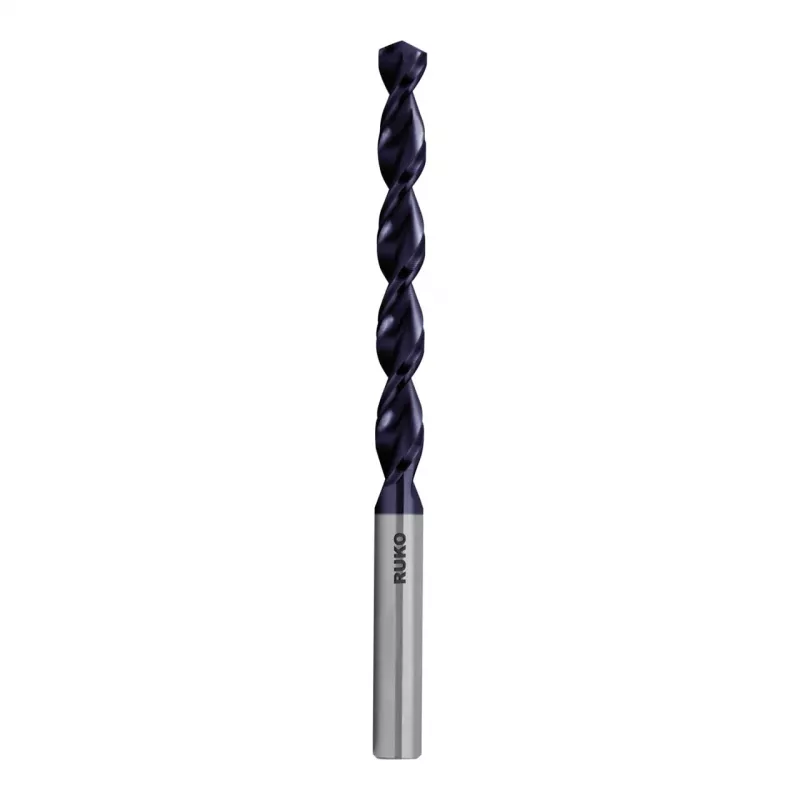

RUKO SPB-DIN338-HSS-TiAlN Ø12,5mm špirálový vrták

The RUKO SPB-DIN338-HSS-TiAlN Ø12.5mm twist drill bit combines a fully ground HSS body with a TiAlN coating, delivering high wear resistance and heat resistance up to 800°C. Its split point geometry provides self-centering for accurate hole positioning without a center punch.

Highlights

• TiAlN coating for extended tool life and high-temperature performance
• Split point tip for fast, precise drilling without walking
• DIN 338 jobber length for versatile use in hand drills and machines
• Suitable for steel, stainless steel, cast iron, non-ferrous metals, and plastics

In daily use

This drill bit excels in general-purpose industrial drilling. The 135° point angle and self-centering split point reduce thrust requirements and improve hole quality. The TiAlN coating reduces friction and allows drilling in tough materials without coolant in many cases.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: High-speed steel (HSS)
• Coating: Titanium Aluminum Nitride (TiAlN)
• Diameter: 12.5 mm
• Shank type: Cylindrical
• Shank diameter: 12.5 mm
• Total length: 151 mm
• Flute length: 101 mm
• Point angle: 135°
• Point type: Split point
• Cutting direction: Right-hand
• Tolerance: h8
• Manufacturing process: Fully ground
• Heat resistance of coating: Up to 800°C
• Coating hardness: Approx. 3000 HV

Final note

Engineered for reliability in demanding drilling tasks, this RUKO drill bit offers consistent performance across a wide range of materials.
