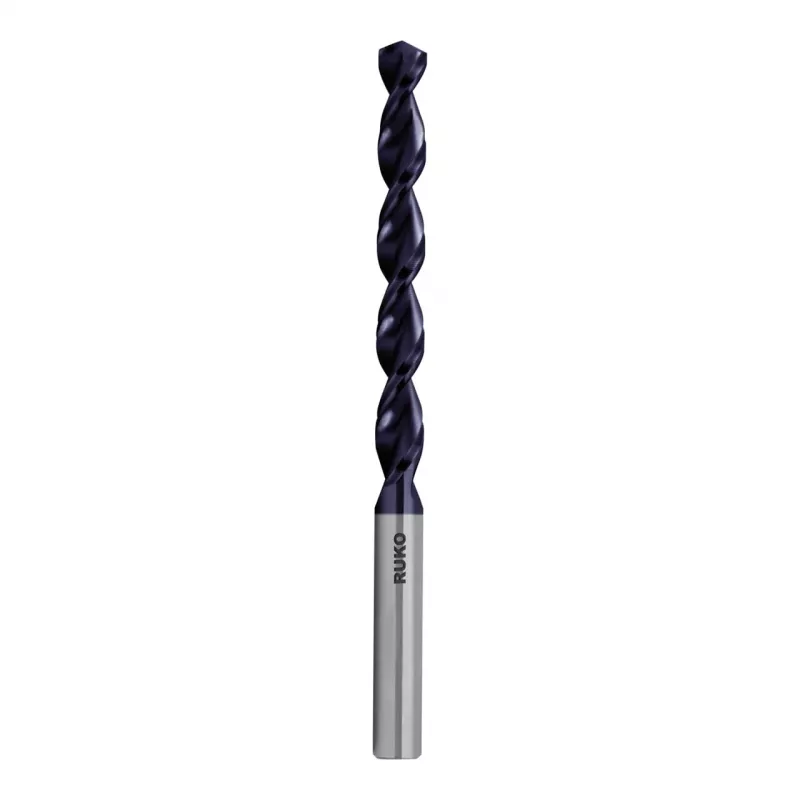

RUKO SPB-DIN338-HSS-TiAlN-Ø6,5mm špirálový vrták

Twist drill bit with a 6.5 mm diameter, engineered for high-performance drilling in tough materials. The TiAlN coating provides exceptional heat resistance up to 800°C and very high wear resistance, making it ideal for demanding applications.

Advantages

Ground from solid high-speed steel for superior precision and durability. The 130° point angle and right-hand cutting direction ensure efficient chip removal and accurate hole positioning.

Suitable for

• Steel
• Cast iron
• Non-ferrous metals
• Plastics

Key specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: High-speed steel (HSS)
• Coating: Titanium aluminum nitride (TiAlN)
• Diameter: 6.5 mm
• Shank type: Cylindrical (straight shank)
• Point angle: 130°
• Cutting direction: Right-hand cutting
• Manufacturing process: Ground from solid
• Tolerance: h8
• Overall length (l1): 101 mm
• Flute length (l2): 63 mm
• Core thickness: Standard (DIN 338)
• Core taper: Standard (DIN 338)
• Heat resistance: Up to 800°C
• Wear resistance: Very high
• Packaging: Single bit

Recommendations

For best results, use appropriate cutting fluid and ensure the workpiece is securely clamped. Suitable for use in drill presses and handheld drills with adequate power.
