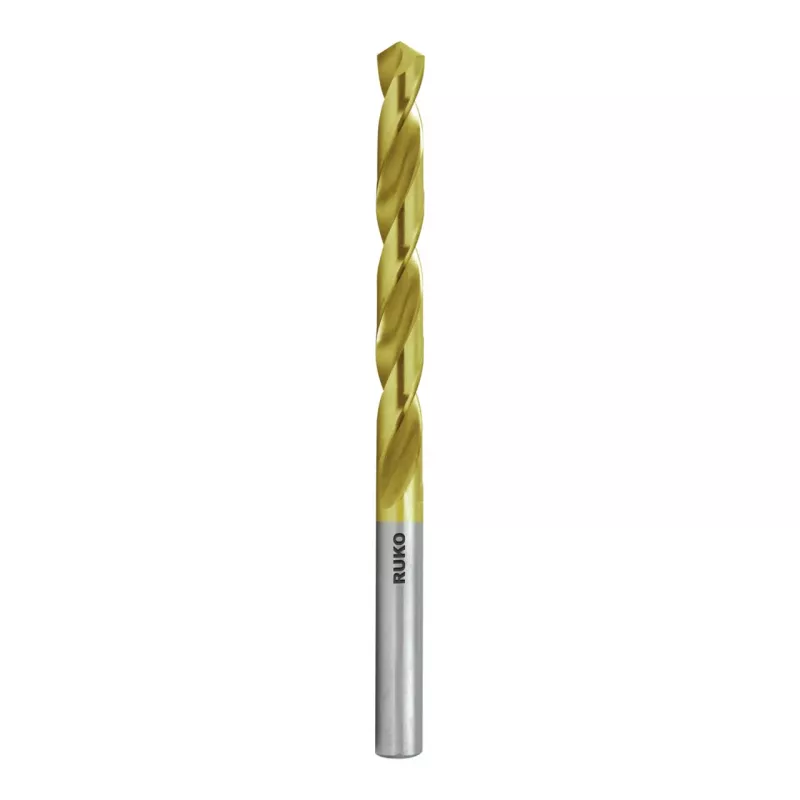

RUKO SPB-DIN338-HSS-TiN-Ø14,0mm špirálový vrták

Precision drilling in tough metals demands a bit that stays sharp and centered. The RUKO SPB-DIN338-HSS-TiN 14.0 mm twist drill bit is built for exactly that—a high-speed steel core with a titanium nitride coating that reduces friction and heat, so it cuts cleanly through steel, cast iron, non-ferrous metals, and plastics without wandering.

Who is it for

Machinists, metalworkers, and serious DIYers who need reliable, accurate holes in metal up to 900 N/mm² tensile strength. If you're tired of bits that dull quickly or drift off-center, this precision-ground bit is your answer.

Main features

• 14.0 mm diameter with h8 tolerance for consistent hole sizing
• TiN coating extends tool life and improves chip evacuation
• DIN 338 standard geometry with 118° point angle for fast centering
• Right-hand cutting, cylindrical shank fits standard drill chucks
• Precision ground from high-speed steel for durability

Specifications

• Drill Bit Type: Twist Drill Bit
• Material: High-Speed Steel (HSS)
• Coating: Titanium Nitride (TiN)
• Standard: DIN 338
• Diameter: 14.0 mm
• Overall Length: 160 mm
• Working Length: 114 mm
• Shank Type: Cylindrical
• Point Angle: 118°
• Cutting Direction: Right-hand cutting
• Tolerance: h8
• Manufacturing Process: Precision Ground
• Recommended Application: Steel, Cast Iron, Non-ferrous Metals, Plastics
• Max. Tensile Strength: Up to 900 N/mm²
• Brand Series: Ruko 204 Series
• Packaging Unit: 1 piece

Tips

Use cutting fluid when drilling steel to maximize bit life and hole quality. For deep holes, retract periodically to clear chips and prevent overheating.
