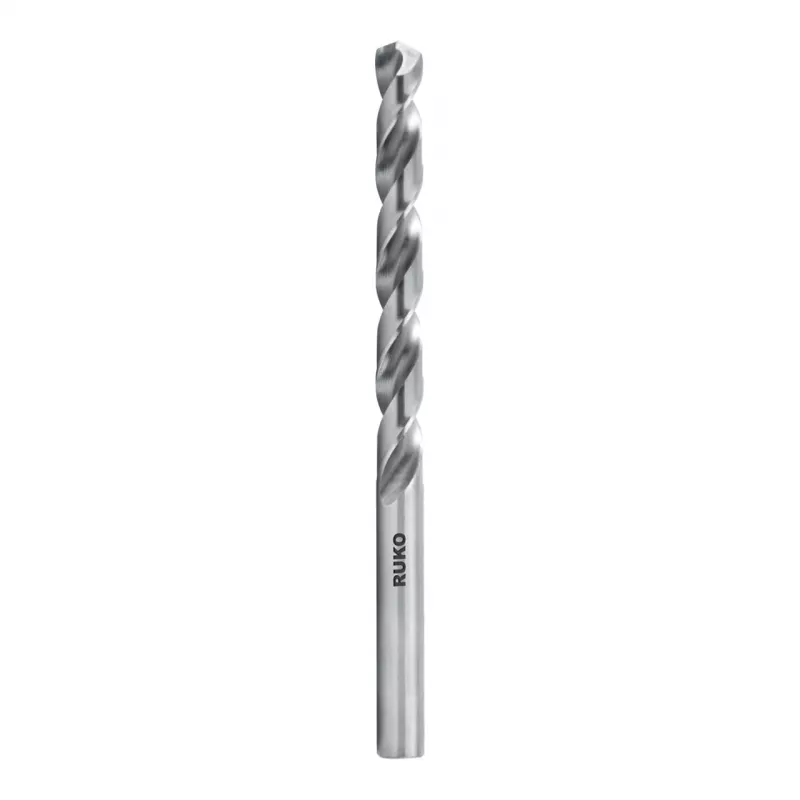

RUKO SPB-DIN338-HSSCo8-Ø1,0mm HSS-Co8 špirálový vrták DIN 338

This RUKO twist drill bit stands out with its 8% cobalt alloyed high-speed steel, delivering high heat and wear resistance for demanding metal drilling. The split point geometry and 135° point angle ensure precise centering and reduced thrust, making it ideal for stainless and acid-resistant steels.

Highlights

• HSS-Co 8% cobalt alloy for high heat resistance
• Split point (cross ground) for accurate starting without center punch
• 135° point angle for efficient cutting in hard materials
• Fully ground flutes for smooth chip evacuation
• DIN 338 standard with cylindrical shank

In daily use

With a diameter of 1.0 mm and a total length of 34 mm, this drill bit is suited for precision work in high-alloy steels, stainless steel, cast iron, and plastics. The bright finish reduces friction, while the h8 tolerance ensures consistent hole quality.

Full specifications

• Drill bit type: Twist drill bit
• Standard: DIN 338
• Material: HSS-Co 8% (high-speed steel with 8% cobalt)
• Diameter: 1.0 mm
• Total length: 34 mm
• Flute length: 12 mm
• Shank type: Cylindrical
• Point angle: 135°
• Point grind: Split point (cross ground)
• Cutting direction: Right-hand cut
• Surface finish: Bright
• Tolerance: h8
• Manufacturing process: Fully ground
• Recommended application: High-alloy steels, stainless steel, acid-resistant steels, heat-resistant steels, cast iron, bronze, plastics
• Maximum material hardness: Up to 1100 N/mm²
• Packaging quantity: 1 (single bit)

Final note

A reliable choice for professionals requiring precision and durability in tough materials.
