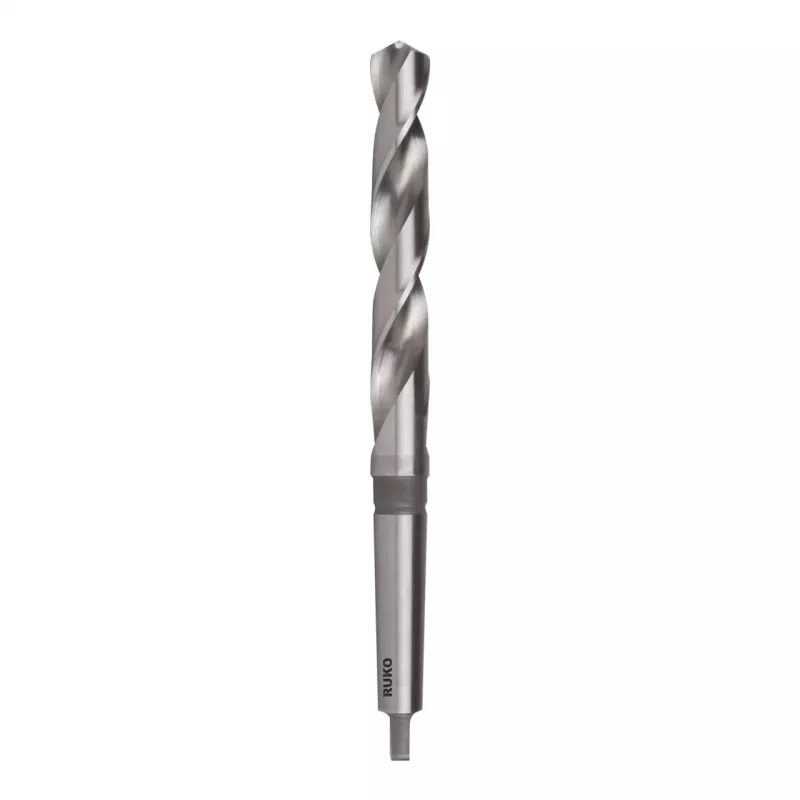

RUKO SPB-DIN345-HSSCo-Ø22,0 mm vrták s Morseovým kónusom

For machinists and metalworking professionals who need reliable drilling in tough materials, this RUKO Morse taper shank drill bit with 22.0 mm diameter delivers precision and durability. It is built to DIN 345 standards from HSS-Co5 high-speed steel with 5% cobalt, ensuring high heat resistance and wear resistance for demanding applications.

Key specifications

• Drill bit type: Morse taper shank drill bit
• Material: HSS-Co (high-speed steel with cobalt, 5% cobalt content)
• Standard: DIN 345
• Diameter: 22.0 mm
• Shank type: Morse taper (MT2)
• Overall length: 265 mm
• Flute length: 150 mm
• Point angle: 130°
• Cutting direction: Right-hand cutting
• Manufacturing process: Ground from solid
• Tolerance: h8
• Surface finish: Bright

Why choose it

The cobalt alloyed steel maintains hardness at high temperatures, allowing faster cutting speeds and longer tool life compared to standard HSS. The Morse taper shank ensures secure and concentric mounting in machine spindles, reducing run-out and improving hole quality.

Ideal use cases

• Drilling steel and stainless steel
• Cast iron and non-ferrous metals
• Plastics

Good to know

This drill bit is ground from solid for precise geometry and consistent performance. It is suitable for use in stationary drilling machines and lathes with MT2 spindle taper.
