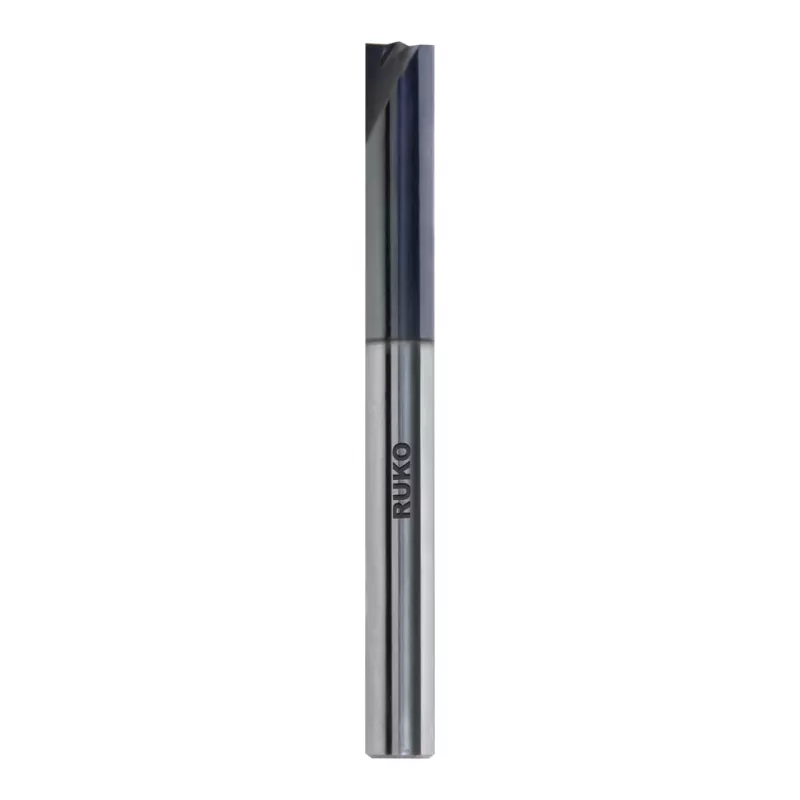

RUKO SPF-FCut-HM-AlTiN-8,0 mm VHM stopková fréza

Machinists and CNC operators in metalworking shops use the RUKO GMBH SPF-FCut-HM-AlTiN-8,0mm solid carbide end mill for precise finishing and general-purpose milling in steel, stainless steel, cast iron, and high-temperature alloys. Its 8.0 mm cutting diameter and AlTiN coating deliver reliable performance in demanding applications.

Key specifications

• Tool Type: Solid Carbide End Mill
• Series: Gühring SPF
• Cutting Diameter: 8.0 mm
• Shank Diameter: 8.0 mm
• Overall Length: 70 mm
• Flute Length: 20 mm
• Material: Solid Carbide (VHM)
• Coating: AlTiN
• Number of Flutes: 4
• Helix Angle: 35°
• Shank Tolerance: h6
• Cutting Edge Type: Center Cutting
• Coolant Supply: External
• Manufacturing Standard: DIN 6527 K (similar)

Why choose it

The AlTiN coating provides high hardness and oxidation resistance, extending tool life in high-speed and dry machining. The 4-flute design ensures smooth cutting and good chip evacuation, while the solid carbide construction offers high rigidity and precision.

Ideal use cases

• Finishing operations in steel and stainless steel
• Slotting and profiling in cast iron
• Machining high-temperature alloys
• General-purpose milling in CNC machines

Good to know

This end mill is suitable for use with Weldon, hydraulic, shrink fit, and collet chucks. It is designed for external coolant supply and features a sharp edge with minor chamfer for optimal performance.
