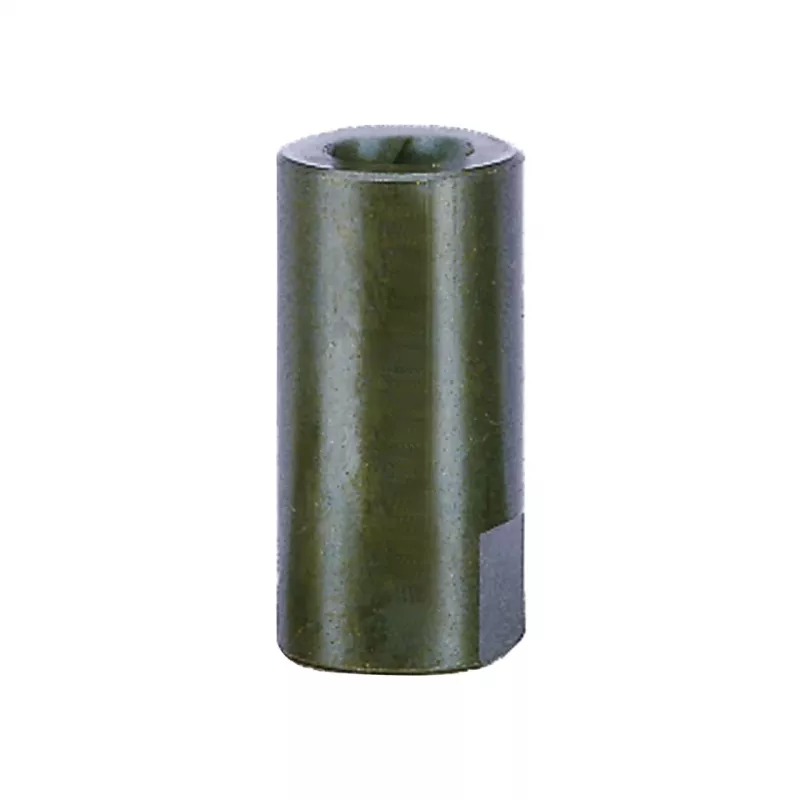

RUKO vrtacia puzdra veľkosť 09, Ø15,0 mm, DIN 172 A, H7, nástrojová oceľ

In drill jigs and fixtures, precise guidance of twist drills and reamers is critical for repeatable hole accuracy. This RUKO drill bush, size 09 with 15.0 mm inner diameter, provides hardened, ground and lapped surfaces to maintain exact concentricity and alignment during production drilling.

Who is it for

Machinists, toolmakers, and production engineers who build or maintain drill jigs, fixtures, and templates requiring press-fit, replaceable guide bushes for high-precision drilling operations.

Main features

• Plain (headless) design for flush press-fit mounting in jig plates.
• Inner diameter tolerance H7 ensures consistent guidance of cutting tools.
• High-grade tool steel hardened to HRC 62–64 for long service life.
• Ground and lapped bore and outer surface for smooth tool entry and accurate positioning.
• Conforms to DIN 172 A for dimensional interchangeability.

Specifications

• Product type: Drill Bush
• Series: RUKO Gr. 09
• Drill diameter (inner): 15.0 mm
• Outer diameter: 22.0 mm
• Overall length: 32.0 mm
• Material: High-grade tool steel
• Hardness: HRC 62–64
• Inner diameter tolerance: H7
• Design type: Plain (headless)
• Standard compliance: DIN 172 A
• Application: Drill jigs and fixtures
• Precision: High concentricity
• Surface finish: Ground and lapped
• Mounting method: Press-fit
• Intended use: Guiding twist drills, reamers, and other cutting tools
• Corrosion protection: Lightly oiled

Tips

For optimal performance, ensure the jig plate hole is reamed to the recommended interference fit for the bush's outer diameter. Clean the bush and plate before pressing, and use a lead-in chamfer if available to avoid shaving the bush during installation.
