Sada kvapalinového chladenia Lian Li GA II LCD

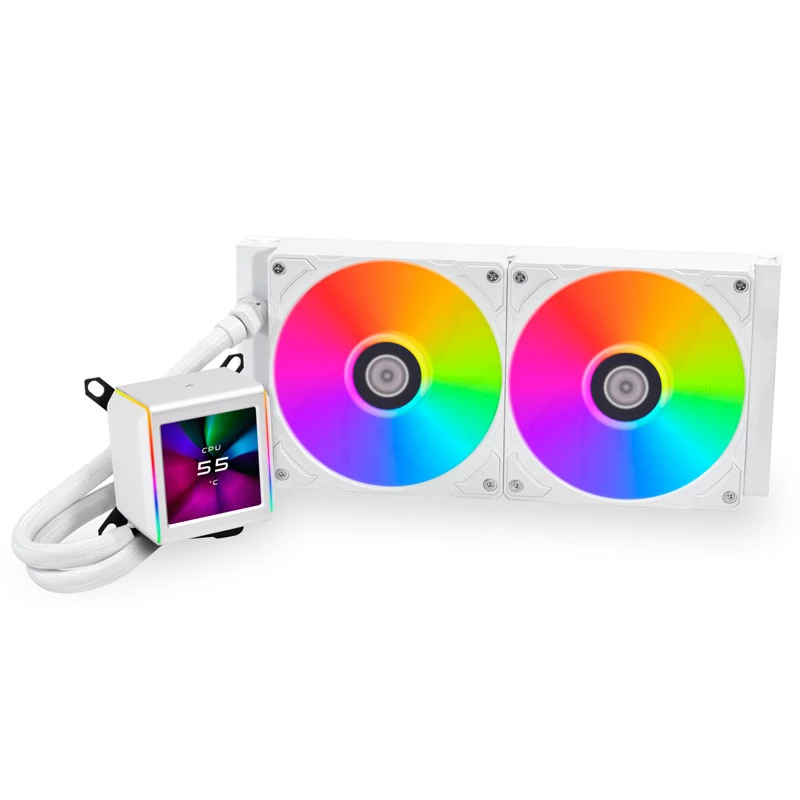

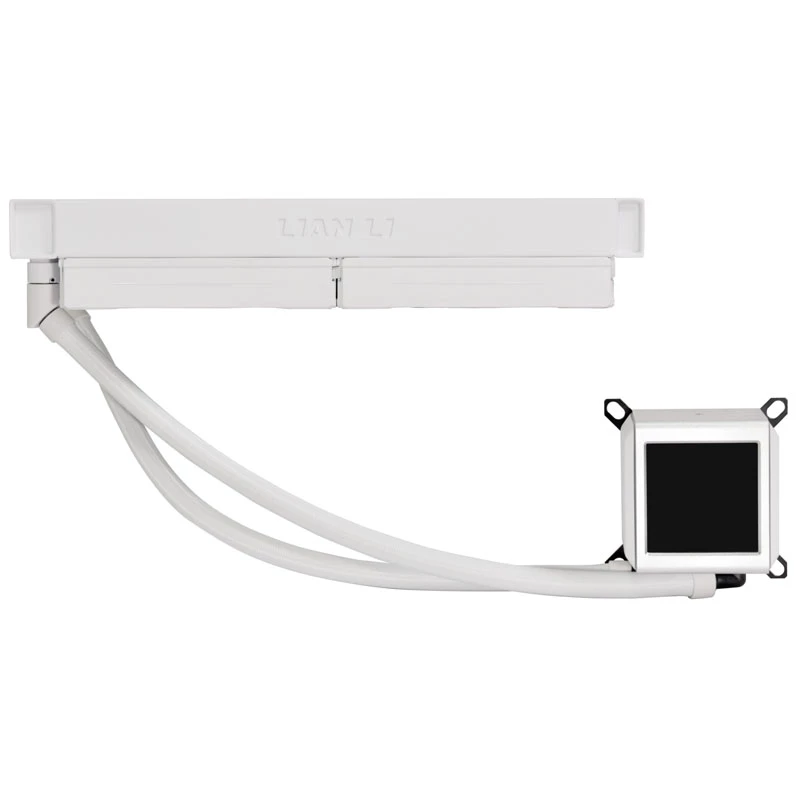

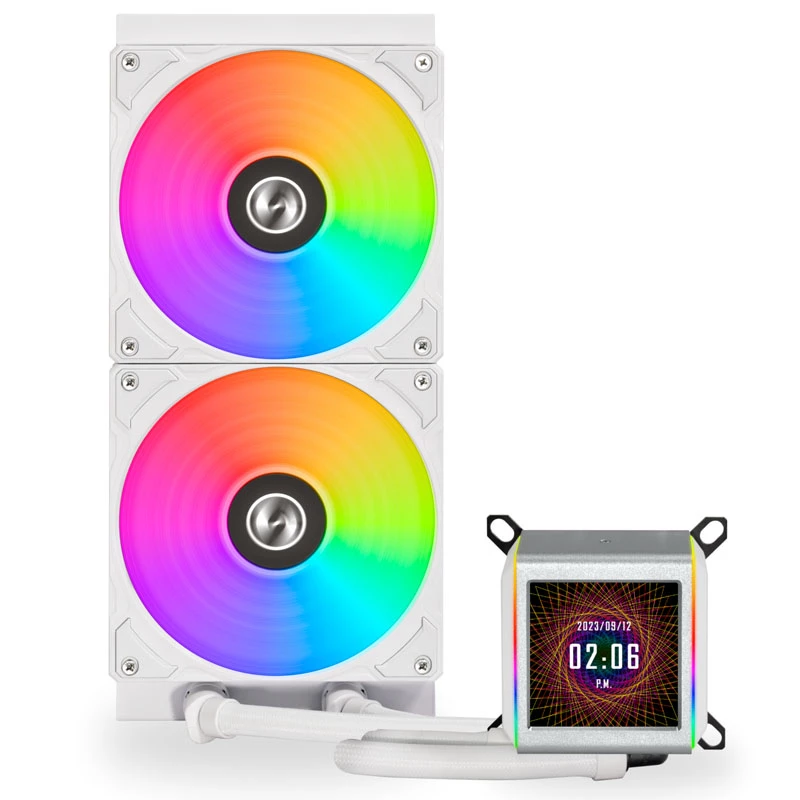

The Lian Li GA II LCD is a 120 mm liquid cooling kit in white, engineered to provide efficient CPU cooling for a wide range of Intel and AMD sockets. It includes a high-density 30 mm aluminum radiator with 20 FPI fins, an 8th Gen Asetek pump with an enlarged cold plate, and ARGB PWM fans that support daisy-chaining. The package also integrates L-Connect 3 software capabilities for screen capture, recording, and basic editing of captured media.

Advantages

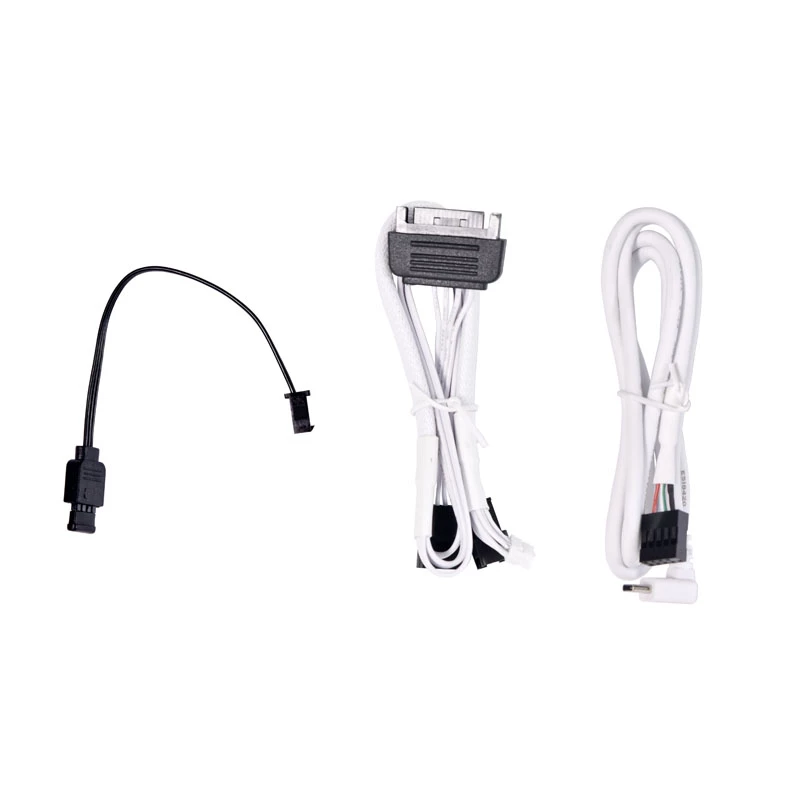

The 8th Gen Asetek pump uses a 3-phase motor capable of up to 3600 RPM, improving cooling performance while operating more quietly. The larger cold plate is optimized for modern Intel and AMD processors. The 30 mm radiator with single-wave fins and 20 fins per inch reduces airflow restriction to enhance thermal transfer. ARGB PWM fans support daisy-chaining with a short interconnect cable to simplify cable routing. L-Connect 3 enables screen recording and built-in editing before importing files.

Suitable for

• Desktop PC builds requiring a 120 mm liquid cooling solution
• Systems using Intel LGA 1700, LGA 1200, LGA 115x series sockets
• Systems using AMD Socket AM4 and AM5 processors
• Users who want ARGB lighting with simplified fan cabling

Key specifications

• Type: Liquid cooling kit
• Fan diameter: 120 mm
• Fan speed range: 200–2100 RPM
• Minimum air pressure: 2.66 mmH2O

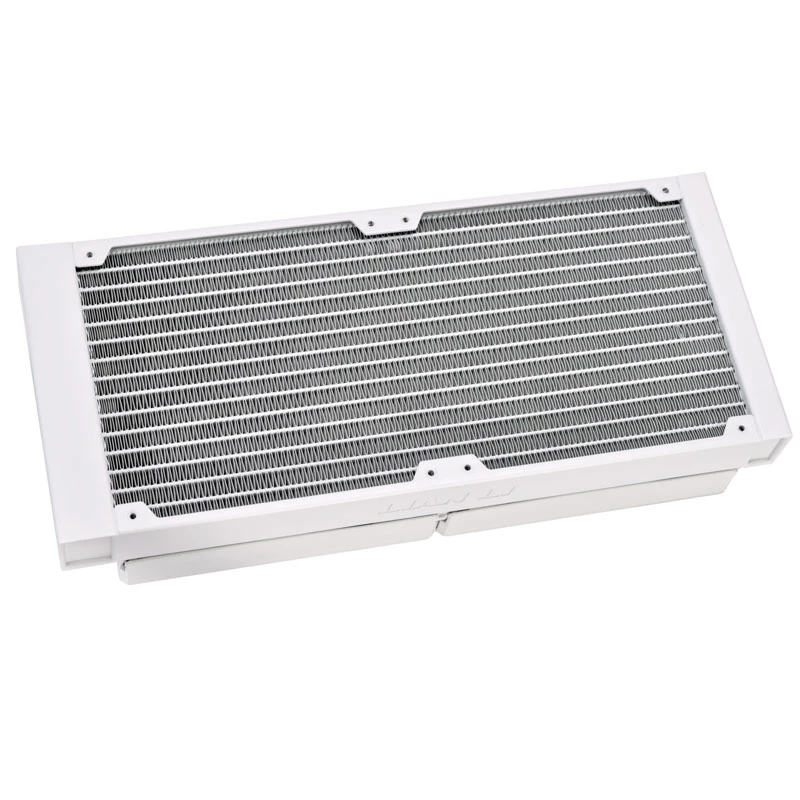

• Radiator thickness: 30 mm
• Radiator fins: 20 FPI, single-wave fins
• Pump: 8th Gen Asetek, 3-phase motor, up to 3600 RPM
• Supported sockets: Socket AM5, Socket AM4, LGA 1700, LGA 1200, LGA 1156, LGA 1155, LGA 1151, LGA 1150
• Product colour: White

How to use

Install the radiator and 120 mm fan according to your case layout and the mounting instructions supplied with the kit, then mount the pump/block onto the CPU using the appropriate bracket for your socket. Connect the ARGB PWM fans and pump to the motherboard or controller, using the included short daisy-chain cable to reduce visible cabling. Configure fan curves and RGB lighting through your motherboard software or L-Connect 3 where supported. If desired, use L-Connect 3 to record or capture screen content and perform basic edits before saving or exporting files.

Recommendations

Ensure compatibility with your case’s radiator clearance for a 30 mm radiator and verify available mounting points for a 120 mm fan. Use manufacturer-approved thermal paste and follow the provided installation guide for mounting on LGA and AM sockets. Maintain case airflow and periodically check fan and pump operation for optimal cooling performance.
