Schneider Electric plastová výustná mriežka Ø38mm sivá

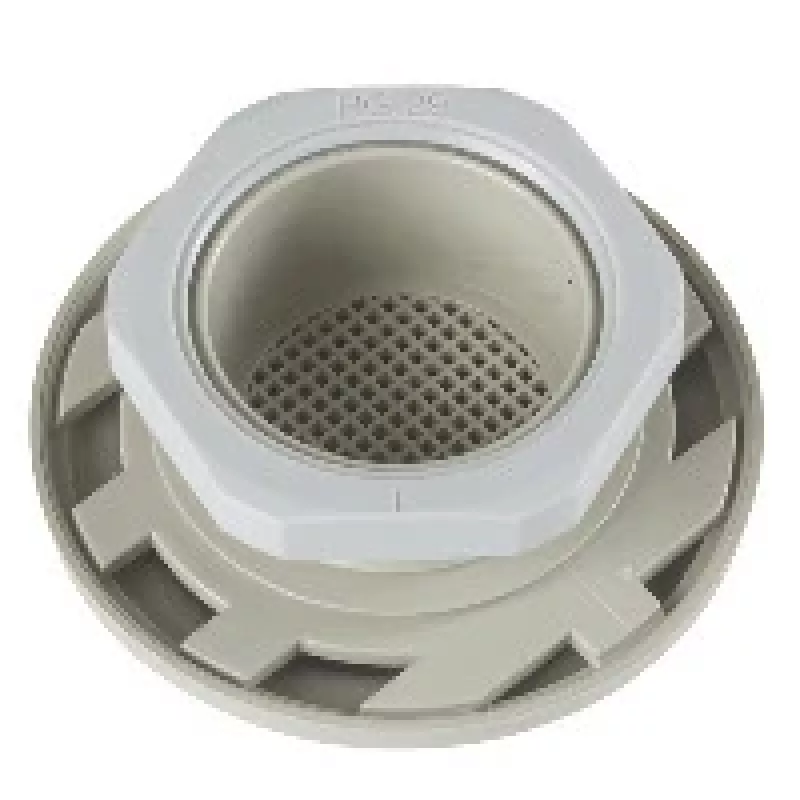

The Schneider Electric NSYCAG38LP is a high-quality plastic outlet grid designed for cable entry and exit protection in electrical enclosures. Manufactured from durable Polyamide 6 (PA6) in light grey (RAL 7035), this accessory ensures reliable performance and long service life. With a nominal diameter of 38 mm and a depth of 10 mm, it is compatible with M32 cable gland openings and snaps easily into place. Ideal for use with Thalassa PLM enclosure series, it offers UV resistance and self-extinguishing properties for enhanced safety.

Advantages

This outlet grid provides a secure and tidy cable management solution, preventing dust and debris from entering the enclosure. Its snap-in mounting simplifies installation, while the robust PA6 material withstands harsh industrial environments. The UV-resistant and self-extinguishing features ensure compliance with safety standards and long-term reliability.

Suitable for

• Cable entry and exit protection in electrical enclosures
• Ventilation openings in control cabinets
• Use with Thalassa PLM enclosure series
• Industrial and commercial applications requiring robust cable management

Key specifications

• Accessory Type: Outlet Grid
• Material: Polyamide 6 (PA6)
• Colour: Grey (RAL 7035)
• Nominal Diameter: 38 mm
• Depth: 10 mm
• Compatibility: M32 Cable Gland Opening
• Mounting Type: Snap-in
• Operating Temperature: -25 to 70 °C
• Storage Temperature: -40 to 80 °C
• UV Resistance: Yes
• Self-Extinguishing: Yes
• Standards: RoHS, REACH

Recommendations

For optimal performance, ensure the outlet grid is correctly snapped into the M32 opening. Pair with compatible Thalassa PLM enclosures for a complete solution. Always verify compatibility with your specific enclosure model before installation.
