SIEMENS SENTRON 3VA rámová svorka balenie 3 ks pre 3VA1 100/160 MCCB 3VA91530JA11

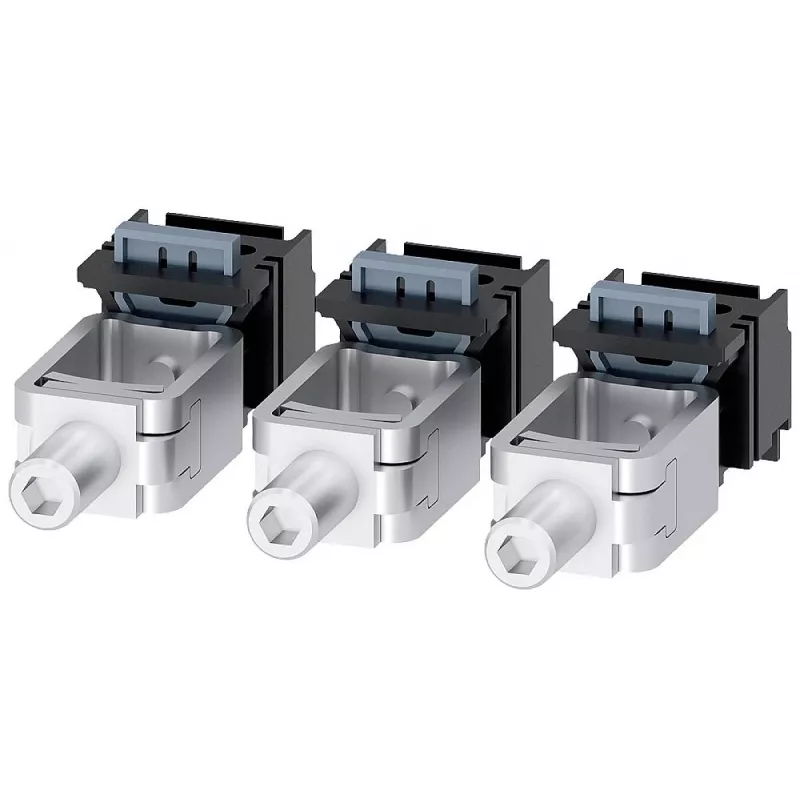

The SIEMENS 3VA9153-0JA11 frame terminal set provides a reliable main circuit connection for SENTRON 3VA1 molded case circuit breakers in 100 A and 160 A frame sizes. Supplied as a pack of three, it suits both 3-pole and 4-pole breakers, simplifying inventory for panel builders and maintenance teams.

Highlights

• Compatible with SIEMENS SENTRON 3VA1 MCCBs, 100 A and 160 A frames
• Three terminals per pack for 3-pole or 4-pole configurations
• Screw connection accepts flexible conductors 10–70 mm² and rigid conductors 10–95 mm²
• Copper conductor material for high conductivity and durability
• Rated for operational voltages up to 690 V AC

In daily use

These frame terminals mount directly inside the breaker housing, creating a secure and compact connection point for incoming or outgoing power cables. The screw-type clamping mechanism allows fast installation without special tooling, while the wide conductor range accommodates common industrial cable sizes.

Full specifications

• Product type: Frame terminal / connection terminal
• Accessory type: Connection accessory
• Compatibility: SIEMENS SENTRON 3VA1 molded case circuit breakers
• Compatible MCCB frame size: 100 A / 160 A
• Compatible MCCB poles: 3-pole, 4-pole
• Quantity per pack: 3 pieces
• Conductor material: Copper
• Connection method: Screw connection
• Conductor cross-section (flexible): 10 - 70 mm²
• Conductor cross-section (rigid): 10 - 95 mm²
• Application: Main circuit connection for MCCBs
• Series: SENTRON 3VA
• Mounting: Internal to MCCB
• Rated operational voltage (Ue): Up to 690 V AC
• Rated insulation voltage (Ui): 800 V
• Rated impulse withstand voltage (Uimp): 8 kV

Final note

Order the SIEMENS 3VA9153-0JA11 to ensure a precise fit and dependable performance in your 3VA1 breaker installations.
