SMA konektor samec na krimpovanie RG-174/RG-316 DeLOCK 90034

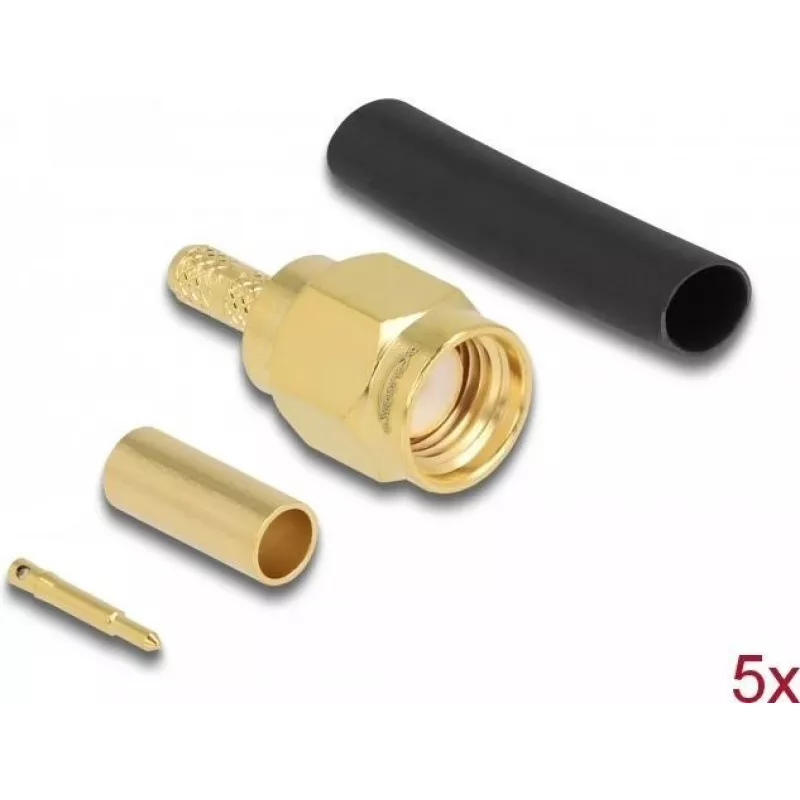

The DeLOCK SMA plug for crimping RG-174 and RG-316 cables is supplied with a matching shrink tube and is intended for connecting components in radio frequency technology. It has gold-plated contacts and a characteristic impedance of 50 Ω. The compact connector measures 8 mm × 18 mm × 8 mm and is sold in packs of five, providing multiple connectors for installation or repair work.

Advantages

Gold-plated contacts ensure reliable electrical conductivity and corrosion resistance. The included shrink tube provides strain relief and protects the cable termination for a neat, durable finish. The 50 Ω impedance matches standard RF systems, while the small dimensions make the connector suitable for space-constrained assemblies. Supplying five connectors per pack reduces the need to buy single pieces for multiple installations.

Suitable for

Key specifications

How to use

Prepare the RG-174 or RG-316 cable by stripping the outer jacket, braid and dielectric to the lengths required for the SMA crimp ferrule and center pin. Insert the center conductor into the gold-plated contact and crimp according to the connector manufacturer's crimping tool specification. Slide the ferrule over the prepared braid, crimp the ferrule to secure the braid and solder or secure the center contact if required. Position the provided shrink tube over the termination and apply heat to shrink it, creating strain relief and environmental protection.
