Stolová vŕtačka Einhell TE-BD 550 E, 450 W, B16 skľučovadlo, 450-2500 ot/min

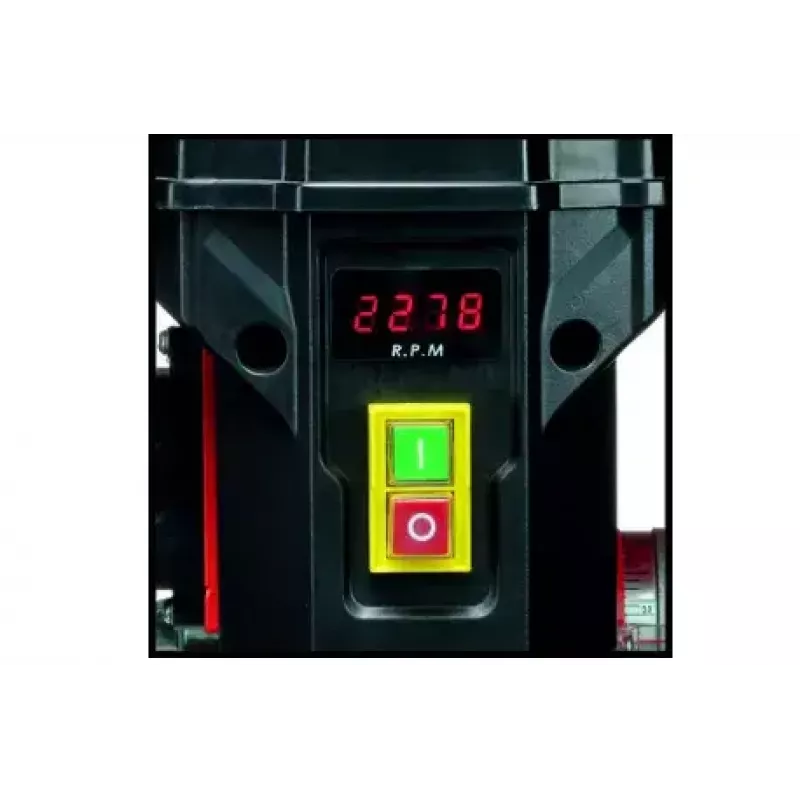

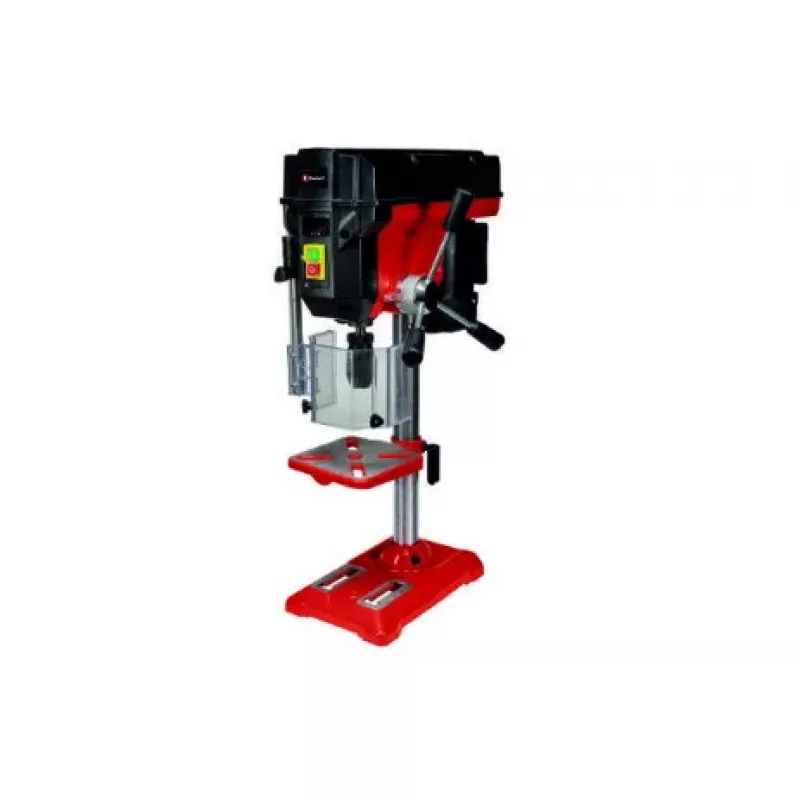

The Einhell TE-BD 550 E bench drill press is a precision tool for demanding drilling tasks. Equipped with a 450 W induction motor and a speed range of 450–2500 RPM, it enables accurate holes in materials such as wood and metal with a maximum drilling depth of 60 mm. The drill features an LCD display for monitoring the current speed, an infinitely adjustable tool-free speed control and a high-quality quick-change chuck that accepts drill bits from 0 to 13 mm. The tilting and height-adjustable drill table and the ball-bearing spindle ensure long service life and flexible operation.

Advantages

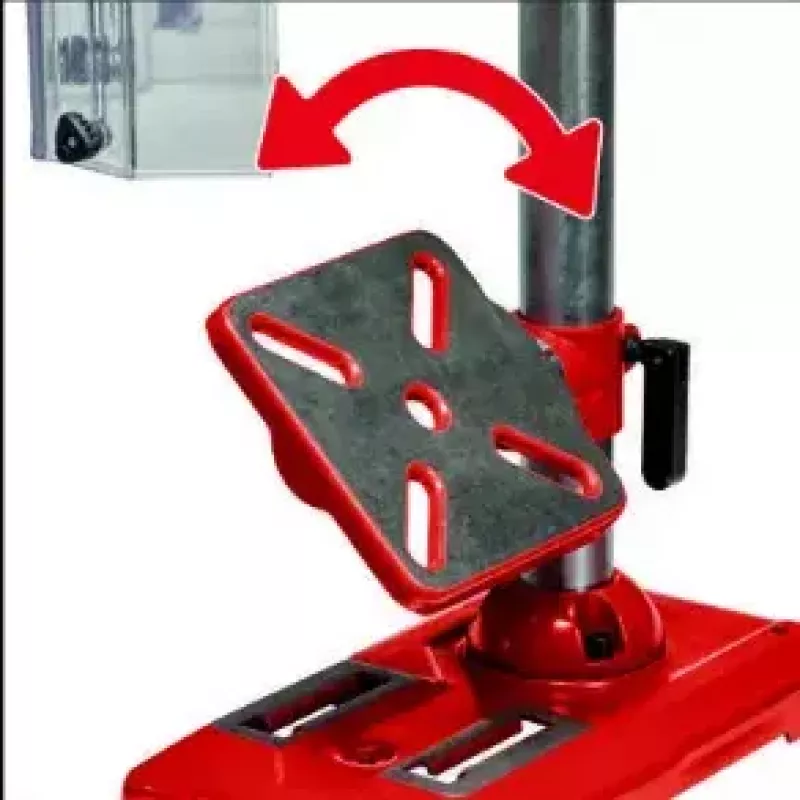

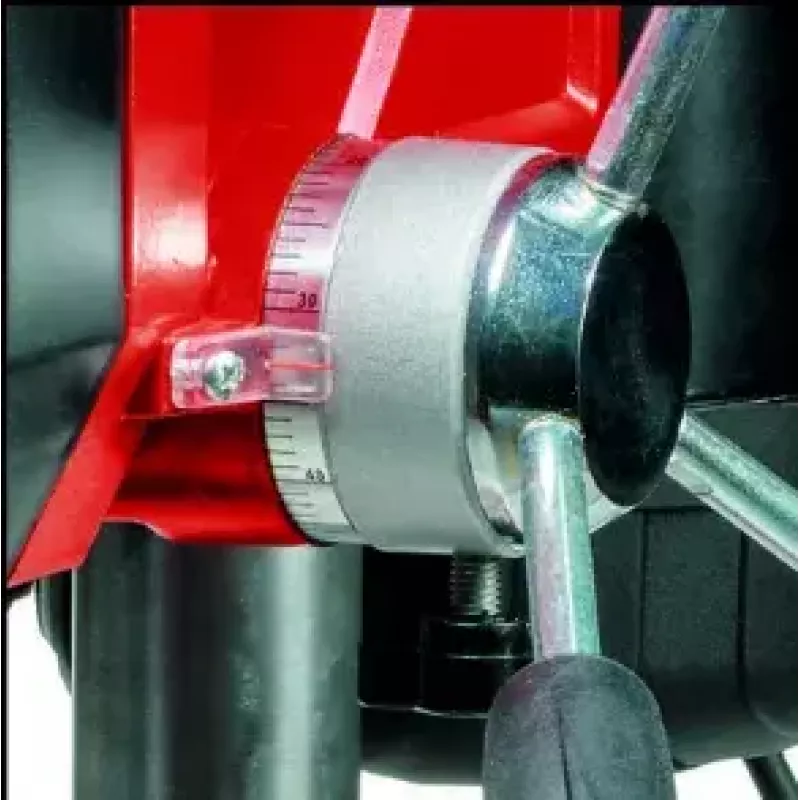

The induction motor provides quiet and smooth running for comfortable operation. The LCD display and stepless speed control allow precise speed setting for different materials. The quick-change chuck and B16 mount simplify bit changes and support common drill bits up to 13 mm. The table can be adjusted in height, tilted from -45° to 45° and swiveled for versatile drilling angles. Additional safety features include a folding chip guard with microswitch and an adjustable depth stop for series drilling.

Suitable for

• Drilling holes in wood
• Drilling holes in metal
• Repeated/series drilling with depth stop
• Work requiring adjustable drilling angles (tilting table)

Key specifications

• Power: 450 W
• Speed range: 450–2500 RPM
• Maximum drilling depth: 60 mm

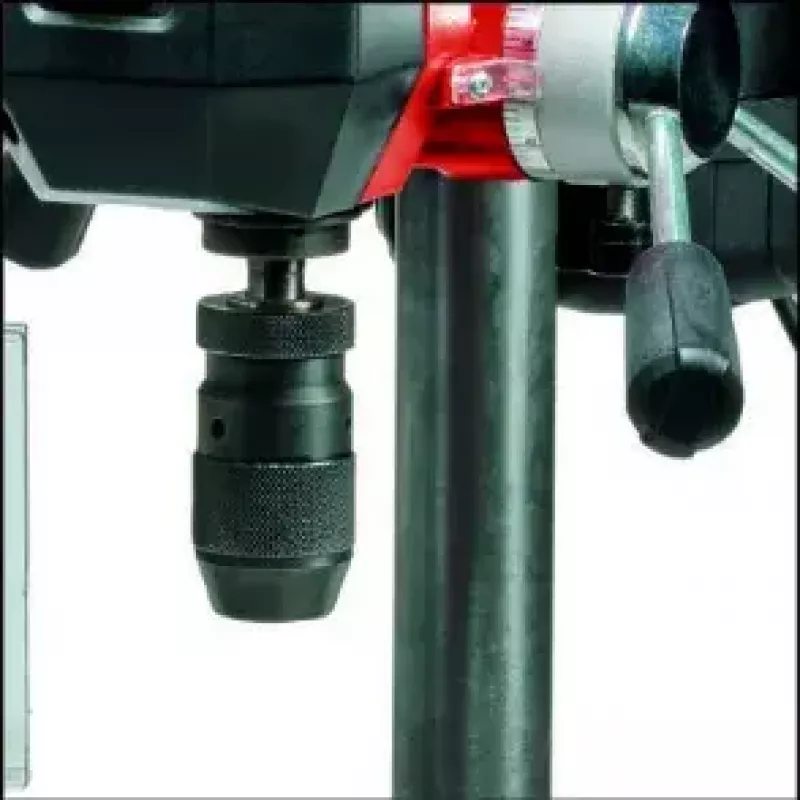

• Chuck capacity: 0–13 mm (quick-change chuck)
• Chuck mount: B16
• Table tilt: -45° to 45°
• Weight: 21.2 kg
• Product colour: Red
• EAN: 4006825634778

How to use

Secure the drill press to a stable workbench. Fit the desired drill bit in the quick-change chuck and tighten securely. Select the appropriate speed using the stepless control while monitoring the RPM on the LCD display. Adjust the table height and tilt to the required position; lock the table in place. Set the depth stop if repetitive drilling with a fixed depth is needed. Switch on the machine and bring the rotating bit to the workpiece, applying steady, even feed pressure. After finishing, switch off the drill and wait for the spindle to stop before removing the workpiece or changing bits.

Recommendations

Use appropriate personal protective equipment (safety glasses, hearing protection and dust mask where required). For metal drilling, use suitable cutting lubricant and select lower speeds for larger diameters. Regularly check and tighten the chuck and spindle fittings, and keep the chip guard in place during operation.
