Telegärtner STX DIN-lištový optický rozdeľovač, 6x SC duplex singlemode, 12-vláknová spájacia kazeta, pigtaily, pripravené na spájanie H82050E0002

12-fiber singletmode distribution with 6 SC duplex ports on a DIN-rail mount, pre-terminated with colored, splice-ready pigtails and an integrated splice cassette.

Overview

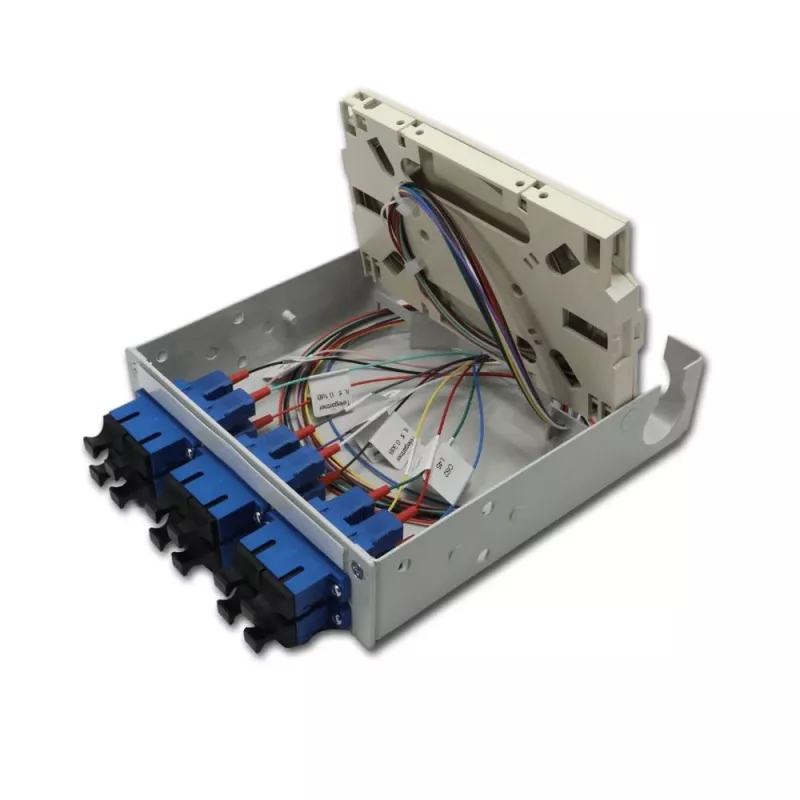

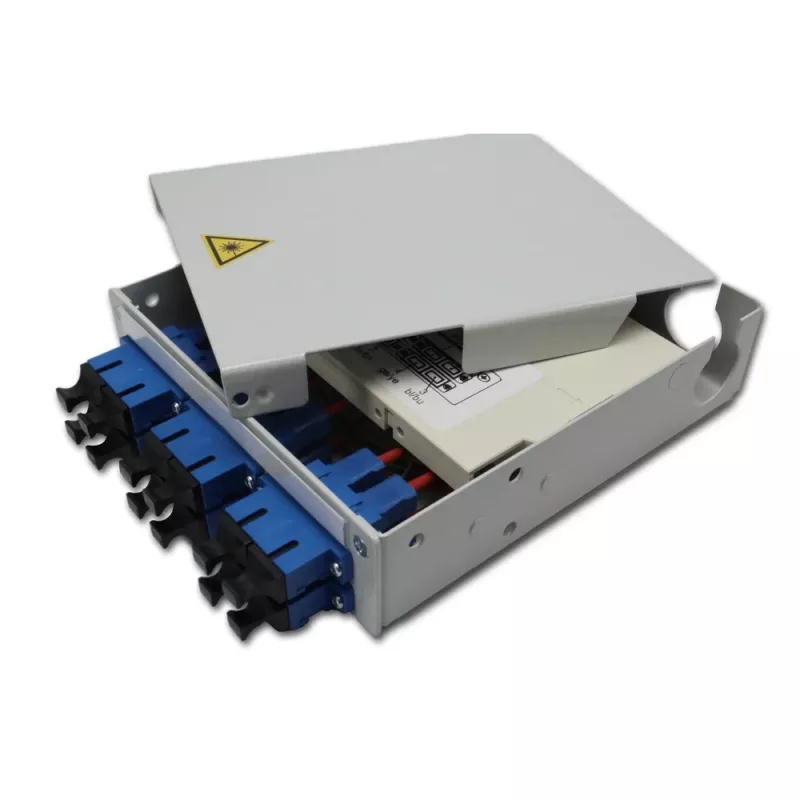

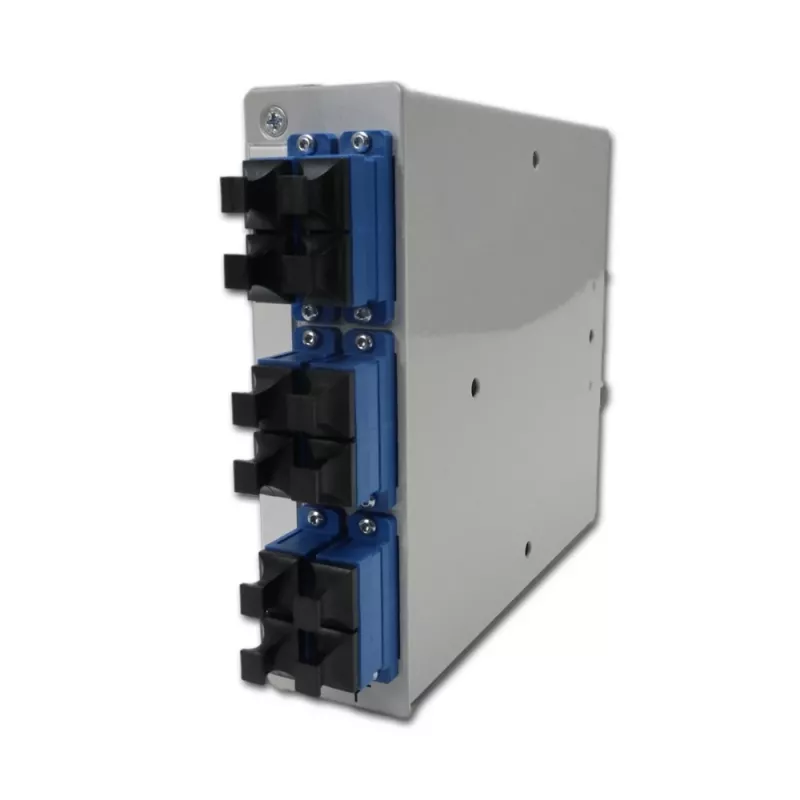

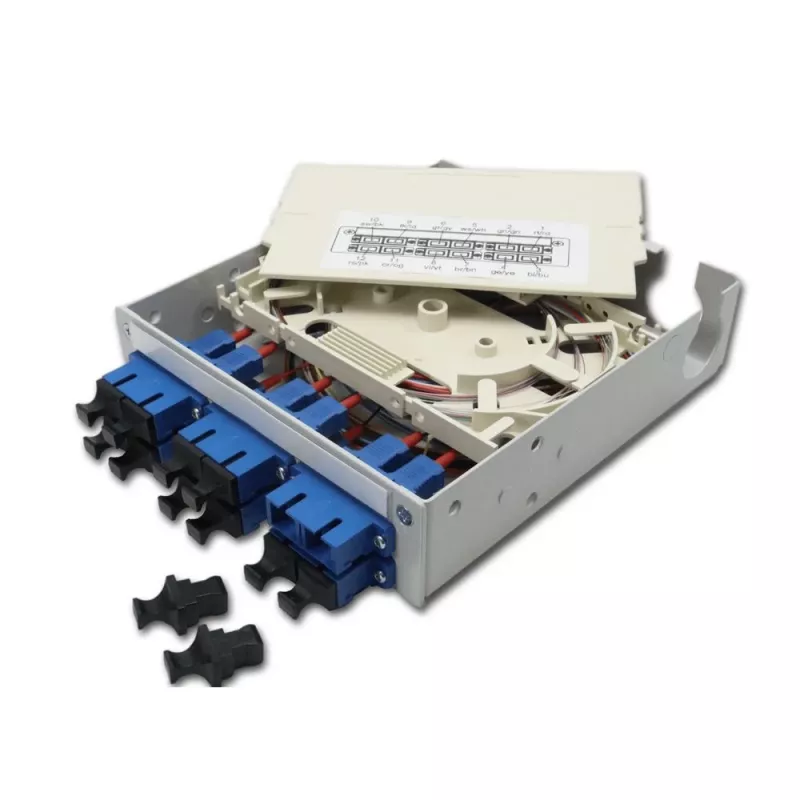

The Telegärtner STX H82050E0002 is a compact fiber optic distribution unit designed for DIN rail (TS35) installation. It provides six SC duplex front panel ports, supporting a total of 12 singlemode fibers (E9/125 µm). The unit includes a splice cassette and 12 pigtails with SC connectors, pre-colored and prepared for splicing. The housing is made of powder-coated steel in light grey (RAL 7035), suitable for industrial automation, building cabling, and data center applications.

What stands out

• 12-fiber capacity with 6 SC duplex ports
• Singlemode E9/125 µm fiber
• Integrated splice cassette and 12 splice-ready pigtails
• DIN rail mounting for easy integration
• Robust steel housing with IP20 protection

Technical details

• Product type: Fiber optic distributor / enclosure
• Mounting: DIN rail TS35
• Front panel connector: SC duplex
• Number of duplex ports: 6
• Total fiber capacity: 12
• Fiber mode: Singlemode
• Fiber core/cladding: E9/125 µm
• Pigtails included: Yes, 12x SC, colored, splice-ready
• Splice cassette included: Yes
• Housing material: Powder-coated steel
• Housing color: Light grey (RAL 7035)
• Protection class: IP20
• Operating temperature: -20°C to +70°C

Our verdict

A reliable DIN-rail fiber distribution solution for singlemode networks, offering convenient splicing and clear port organization in a compact form factor.
