Televes 1/6 domový zosilňovač 553120

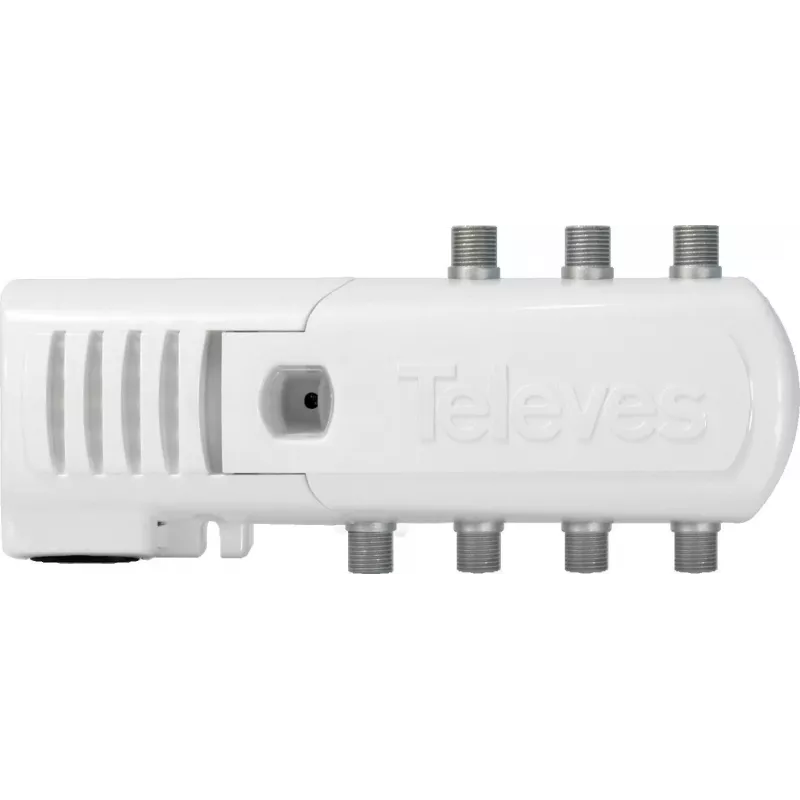

The Televes 1/6 Home Amplifier (ref. 553120) is a compact indoor distribution amplifier designed to boost terrestrial TV signals while passing through satellite signals. Ideal for single-dwelling installations with up to 6 TV outlets.

Advantages

Low noise figure (4.5 dB) ensures minimal signal degradation. SAT pass-through on one output allows simultaneous satellite reception. Energy-efficient with <3 W power consumption.

Suitable for

• Home TV distribution systems
• Small apartment buildings
• Single-family houses with multiple TV points

Key specifications

• Input: 1 x Mixed TV/SAT (F-type)
• Outputs: 6 x TV (Terrestrial) + 1 x SAT pass-through
• Frequency range: 47-694 MHz
• Gain: 12 dB
• Noise figure: 4.5 dB
• Max output level: 105 dBµV
• Impedance: 75 Ohm
• Power supply: 230 V AC, 50/60 Hz
• Power consumption: <3 W
• Shielding factor: >50 dB
• Indoor use only

Recommendations

For optimal performance, use high-quality F-type connectors and ensure proper grounding. This amplifier is not suitable for return path applications.
