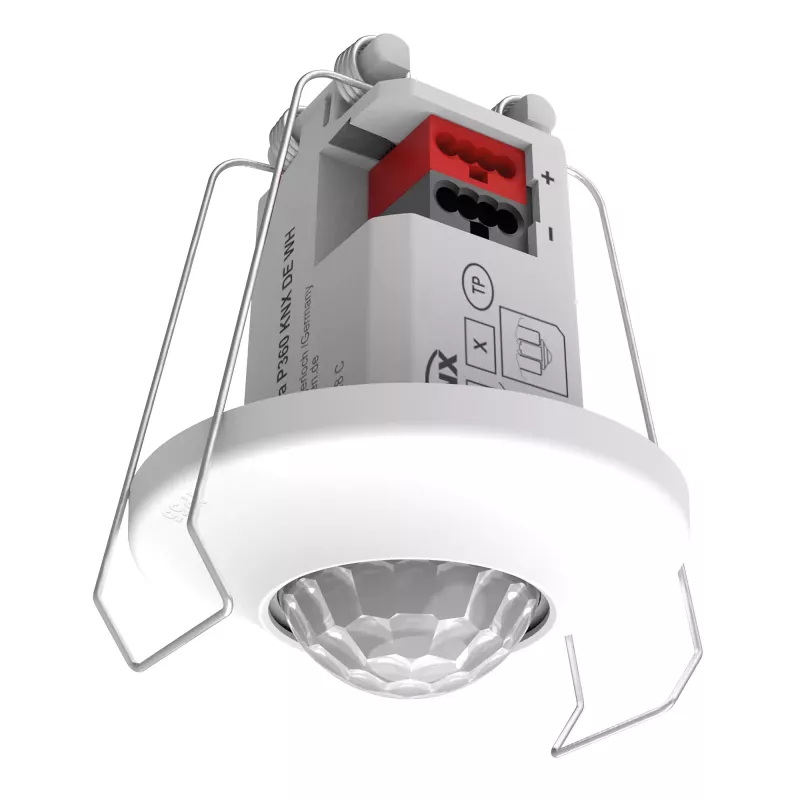

Theben Piccola P360 KNX DE WH mini snímač prítomnosti, stropná montáž, biela (2099200)

In open-plan offices, meeting rooms, and corridors, the Theben Piccola P360 KNX DE WH presence detector provides automatic lighting and HVAC control based on occupancy and ambient light. Its discreet ceiling-mounted design blends into modern interiors while delivering reliable presence detection.

Key specifications

• KNX bus system for building automation integration
• Passive infrared (PIR) sensor with 360° detection angle
• Detection range: Ø 8 m at 3 m mounting height
• Light sensor range: 10–2000 lux
• Three channels: light, presence, HVAC
• White housing (RAL 9010), UV-stabilised polycarbonate
• Flush ceiling mounting, installation diameter 45 mm
• Visible height from ceiling: 10 mm
• Operating voltage: KNX bus 21–32 V DC, power consumption 0.3 W
• Configuration via ETS software

Why choose it

The Piccola P360 KNX DE WH offers precise presence detection and constant light control in a compact, unobtrusive form factor. Its KNX connectivity ensures seamless integration into intelligent building systems, enabling energy savings and enhanced comfort.

Ideal use cases

• Office lighting and HVAC automation
• Meeting room occupancy control
• Corridor and stairwell lighting management
• Integration into KNX smart building projects

Good to know

Recommended installation height is 2.5 m, with a range of 2–3.5 m. The detector is designed for indoor use only and operates in temperatures from -15 °C to +50 °C.
