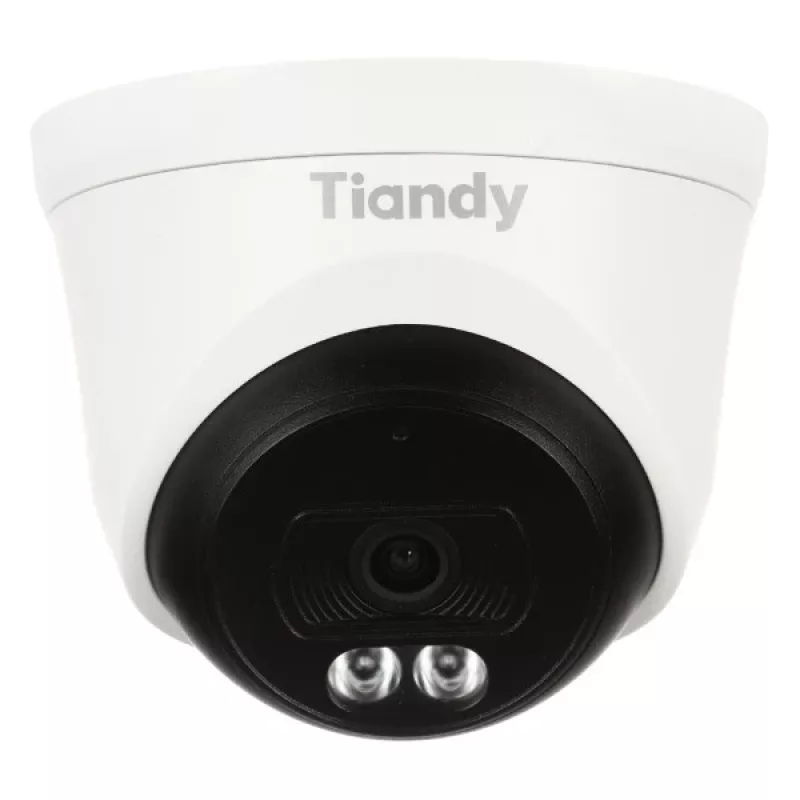

TIANDY TC-C34XN 2GNA-28 Spark Series 2,8mm 4MP IP Mini Dome kamera

The TIANDY TC-C34XN 2GNA-28 Spark Series is a high-performance 4MP IP mini dome camera designed for reliable indoor and outdoor surveillance. Featuring a 2.8mm fixed lens with a 98.6° horizontal field of view, this camera delivers crisp 2560x1440 resolution at 25/30fps. With 120dB Super WDR, 0.002 lux minimum illumination, and IR night vision up to 30m, it ensures clear images in challenging lighting conditions. The IP67 weatherproof and IK10 vandal-resistant metal housing guarantees durability in harsh environments. Powered by DC 12V or PoE (IEEE 802.3af), it supports H.265/H.264/MJPEG compression, built-in microphone, microSD storage up to 512GB, and intelligent analytics including motion detection, tripwire, and intrusion detection.

Advantages

Exceptional image quality with 4MP resolution and 120dB WDR for high-contrast scenes. Robust metal construction with IP67 and IK10 ratings ensures long-term reliability. Flexible power options (DC12V/PoE) simplify installation. Advanced analytics reduce false alarms and enhance security monitoring.

Suitable for

• Retail stores and offices
• Warehouses and logistics centers
• Schools and public buildings
• Parking lots and outdoor perimeters
• Residential properties

Key specifications

• Image Sensor: 1/2.8" Progressive Scan CMOS
• Max Resolution: 2560x1440 (4MP)
• Lens: 2.8mm fixed, F1.6
• Horizontal FOV: 98.6°
• IR Range: Up to 30m
• Video Compression: H.265/H.264/MJPEG
• WDR: 120dB Super WDR
• Min Illumination: 0.002 Lux (color), 0 Lux (IR)
• Power: DC 12V / PoE (802.3af), max 5.5W
• Ingress Protection: IP67
• Vandal Resistance: IK10
• Local Storage: microSD up to 512GB
• Audio: Built-in microphone
• Network: 1x RJ45 10/100M Ethernet
• Smart Features: Motion detection, tripwire, intrusion, object left/removed
• Operating Temperature: -35°C to 65°C
• Housing Material: Metal
• Form Factor: Mini Dome

Recommendations

For optimal performance, use a PoE switch or injector (IEEE 802.3af compliant). Ensure the microSD card is high endurance (Class 10 or UHS-I). Mount the camera at a height of 2.5-3m for best coverage.
