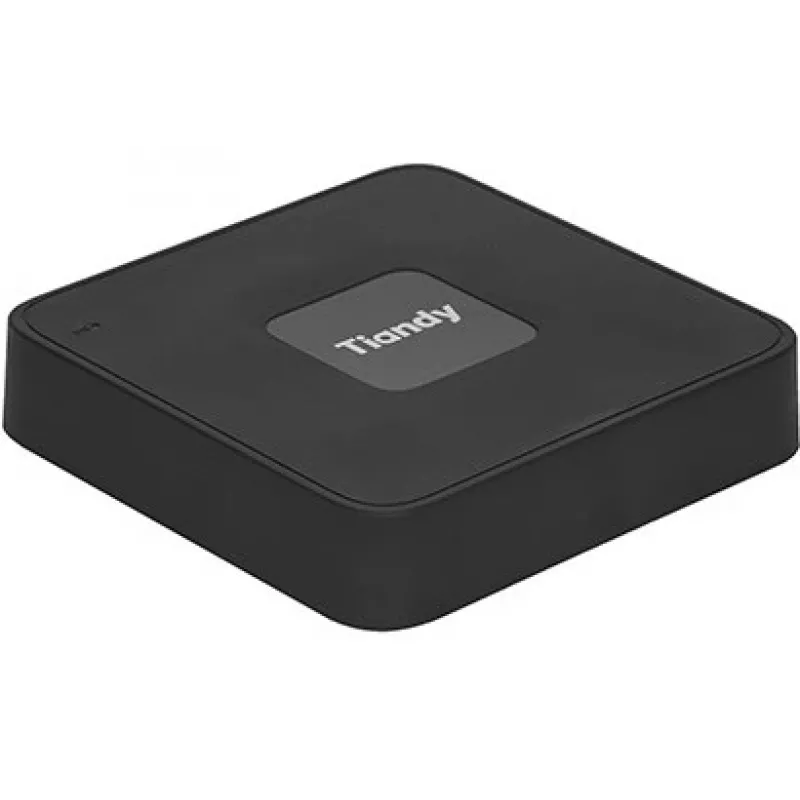

Tiandy TC-R3110 10-kanálový Lite-N IP rekordér, 8MP, H.265, 1 SATA, desktop

The Tiandy TC-R3110 is a high-performance 10-channel Lite-N IP recorder designed for small to medium-sized surveillance systems. Supporting up to 8MP resolution and advanced S+265/H.265/H.264 compression, it delivers efficient video recording and playback. With 60 Mbps incoming bandwidth, smart analytics, and a compact desktop form factor, this NVR is ideal for retail shops, offices, and residential applications.

Advantages

• 10-channel IP video input with 8MP max recording resolution
• Advanced video compression (S+265/H.265/H.264) reduces storage and bandwidth
• Smart analytics: tripwire, perimeter, face detection (Tiandy VCA)
• ANR (Automatic Network Replenishment) ensures recording continuity
• Low power consumption (<10W without HDD) and compact desktop design

Suitable for

• Small to medium businesses (retail, offices, warehouses)
• Residential surveillance systems
• Projects requiring up to 10 IP cameras with high-resolution recording
• Applications needing smart analytics for security alerts

Key specifications

• Video Input: 10 channels IP
• Max Recording Resolution: 8MP (3840x2160)
• Video Compression: S+265 / H.265 / H.264
• Incoming Bandwidth: 60 Mbps
• Outgoing Bandwidth: 40 Mbps
• HDMI Output: 1x (up to 4K)
• VGA Output: 1x (up to 1080p)
• Synchronous Playback: 10 channels
• Audio: 1x RCA input, 1x RCA output
• SATA HDD: 1x port, up to 10 TB
• Network: 1x RJ45 10/100 Mbps Ethernet
• USB: 2x USB 2.0
• Power: DC 12V, <10W (without HDD)
• Operating Temperature: -10°C to 55°C
• Smart Analytics: Tripwire, Perimeter, Face Detection
• Form Factor: Desktop

Recommendations

For optimal performance, pair with Tiandy IP cameras and use a high-quality HDD (up to 10 TB). Ensure network stability for ANR functionality.
