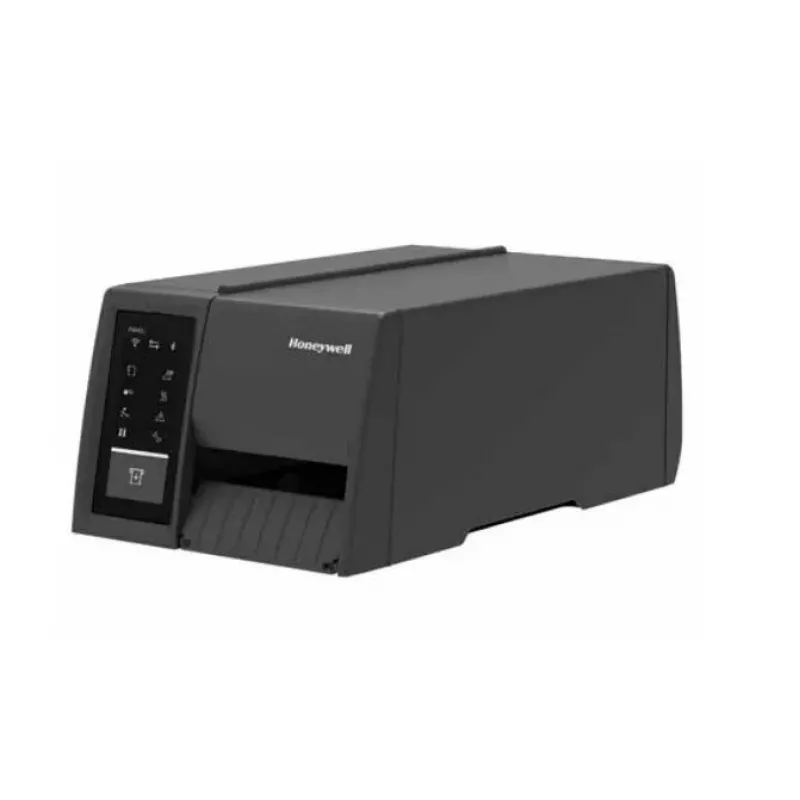

Tlačiareň etikiet Honeywell PM45 Compact termálna priama 203 x 203 DPI 350 mm/s káblová & bezdrôtová Ethernet LAN Wi‑Fi Bluetooth

The Honeywell PM45 Compact direct thermal label printer delivers reliable high-volume printing with industrial-grade durability. Built on Honeywell's print platform, the PM45 supports a maximum resolution of 203 x 203 DPI and print speeds up to 350 mm/s (14 ips), making it suitable for barcode, text and image labels used in warehousing, logistics, manufacturing, retail and pharmaceutical environments. The printer supports wired and wireless connectivity (Ethernet LAN, Wi‑Fi, Bluetooth) and can be expanded with RFID and various industrial interfaces for flexible integration into local or cloud-based systems.

Advantages

The PM45 offers precise print registration (up to ±0.5 mm) for reliable output on small components and medical device labels. Enhanced WWAN connectivity and support for multiple network protocols and print languages simplify deployment across different site topologies. Embedded Smart Parse software enables label formatting changes—positioning, sizing and fonts—without backend reprogramming, while Operational Intelligence allows remote monitoring and diagnostics. The rugged all-metal print mechanism and tool-free platen roller and printhead replacement reduce downtime. It accepts a wide range of media, including 1-inch core ribbons, to extend time between media resupplies.

Suitable for

• On-demand label printing in warehouses and distribution centres
• Logistics and parcel labeling
• Retail shelf and price labeling
• Manufacturing production line and component marking
• Pharmaceutical and medical device labeling requiring precise registration

Key specifications

• Technology: Direct thermal
• Resolution: 203 x 203 DPI
• Maximum print speed: up to 350 mm/sec (approximately 14 ips)
• Connectivity: Wired (Ethernet LAN) and Wireless (Wi‑Fi, Bluetooth); optional WWAN/RFID/interfaces
• Print registration accuracy: up to ±0.5 mm
• Media support: wide range including ink-in and ink-out ribbons with 1-inch core
• Durability: rugged all-metal print mechanism
• Manufacturer / MPN: Honeywell, PM45CA0000000210

How to use

Install the PM45 on a stable surface and connect power and the required network interface (Ethernet, Wi‑Fi or Bluetooth). Load media according to the user guide and configure print parameters—resolution, speed and label size—using the printer control panel or web interface. If integrating with a back-end system, select the appropriate print language and network protocol supported by your environment. Use Smart Parse to adjust label layout or barcode sizing without changing back-end code. For remote management, enable Operational Intelligence and configure monitoring settings.

Recommendations

For reliable long-term operation, use manufacturer-recommended media and ribbons, perform periodic cleaning of the printhead and platen roller, and keep firmware up to date. When deploying across multiple sites, verify network settings and enable remote monitoring to reduce maintenance response time.
