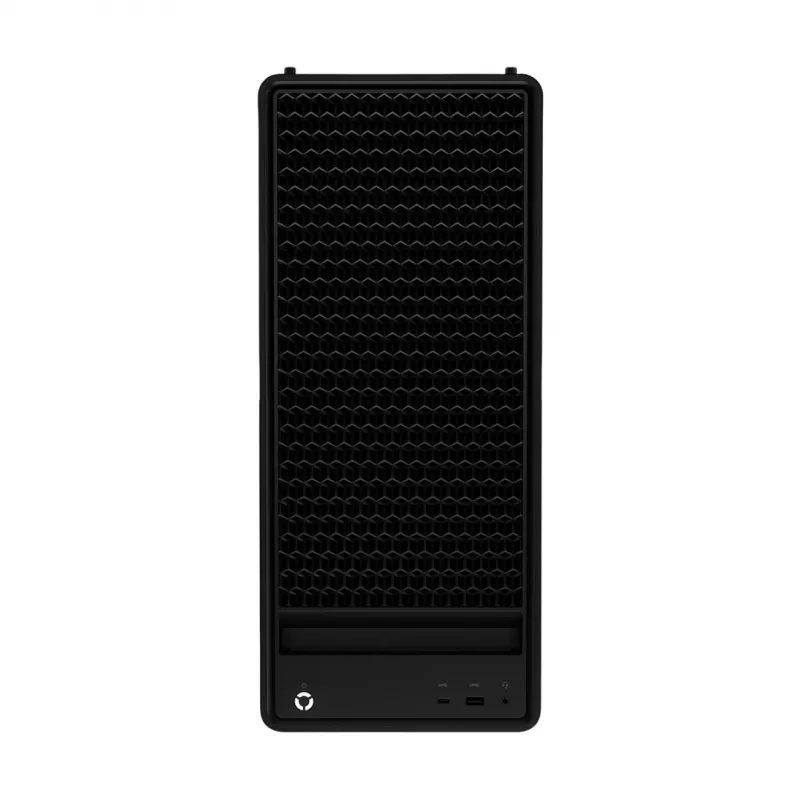

Tower PC Lenovo Legion T5 30IAX10 — Intel Core Ultra 7 255HX, 32 GB DDR5, 2 TB SSD, NVIDIA GeForce RTX 5070, Windows 11 Home

Lenovo Legion T5 30IAX10 is a tower PC configured for high-performance gaming and content creation. It is powered by an Intel Core Ultra 7 255HX processor with 20 cores (8 performance + 12 efficient) and up to 5.2 GHz turbo, paired with an NVIDIA GeForce RTX 5070 discrete GPU with 12 GB GDDR7 memory. The system includes 32 GB DDR5-5600 (2 x 16 GB), a 2 TB NVMe PCIe 4.0 M.2 SSD, Wi‑Fi 7 and Bluetooth 5.4, an 850 W power supply, and Windows 11 Home. The chassis is a compact 30 L tower in Eclipse Black and supports TPM and modern I/O for desktop workflows.

Advantages

The configuration combines a high-core-count Intel Core Ultra 7 255HX CPU with a capable NVIDIA GeForce RTX 5070 discrete GPU, providing strong multi-threaded and graphics performance. Fast DDR5 memory and a 2 TB PCIe 4.0 NVMe SSD ensure responsive system performance and ample local storage. Modern connectivity includes Wi‑Fi 7, Bluetooth 5.4 and multiple USB and DisplayPort interfaces, while the 850 W power supply supports sustained workloads. The compact tower design balances expandability and a small footprint.

Suitable for

• High-end gaming and VR
• Video editing, 3D rendering and content creation
• Multitasking and developer workstations
• Machine learning inference and AI-accelerated tasks

Key specifications

• Processor: Intel Core Ultra 7 255HX, 20 cores (8 performance + 12 efficient), up to 5.2 GHz turbo, 30 MB cache, 20 threads, base power 55 W, max turbo power 160 W
• Graphics: NVIDIA GeForce RTX 5070 discrete GPU with 12 GB GDDR7; integrated Intel graphics present
• Memory: 32 GB DDR5-5600 (2 x 16 GB), expandable up to 64 GB
• Storage: 2 TB NVMe PCIe 4.0 M.2 SSD (total SSD capacity 2 TB)
• Network: Wi‑Fi 7 (802.11be) 2x2, Bluetooth 5.4, Gigabit Ethernet
• Power supply: 850 W, input 100–240 V, 50/60 Hz
• Chassis: Tower, volume 30 L, colour Eclipse Black; dimensions W 211 mm × H 414 mm × D 490.4 mm; weight 15 kg
• Operating environment: operating temperature 5–35 °C, operating altitude up to 3048 m, relative humidity 20–80%
• Software: Windows 11 Home, 64-bit
• NPU & AI: Intel AI Boost NPU up to 13 TOPs, total processor AI up to 33 TOPs, GPU AI up to 8 TOPs, WebNN support, sparsity support
• Audio: High Definition Audio with Realtek ALC623
• Ports: USB 3.2 Gen 2x2 Type-C ×1, USB 3.2 Gen1 Type-C ×1, USB 3.2 Gen1 Type-A ×3, USB 2.0 ×4, DisplayPort ×1, combo headphone/mic, RJ-45 Ethernet

How to use

Set the tower on a stable, well-ventilated surface and connect the power supply to a properly grounded outlet (100–240 V, 50/60 Hz). Install a display via DisplayPort or a compatible USB-C port, connect peripherals to the available USB ports and set up network connections using Wi‑Fi 7 or Ethernet. Follow Windows 11 initial setup to configure user accounts and drivers; use the provided storage and memory configuration as-is or expand RAM and add storage through accessible internal M.2/drive bays if required. Ensure system firmware and GPU drivers are kept up to date for optimal performance.

Recommendations

Place the PC in a location with at least several centimetres of clearance on all sides for airflow, keep ambient temperature within the operating range (5–35 °C), and dispose of the product at specialised electronic waste facilities when decommissioned. For sustained heavy loads, use adequate cooling and ensure the 850 W power supply meets your planned upgrade requirements.
