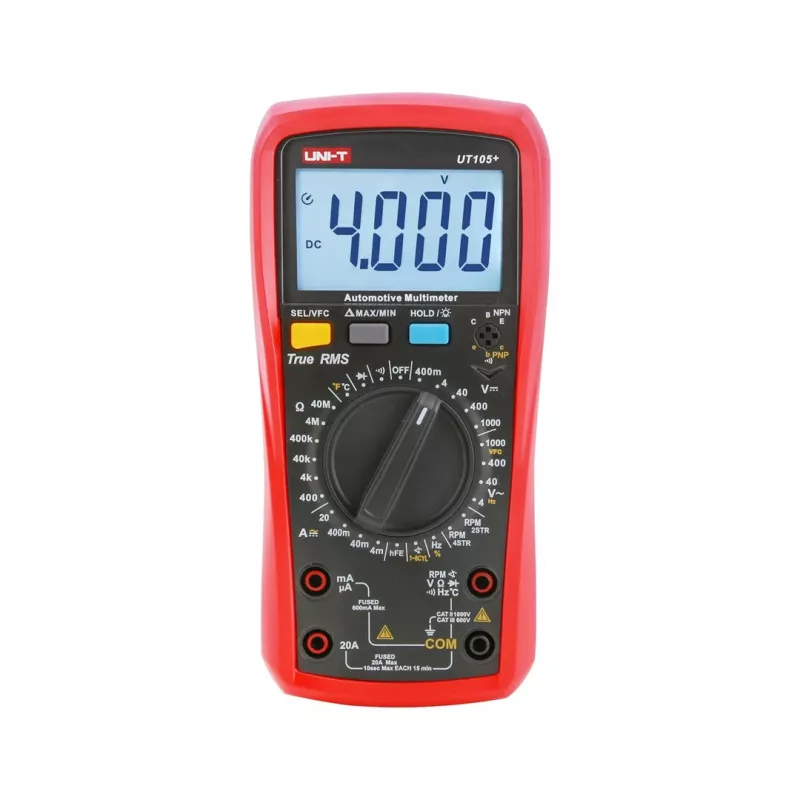

UNI-T UT105+ automobilový digitálny multimeter s True RMS, 6000 Counts, CAT III 600V

The UNI-T UT105+ is a professional-grade digital multimeter engineered for automotive diagnostics and general electronics, delivering True RMS accuracy across a 6000-count display. With a CAT III 600V safety rating and a wide array of measurement functions including RPM, dwell angle, and pulse width, it is an indispensable tool for technicians and serious hobbyists.

Overview

Built on UNI-T's legacy of reliable test instruments, the UT105+ combines robust construction with advanced functionality. It measures AC/DC voltage up to 1000V/750V, AC/DC current up to 10A, resistance up to 60MΩ, capacitance up to 100mF, frequency up to 10MHz, and temperature from -40°C to 1000°C. Auto ranging and a clear backlit display ensure ease of use in any environment.

What stands out

• True RMS for accurate readings on non-sinusoidal waveforms
• Special automotive functions: RPM, dwell angle, and pulse width
• CAT III 600V and CAT II 1000V safety ratings
• 6000-count display with backlight for low-light conditions
• Data hold, diode test, and continuity buzzer

Technical details

• Display count: 6000
• DC voltage: 1000V
• AC voltage: 750V
• DC current: 10A
• AC current: 10A
• Resistance: 60MΩ
• Capacitance: 100mF
• Frequency: 10MHz
• Temperature: -40°C to 1000°C (-40°F to 1832°F)
• Power: 9V battery (6F22)
• Dimensions: 190mm x 90mm x 50mm (approx.)
• Weight: 350g (approx.)

Our verdict

The UNI-T UT105+ delivers exceptional value for automotive professionals and electronics enthusiasts alike. Its specialized automotive functions and high safety ratings make it a versatile and reliable companion for demanding diagnostic tasks.
