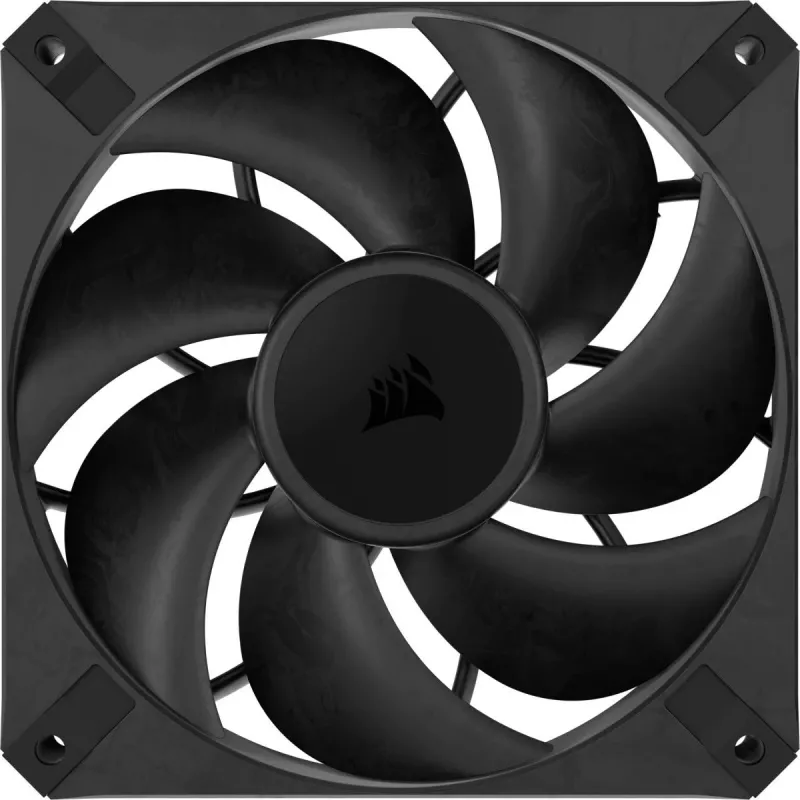

Ventilátor Corsair RS120 MAX 12 cm čierny 2000 RPM 3 kusy

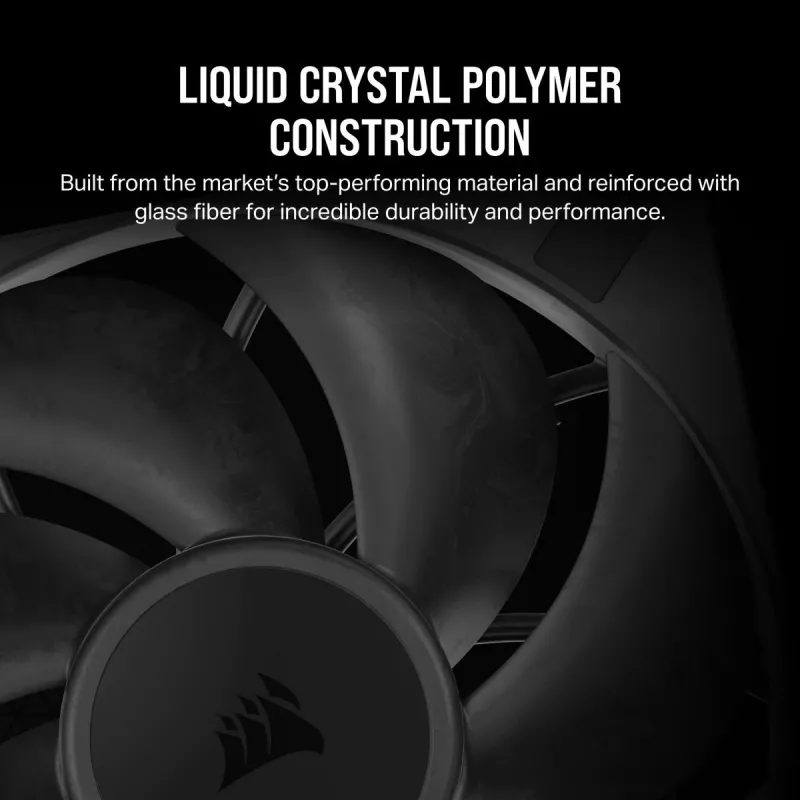

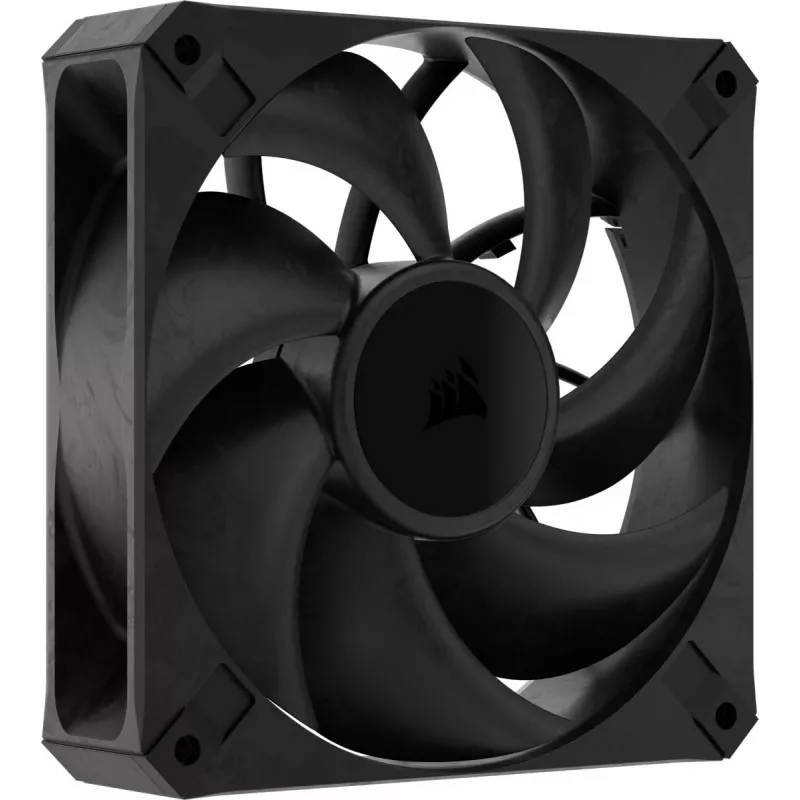

The Corsair RS120 MAX 120 mm fan delivers increased cooling power through a thicker 30 mm frame and enlarged blade design. With a maximum speed of 2000 RPM and black finish, this 3-piece set is intended for use as case or radiator fans to improve airflow and maintain component temperatures. The fan is built from glass fiber–reinforced liquid crystal polymer for blade rigidity and uses Corsair AirGuide anti-vortex stator vanes plus a Magnetic Dome Bearing to balance strong airflow, static pressure, and reduced noise.

Advantages

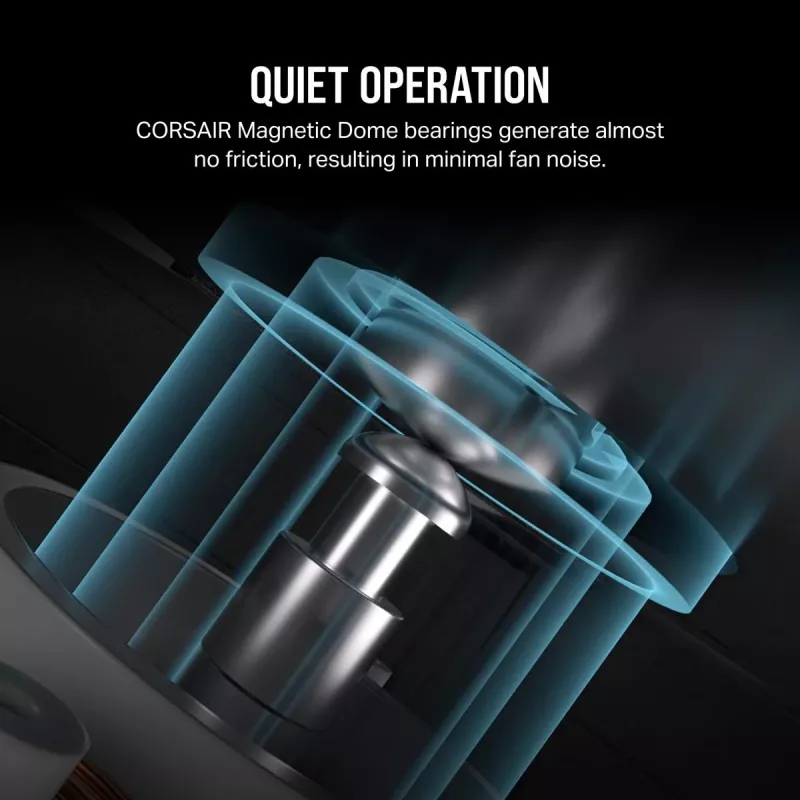

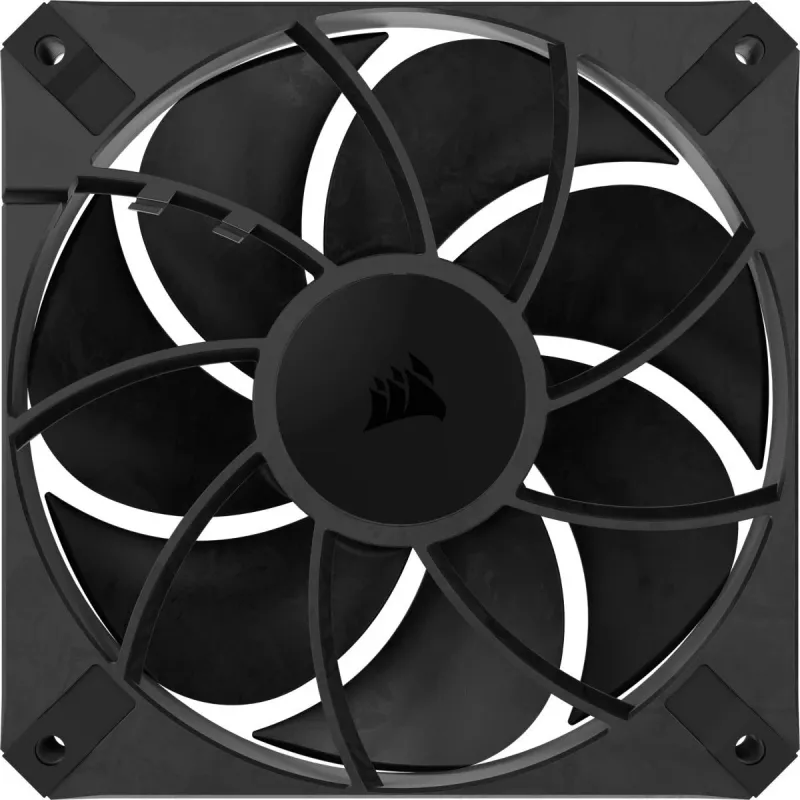

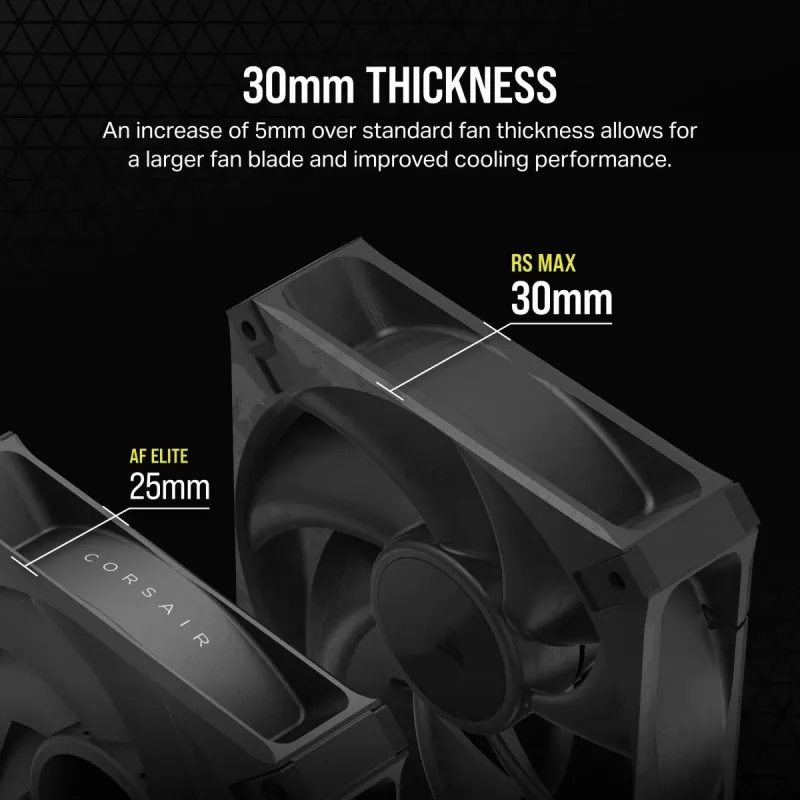

The thicker 30 mm housing and optimized blade shape provide higher airflow and greater static pressure compared with standard 25 mm fans, making the RS120 MAX effective both on radiators and inside PC cases. The rigid LCP blades resist bending under load, ensuring consistent performance across fan speeds. Anti-vortex stator vanes concentrate airflow into a tight cone for more efficient cooling, while the Magnetic Dome Bearing lowers friction and mechanical noise for improved acoustics and durability.

Suitable for

• Case cooling to improve general airflow

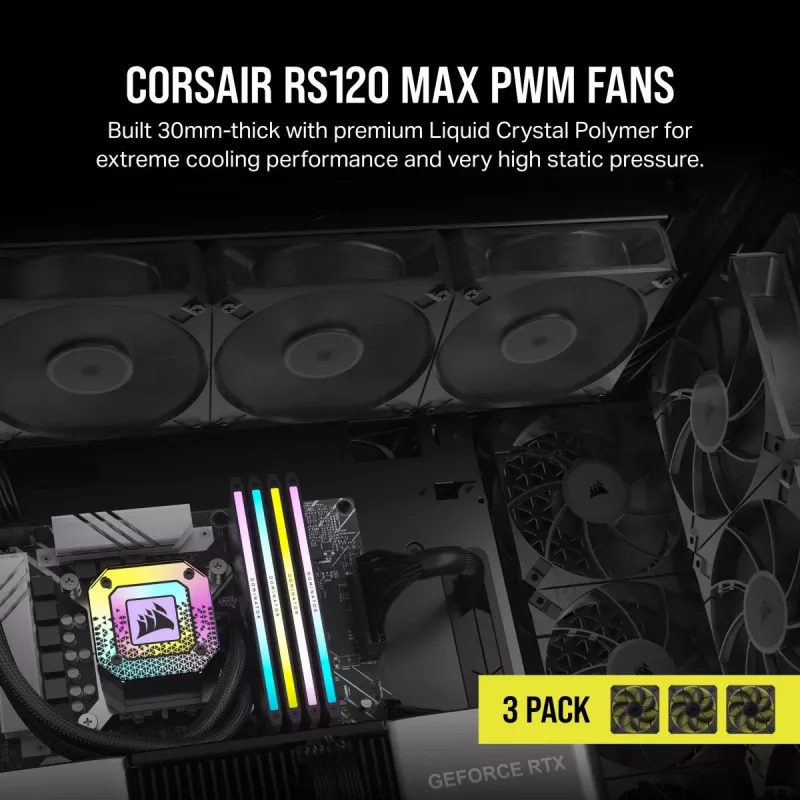

• Radiator mounting where higher static pressure is required
• Systems requiring quiet operation at comparable airflow
• Upgrades or replacements for 120 mm fan mounts

Key specifications

• Type: Fan
• Fan diameter: 120 mm

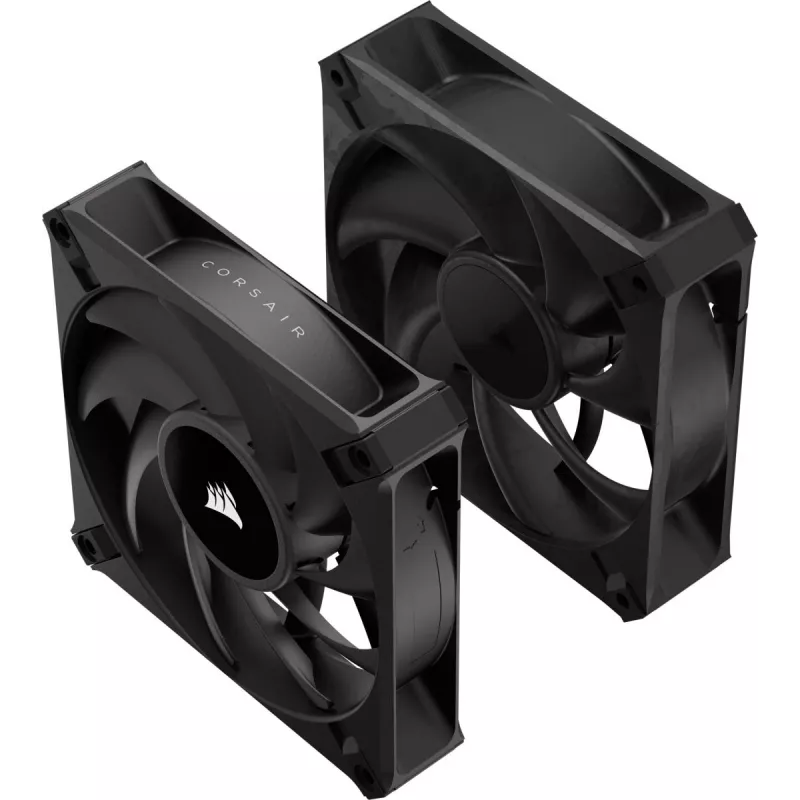

• Frame thickness: 30 mm
• Maximum speed: 2000 RPM

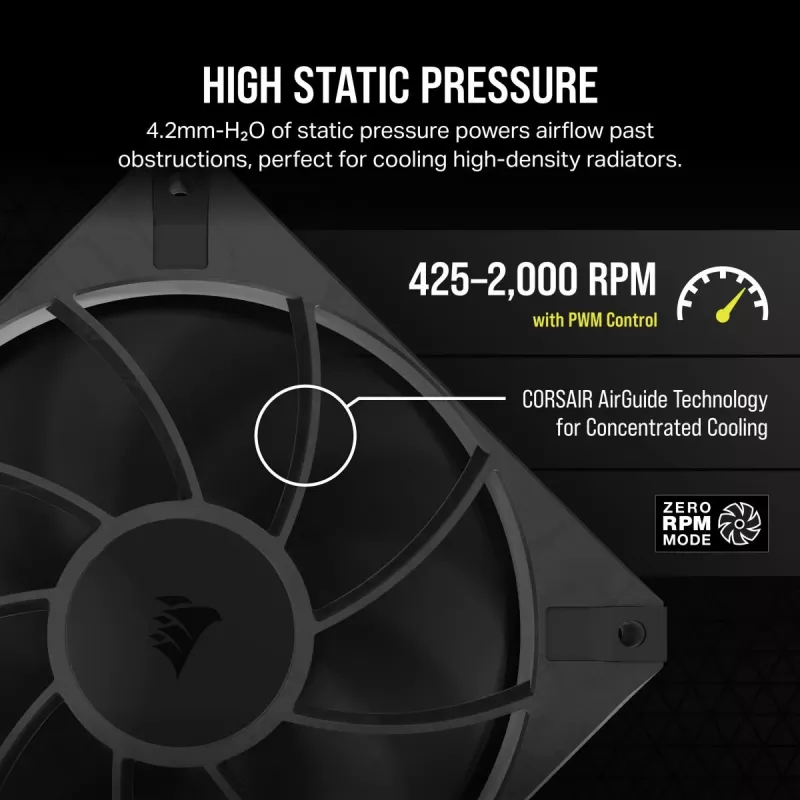

• Static pressure range: min 0.22 mmH2O — max 4.2 mmH2O
• Colour: Black

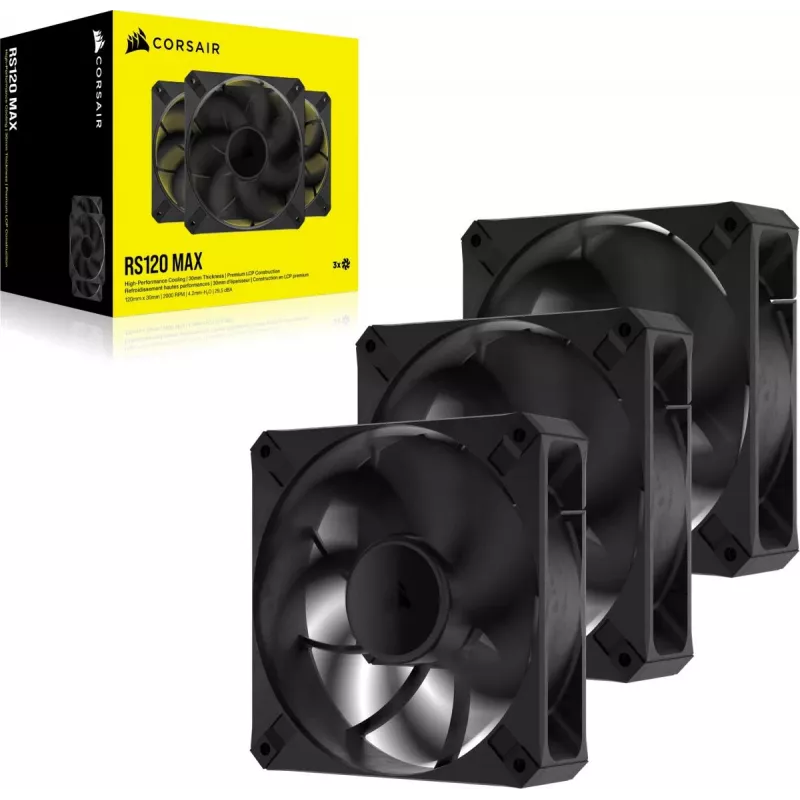

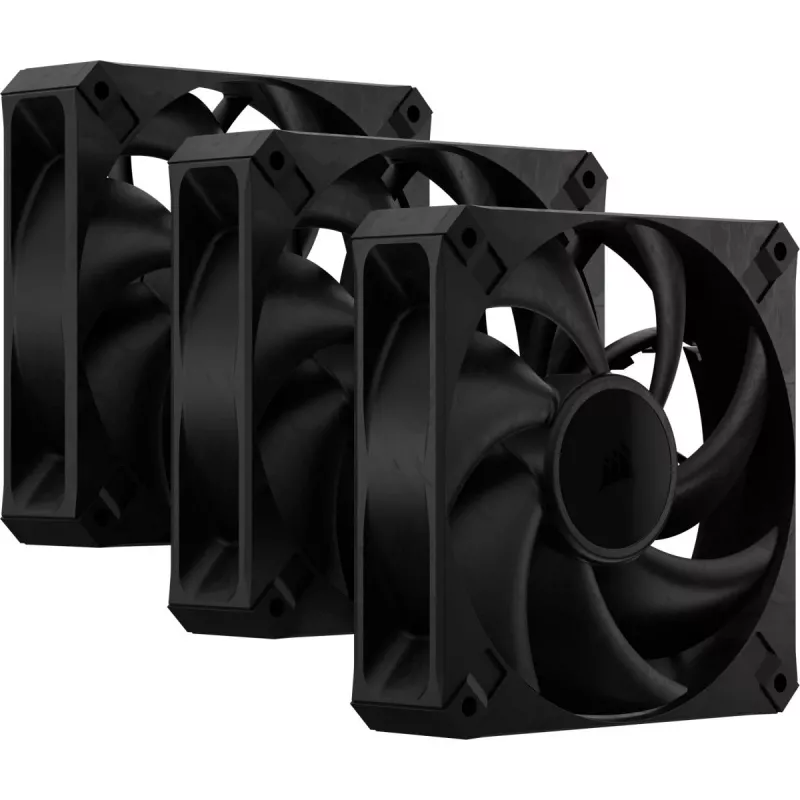

• Set contents: 3 fans
• Brand / MPN: CORSAIR / CO-9050171-WW
• EAN: 0840006669951

How to use

Install each RS120 MAX fan into a compatible 120 mm fan or radiator mount using the supplied screws or standard mounting hardware. Connect the fan power connector to an appropriate motherboard header or fan controller, observing correct pin alignment. For radiator installation, orient the fans to push or pull air according to your case airflow plan. Adjust fan speed via BIOS, motherboard software, or fan controller to achieve the desired balance between cooling and acoustic level.

Recommendations

For radiator installations, use the RS120 MAX to maximize heat dissipation by placing the fans where they can push air through the radiator fins; lower RPM settings can often achieve required airflow while reducing noise due to the fan's higher static pressure capability.
