Video rozbočovač HDMI LogiLink HD0037

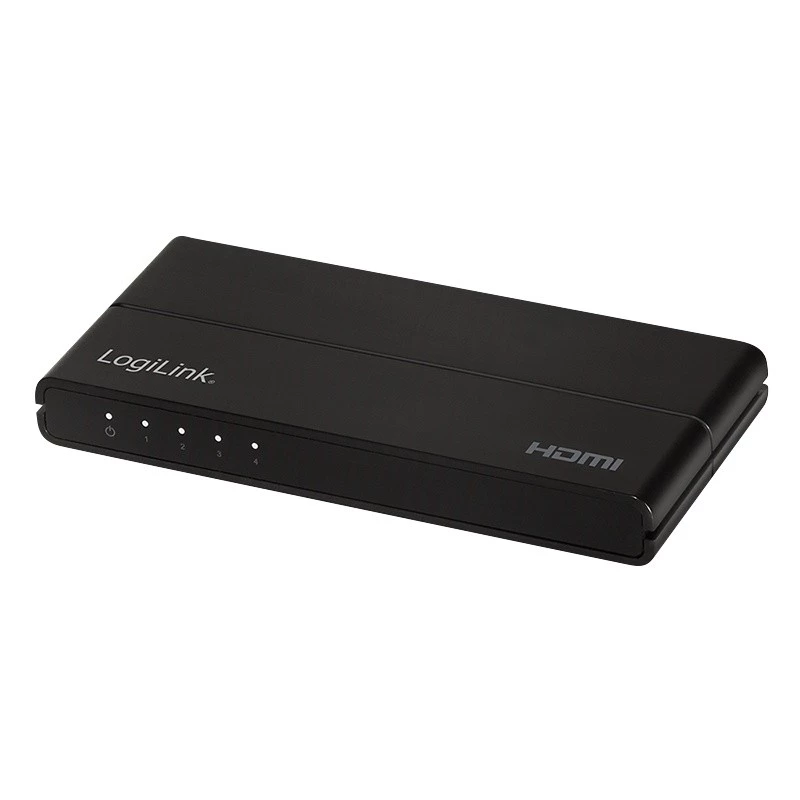

The LogiLink Video Splitter HDMI HD0037 distributes audio and video from one HDMI source to up to four monitors, TVs or projectors with support for UHD 4K at 60 Hz. The compact ABS housing (133 x 59 x 17 mm) and low power consumption (max. 5 W) make it suitable for desktop or AV-rack installation. The splitter supports HDR, HDCP 2.2, CEC and 3D and provides a total bandwidth of 18 Gbit/s (600 MHz) for stable playback. An integrated downscaler allows 4K sources to be shown on Full HD displays, and 4K and Full HD outputs can be used simultaneously. Audio formats supported include LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio and Dolby TrueHD.

Advantages

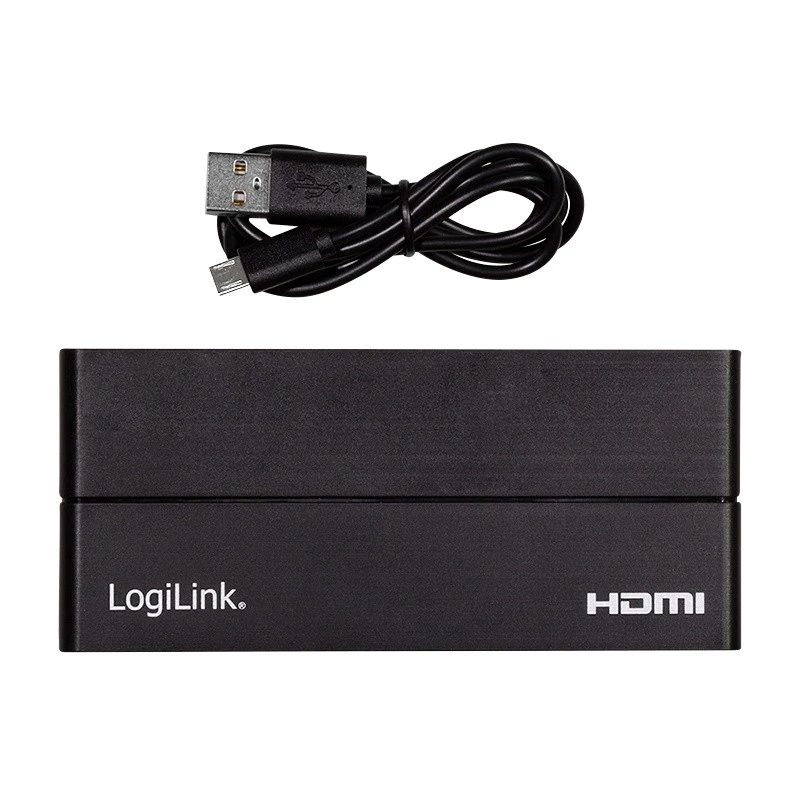

The LogiLink HD0037 offers simultaneous output to four HDMI displays without repeated cable swapping, a compact and lightweight design (0.085 kg) for unobtrusive placement, and broad compatibility through support of HDR, HDCP 2.2 and CEC. A high data throughput (18 Gbit/s) ensures smooth 4K/60 Hz video, while the built-in downscaler enables flexible use with Full HD screens. USB cables are included for convenient power/connectivity.

Suitable for

• Conference rooms and meeting spaces to mirror a single source on multiple displays
• Digital signage installations in shops, showrooms and public areas
• Home cinema setups that require distribution of 4K content to several TVs or projectors
• Classrooms and lecture halls for distributing presentations to multiple screens

Key specifications

• Model: LogiLink HD0037

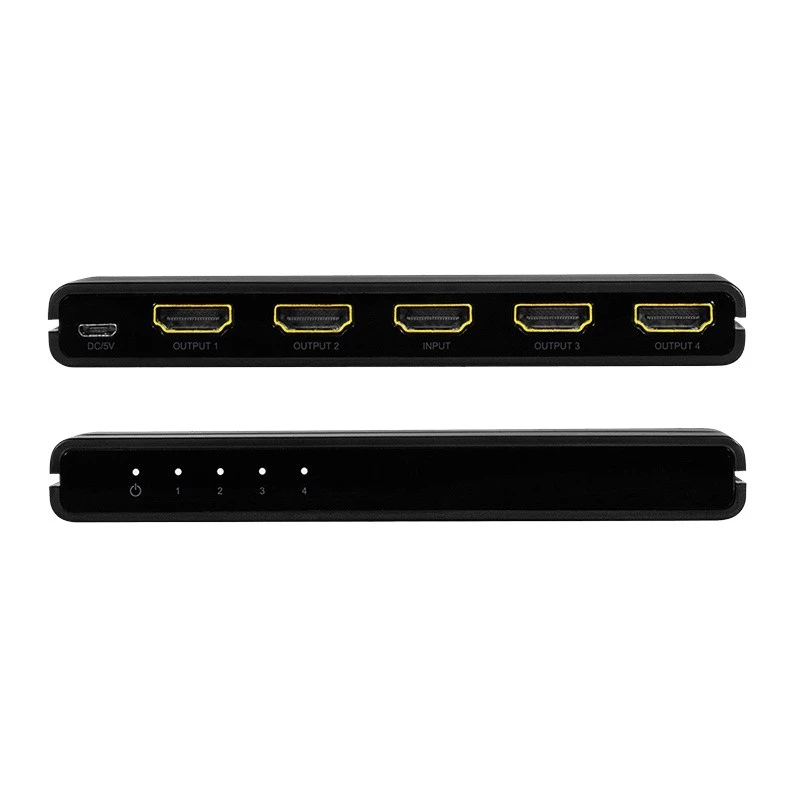

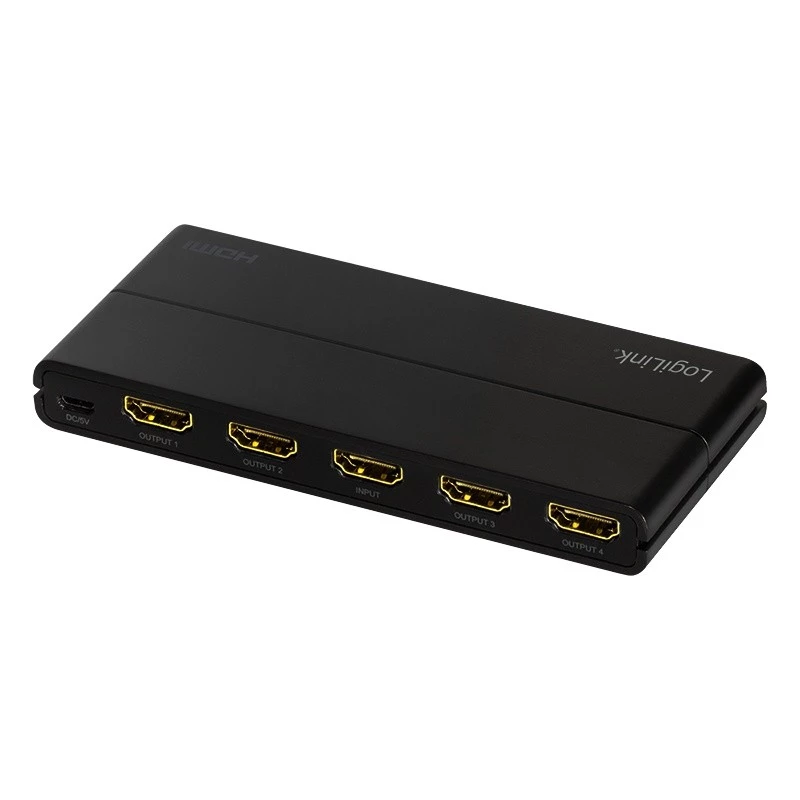

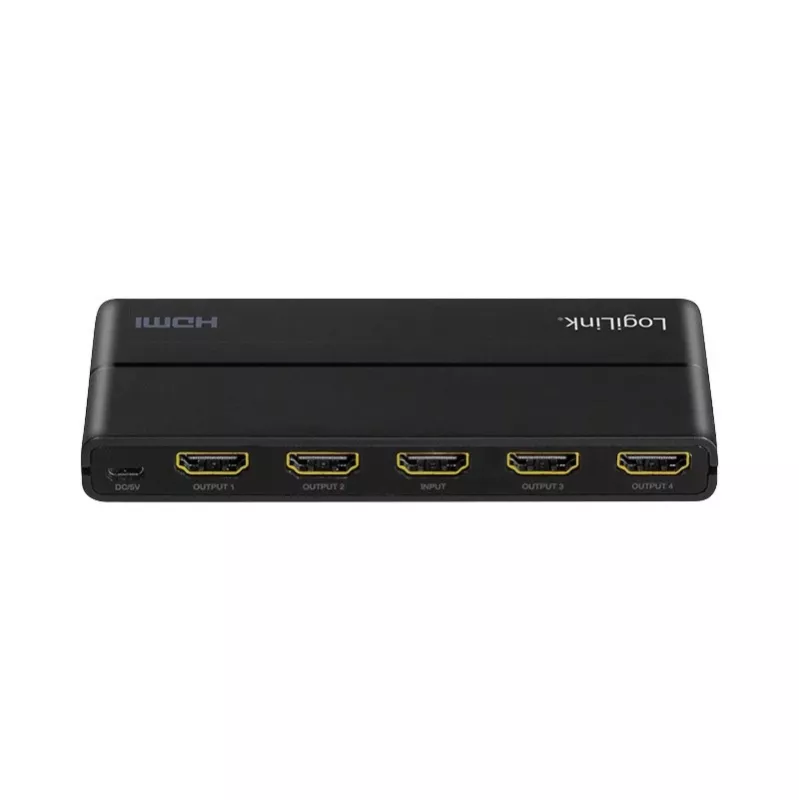

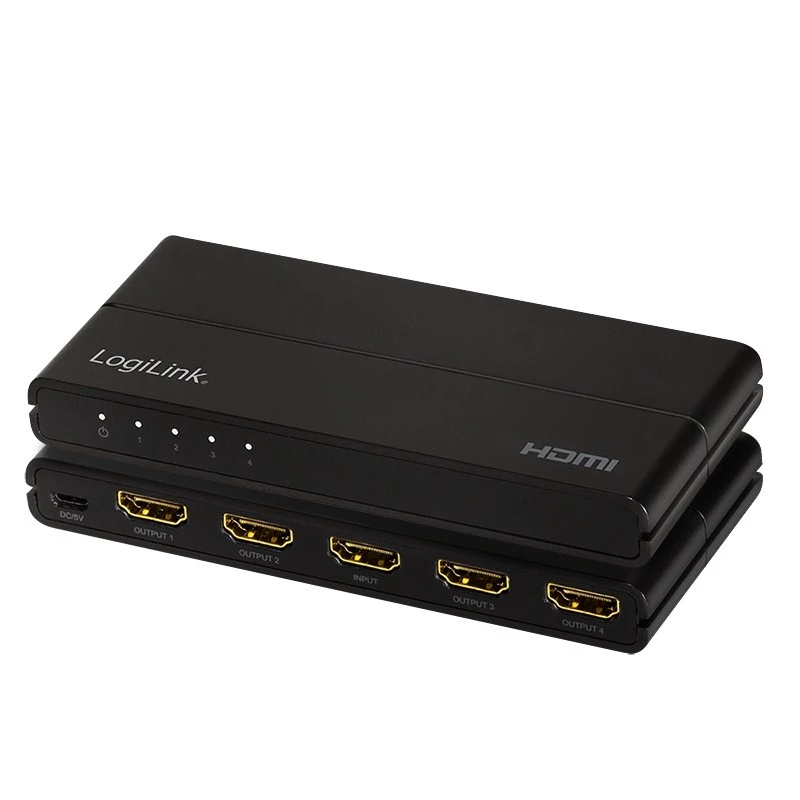

• Ports: 1 HDMI input, 4 HDMI outputs
• Resolution: UHD 4K@60 Hz; downscales to Full HD where required
• Bandwidth: 18 Gbit/s (600 MHz)
• Supported features: HDR, HDCP 2.2, CEC, 3D
• Audio formats: LPCM 7.1, DTS, Dolby Digital, DTS-HD Master Audio, Dolby TrueHD
• Material and colour: ABS, black
• Dimensions: 133 x 59 x 17 mm
• Weight: 0.085 kg

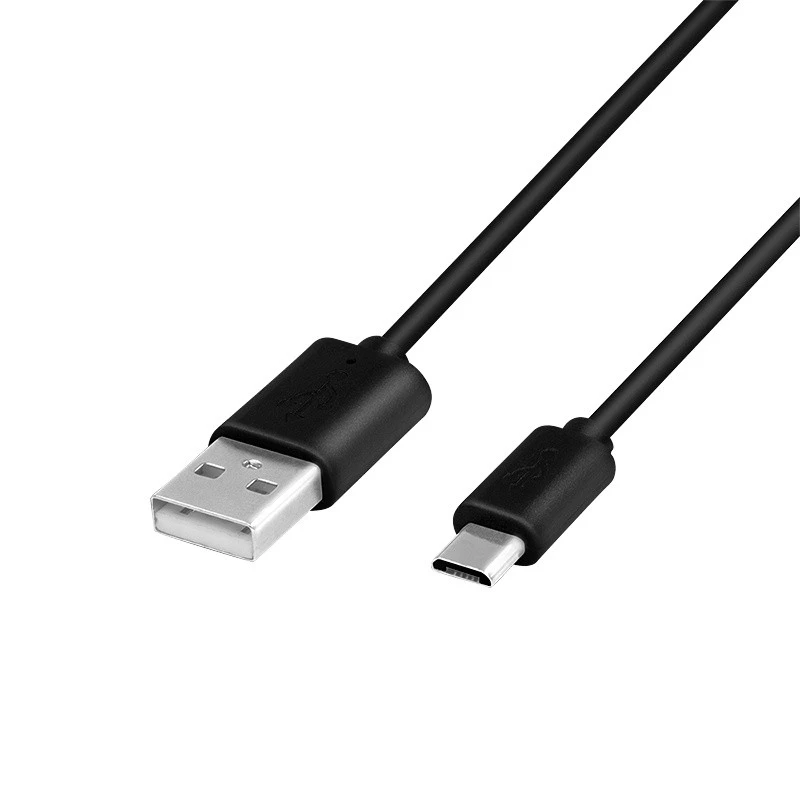

• Power consumption: max. 5 W; includes USB cables

How to use

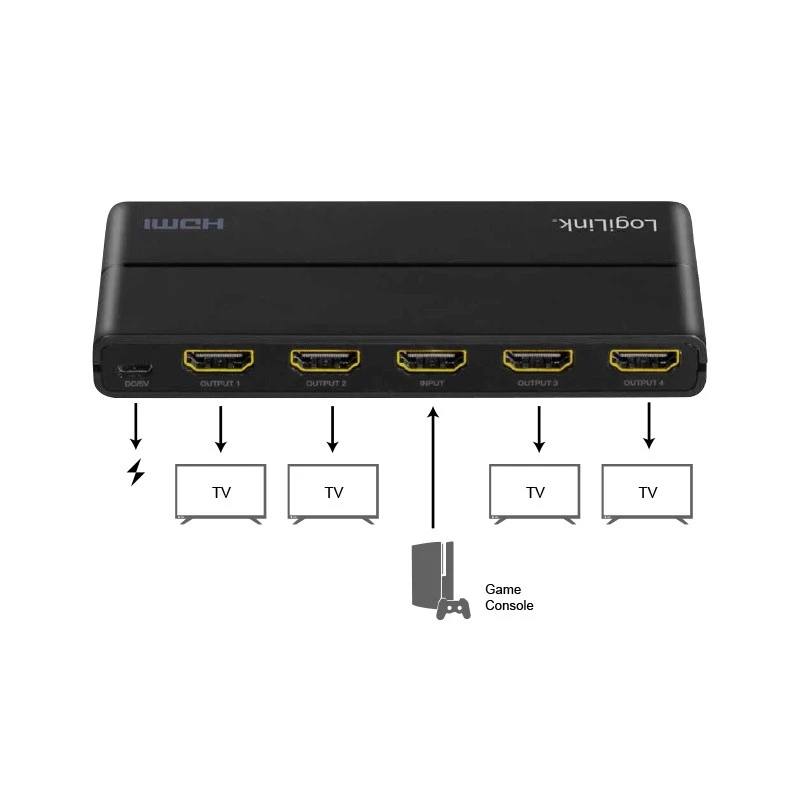

Connect the HDMI source (e.g., Blu-ray player, PC or media player) to the HDMI input on the HD0037, then connect up to four displays to the HDMI outputs. Provide power via the included USB cable if required. The splitter will detect connected displays and route the video and audio signal to all outputs. If a Full HD display is connected alongside 4K displays, the downscaler will adjust the signal to match the Full HD device while allowing other outputs to remain at 4K.

Recommendations

For reliable 4K@60 Hz performance use high-quality HDMI cables rated for 18 Gbit/s; ensure source and display devices support HDCP 2.2 and desired audio formats. Place the splitter in a ventilated location and avoid coiling power or HDMI cables tightly to reduce interference.
