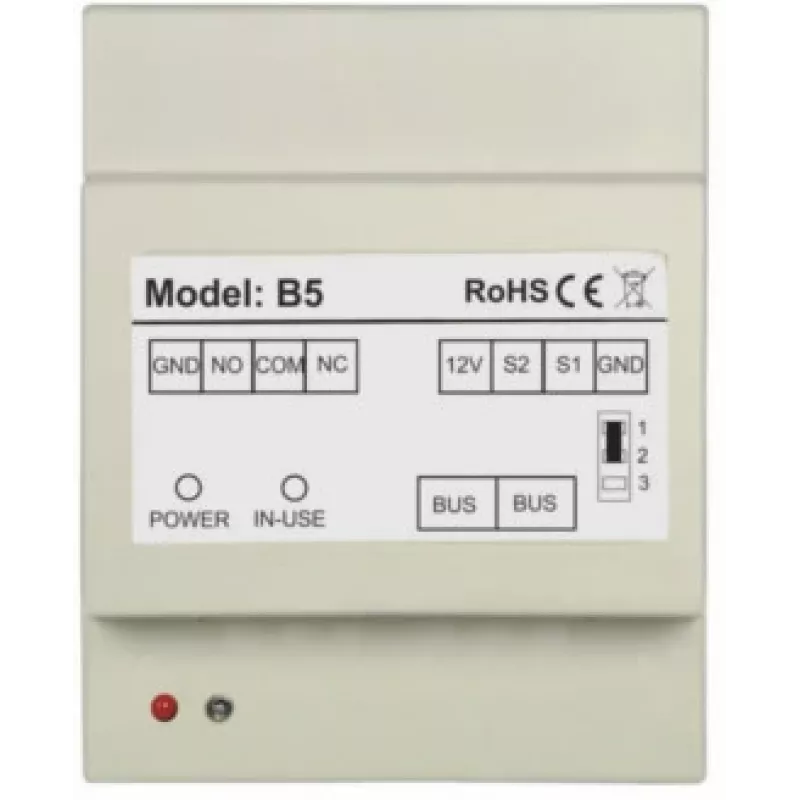

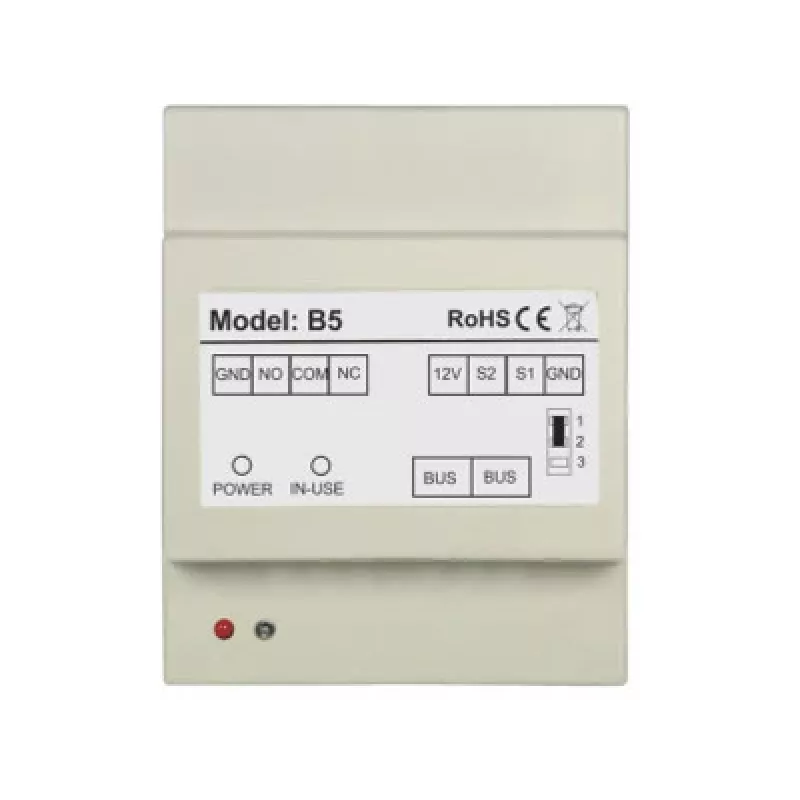

VIDOS DUO B5 modul na rozšírenie funkcií

The VIDOS DUO B5 is a functional expansion module designed for the VIDOS DUO 2-Wire System. It provides 2 independent relay outputs and 5 alarm inputs, enabling integration of gate control, additional door control, lighting control, and alarm sensors. The module is DIN rail mountable with a width of 4 modules and communicates via the non-polarized 2-wire bus.

Advantages

Easy expansion of the VIDOS DUO system with additional relay outputs and alarm inputs. Screw terminals ensure secure connections, and LED indicators provide clear status feedback. The module supports up to 4 units per system, offering scalability.

Suitable for

• Gate control applications
• Additional door control
• Lighting control
• Alarm sensor integration

Key specifications

• System Compatibility: VIDOS DUO 2-Wire System
• Module Type: Functional Expansion Module
• Number of Relay Outputs: 2 (Independent, NO/NC)
• Number of Alarm Inputs: 5 (Independent, NO/NC)
• Power Supply: 24V DC (from VIDOS DUO bus)
• Installation Type: DIN Rail Mount
• DIN Module Width: 4 Modules
• Communication Protocol: VIDOS DUO 2-Wire Non-Polarized
• Operating Temperature: -10°C to +50°C
• Housing Material: Plastic
• Max Modules per System: Up to 4 B5 modules
• Connection Type: Screw Terminals
• LED Indicators: Power, Relay Status
• Input Type: Dry Contact (NO/NC)

Recommendations

For optimal performance, use the VIDOS DUO B5 within the specified temperature range and ensure proper DIN rail mounting. Verify compatibility with existing VIDOS DUO system components.
