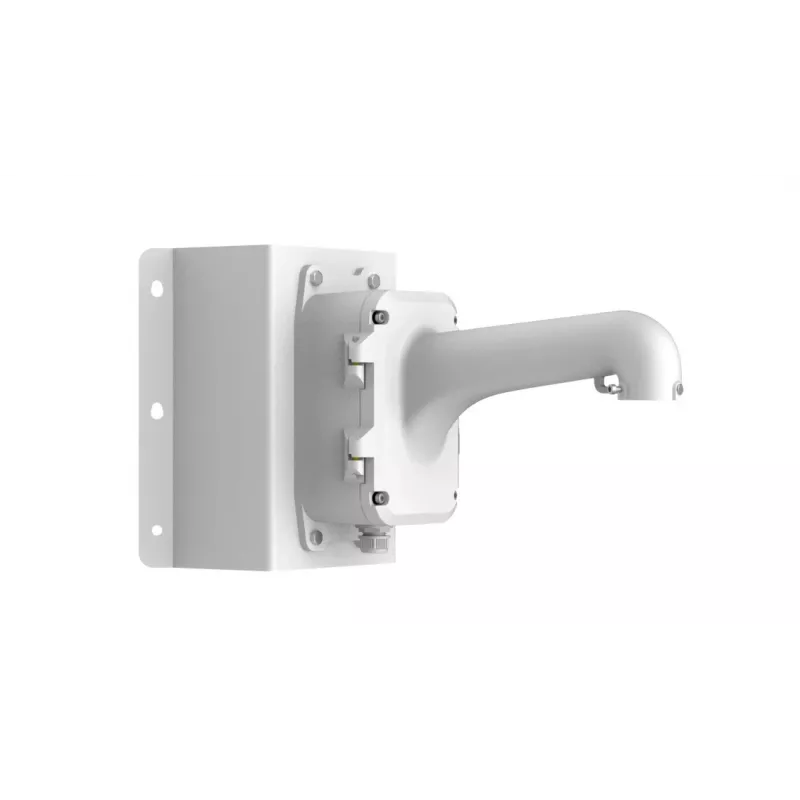

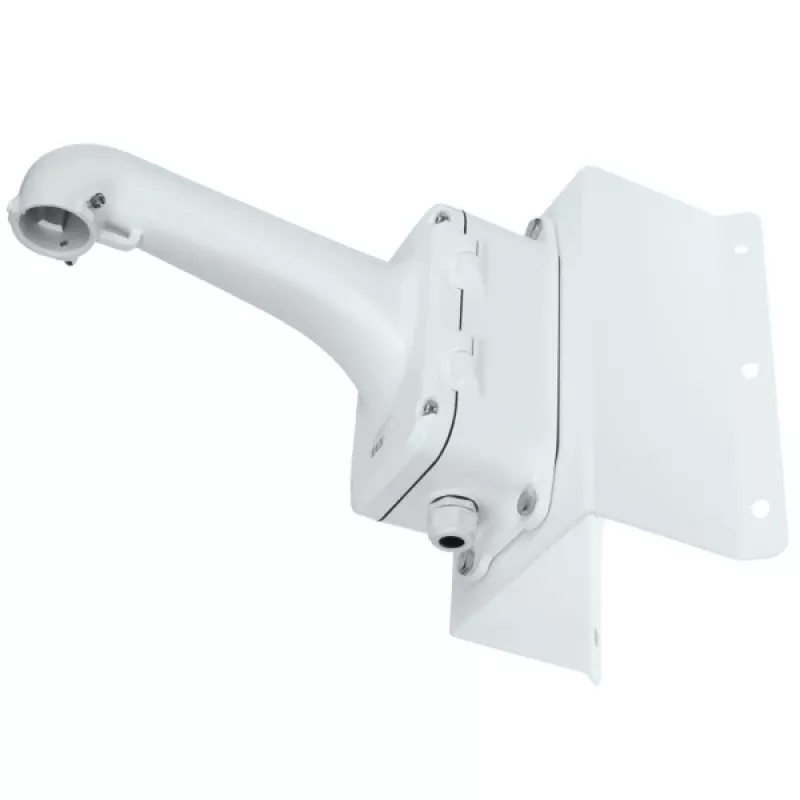

Vnútorný rohový držiak Hikvision DS-1604ZJ-BOX-CORNER biely 10kg

The Hikvision DS-1604ZJ-BOX-CORNER White 10kg is an indoor corner mount crafted for secure and discreet installation of CCTV cameras. Made to integrate with a variety of indoor camera housings, this white mount supports cameras weighing up to 10 kg and provides a stable mounting platform for hallways, lobbies, stairwells and other interior locations. Its wired connectivity option allows for tidy cable routing when installed near existing network or power lines. Physical dimensions are 542 mm length, 255.5 mm width and 314 mm height, offering a compact footprint suitable for common indoor mounting scenarios.

Advantages

This corner mount provides reliable mechanical support for medium-weight indoor cameras, reducing vibration and maintaining correct camera orientation. The white finish blends with typical interior decor and ceiling/upper-wall junctions, while the mount's shape is optimized for corner installation to maximize field of view and minimize visual obstruction. Wired connectivity options facilitate neat cable management and secure electrical connections, enabling professional-looking installations without exposed wiring.

Suitable for

• Indoor corner mounting of dome or box CCTV cameras
• Surveillance in corridors, lobbies and stairwells
• Professional installations where tidy cable routing is required
• Replacement or upgrade of existing indoor mounts

Key specifications

• Color: white
• Maximum supported camera weight: 10 kg
• Connectivity type: wired (for cable routing and connections)
• Length: 542 mm
• Width: 255.5 mm
• Height: 314 mm
• Intended installation location: indoor corner

How to use

Mount the DS-1604ZJ-BOX-CORNER to a solid interior corner surface using appropriate fasteners for the wall material. Align the mount so the camera has the required field of view, then secure the camera to the mounting interface according to the camera manufacturer's instructions. Route power and network cables through the mount’s cable access points, and connect wiring while ensuring strain relief and proper insulation. After connections are complete, adjust camera position and tighten fasteners to prevent movement.

Recommendations

Verify that the selected camera’s weight does not exceed 10 kg. Use corrosion-resistant screws and anchors suitable for the wall substrate. For installations near HVAC vents or in areas with strong drafts, confirm camera stability after mounting. If in doubt about electrical connections or load-bearing capacity, consult a qualified installer.
