Vodný chladiaci blok EK Water Blocks acetal meď čierna

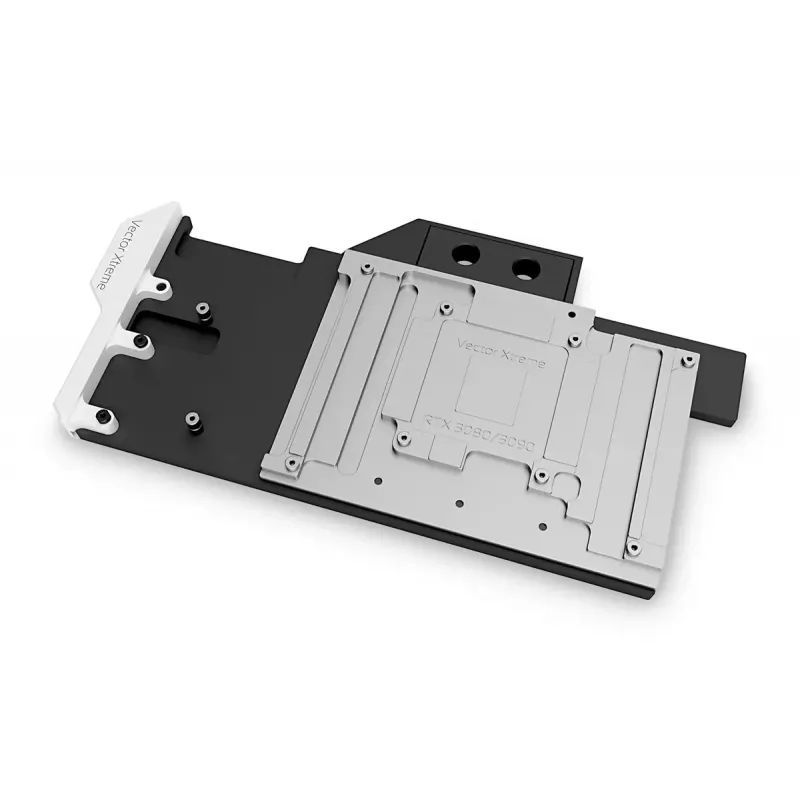

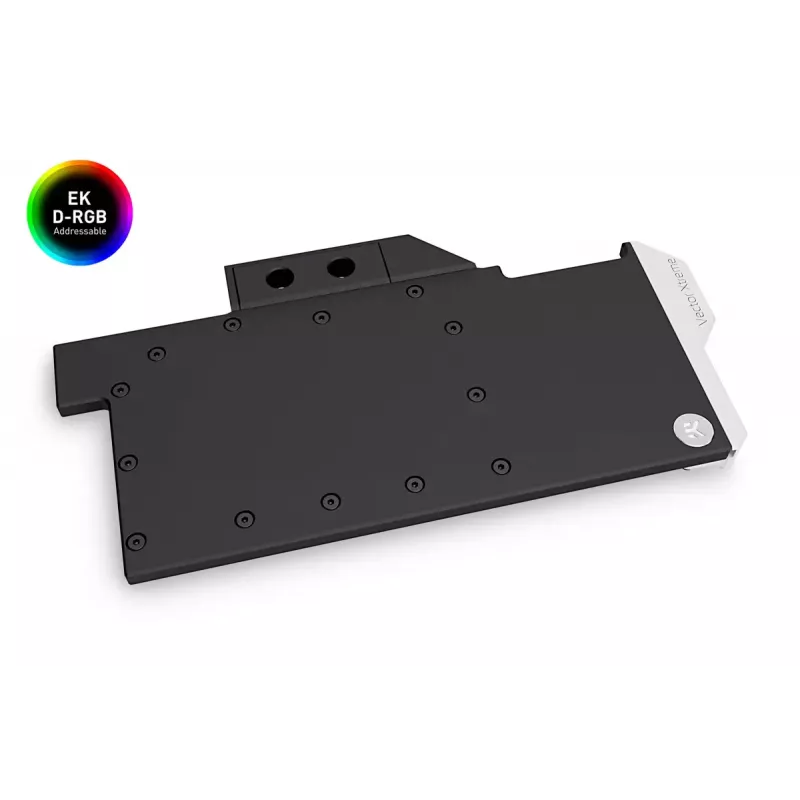

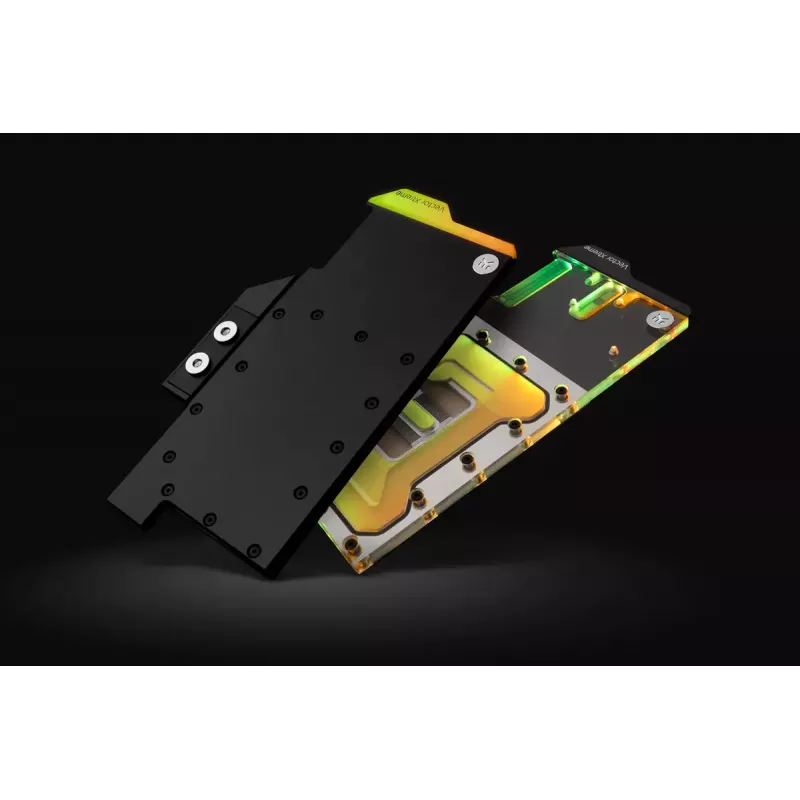

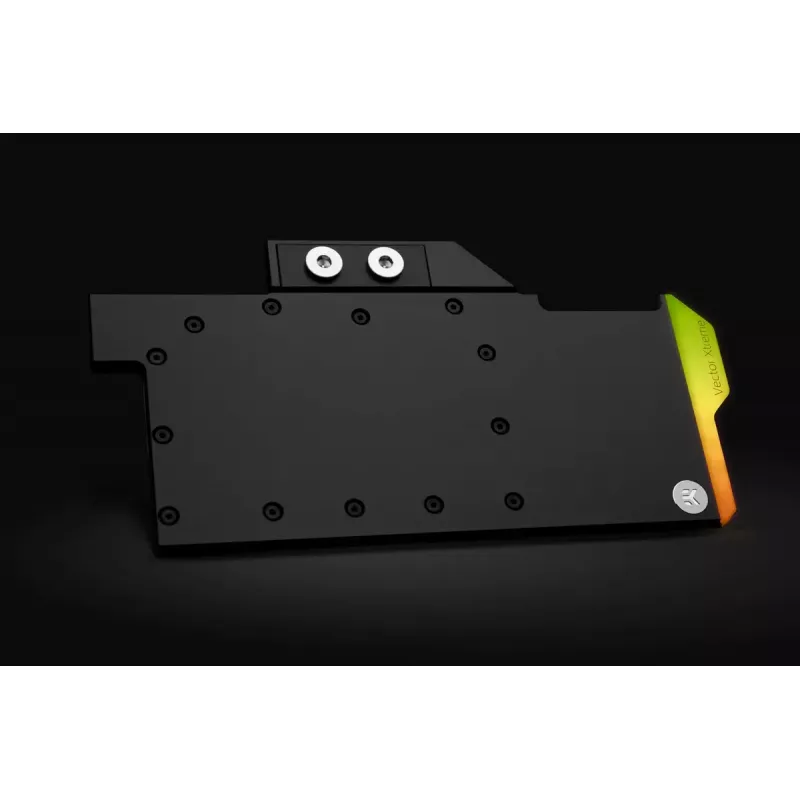

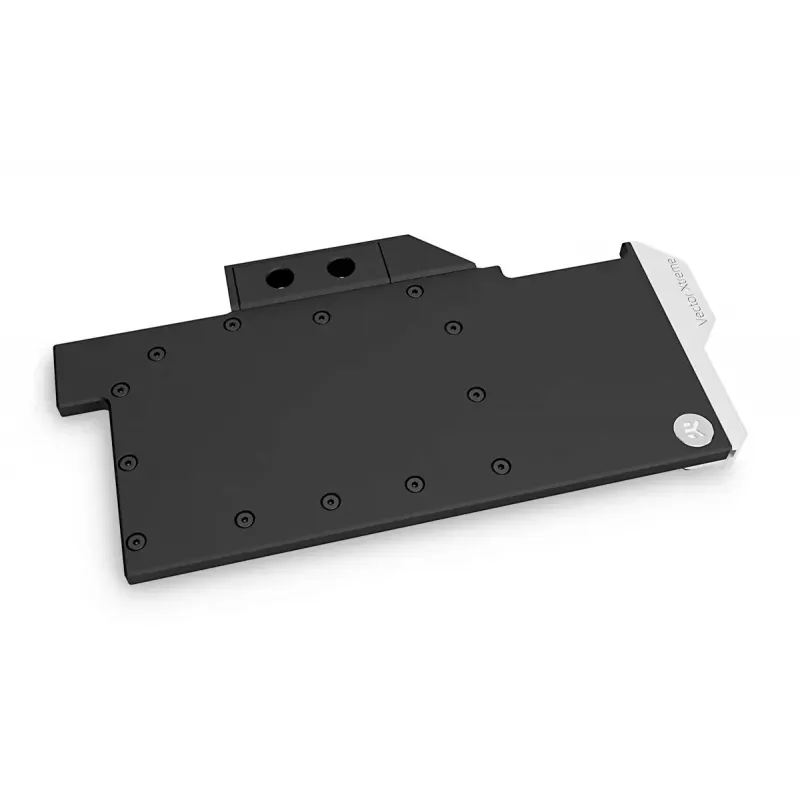

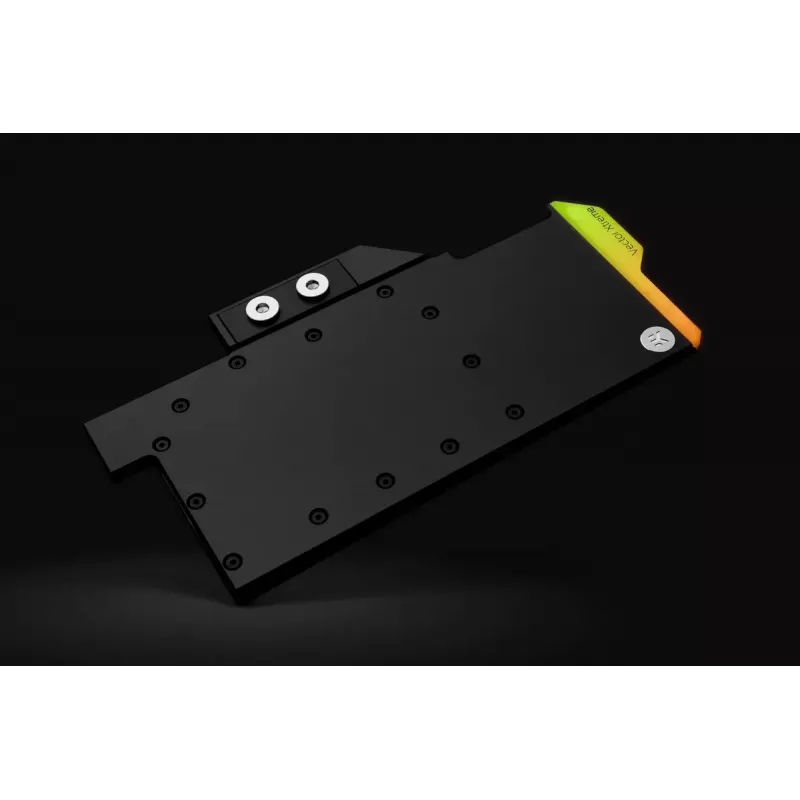

EK-Quantum Vector Xtreme 3080/3090 D-RGB - Nickel + Acetal is a full-coverage water block compatible with Aorus Xtreme and Master variants of NVIDIA RTX 3080 and RTX 3090 graphics cards. It actively cools the GPU core, front-facing VRAM, VRM power stages and chokes, and uses nickel-plated high-grade copper for the base and black POM acetal for the top. The block includes pre-installed brass standoffs, EPDM O-ring sealing, and addressable D-RGB illumination housed in an aesthetic corner end-piece.

Advantages

The Vector series employs an Open Split-Flow cooling engine with optimized jet plate and fin geometry to ensure even coolant distribution, reduced hydrodynamic instabilities and low hydraulic flow restriction. This design delivers strong cooling performance even with lower-speed pumps. CNC-machined nickel-plated copper base and durable acetal top provide reliable thermal contact and long-lasting construction. The block includes 8 individually addressable D-RGB LEDs compatible with major motherboard RGB sync standards and comes with all necessary mounting hardware, plugs, thermal pads and thermal grease.

Suitable for

• Aorus Xtreme RTX 3080 and RTX 3090 graphics cards
• Aorus Master RTX 3080 and RTX 3090 graphics cards
• Custom liquid-cooled PC builds focused on GPU cooling and noise reduction

Key specifications

• Compatibility: Aorus Xtreme / Master RTX 3080 and RTX 3090
• Materials: Nickel-plated high-grade copper base, black POM Acetal top
• Cooling areas: GPU core, front VRAM, VRM power stages and chokes
• Cooling engine: Open Split-Flow design with optimized jet plate and fin structure
• Lighting: 8 individually addressable D-RGB LEDs, 3-pin D-RGB connector (+5V alignment)
• Sealing: EPDM O-rings
• Included accessories: mounting mechanism with screw-in brass standoffs, screws, nuts, washers, 2x nickel-plated brass G1/4" plugs, EK-Loop Multi Allen Key (6mm, 8mm, 9mm), thermal pads, EK-TIM Ectotherm (1 g)

How to use

Shut down and disconnect the PC from power, remove the compatible graphics card from the system and detach the factory cooler following the card manufacturer’s service instructions. Install the included brass standoffs onto the PCB as supplied by the mounting mechanism, apply the provided thermal pads and the supplied EK-TIM Ectotherm thermal grease to the GPU die where indicated, then mate the water block to the card and secure it with the supplied screws, nuts and washers. Connect the 3-pin D-RGB header to the motherboard, aligning the arrow with the +5V marking. Pressure-test the loop and check for leaks before powering the full system.

Recommendations

Use the EK-Quantum Vector Xtreme block with a recommended retention backplate for improved mechanical support and additional passive cooling, especially for RTX 3090 models. Ensure compatible G1/4" fittings and proper loop maintenance; verify RGB header polarity before connecting.
