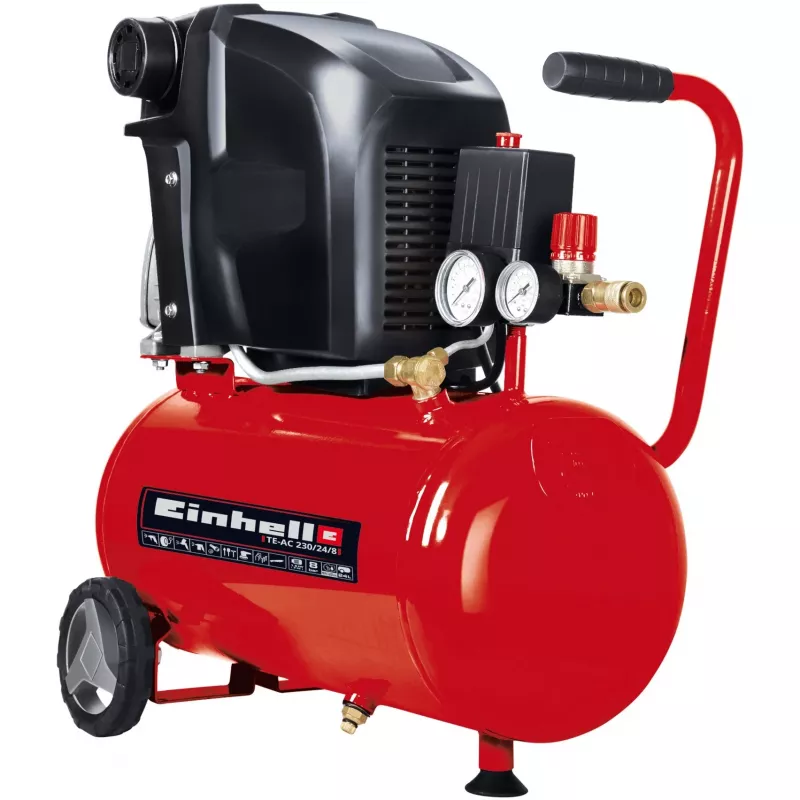

Vzduchový kompresor Einhell TE-AC 230/24

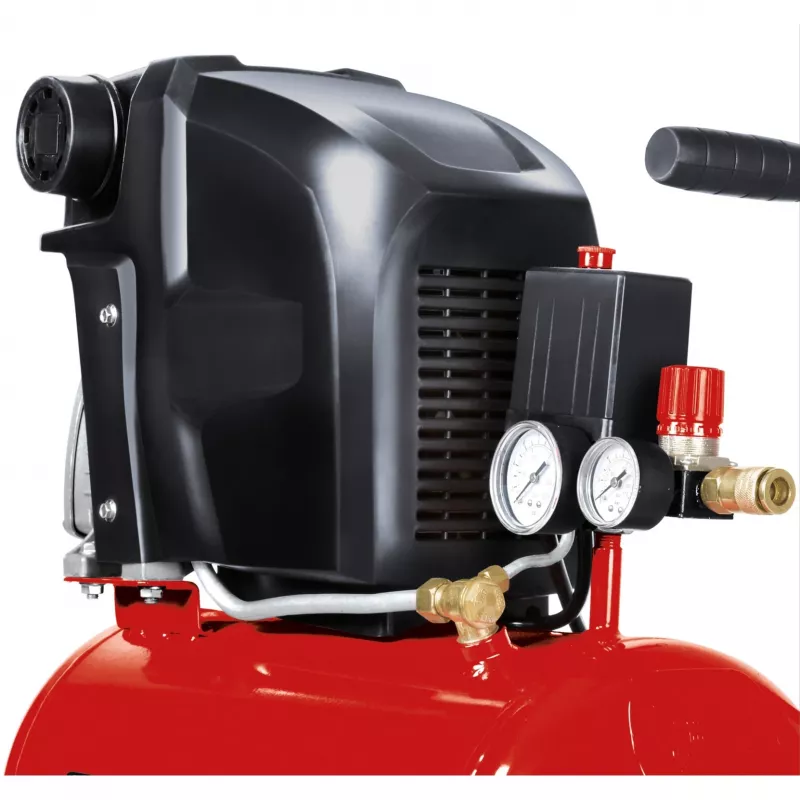

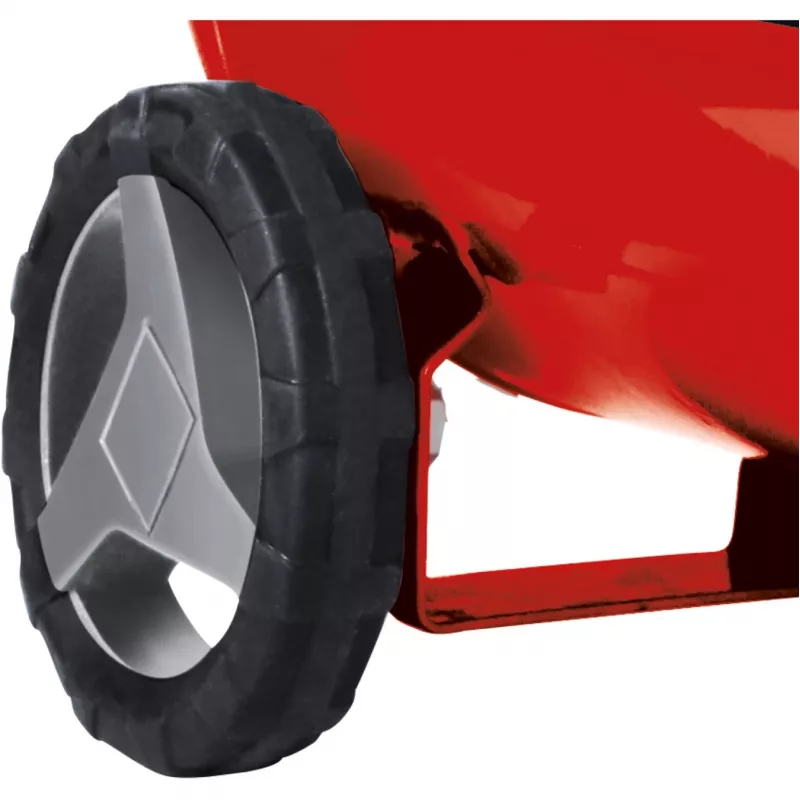

The Air Compressor Einhell TE-AC 230/24 is a robust, oil-lubricated compressor designed for demanding workshop and garage tasks. It features a 1500 W motor with an intake capacity of 230 l/min, a 24‑liter tank and a maximum operating pressure of up to 8 bar. The unit includes a pressure gauge, a pressure reducer with quick-release coupling, a visual oil level inspection window and practical condensate drain for straightforward maintenance. Large wheels and a carrying bar provide easy transport.

Advantages

The oil-lubricated pump and high-quality components provide long service life and reliable continuous performance. Visual oil level control and a drain plug simplify upkeep. A non-return valve and safety valve protect against backflow and overpressure, while the pressure reducer and gauge allow precise, controlled output for a variety of pneumatic tools and applications.

Suitable for

• Workshop and garage maintenance
• Inflating vehicle tires and sports equipment
• Operating pneumatic tools such as nail guns and airbrushes
• Light to medium industrial and hobby compressed-air tasks

Key specifications

• Brand: EINHELL
• Model: TE-AC 230/24 (MPN 4010460, EAN 4006825594478)
• Motor power: 1500 W
• Intake capacity: 230 l/min
• Maximum operating pressure: 8 bar
• Tank volume: 24 L
• Pump speed: 2850 rpm
• Voltage: 230–240 V AC
• Dimensions (W×D×H): 275 × 615 × 633 mm

How to use

Place the compressor on a level surface and connect to a suitable 230–240 V power supply. Before operation, check the oil level through the inspection window and the tank pressure on the gauge. Switch on the unit and set the required working pressure up to 8 bar using the pressure reducer. Connect pneumatic tools via the quick-release coupling. After use, switch off the compressor, release pressure from connected lines and drain condensate through the drain plug to avoid corrosion.

Recommendations

For long service life, check oil level before each use, perform regular condensate draining and avoid continuous operation at maximum pressure for extended periods. Use appropriate hoses and fittings rated for 8 bar or higher.
