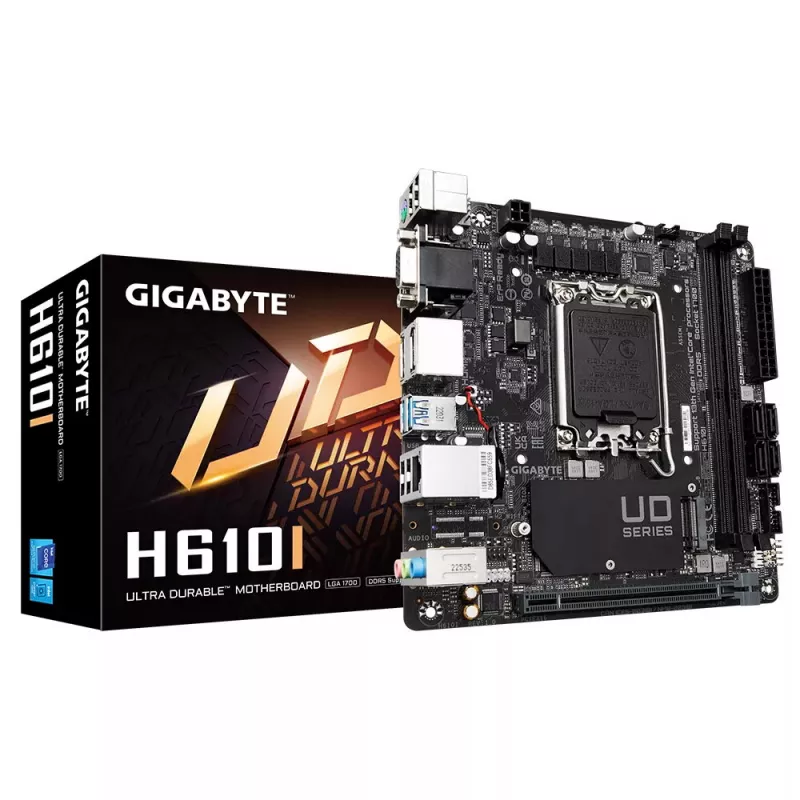

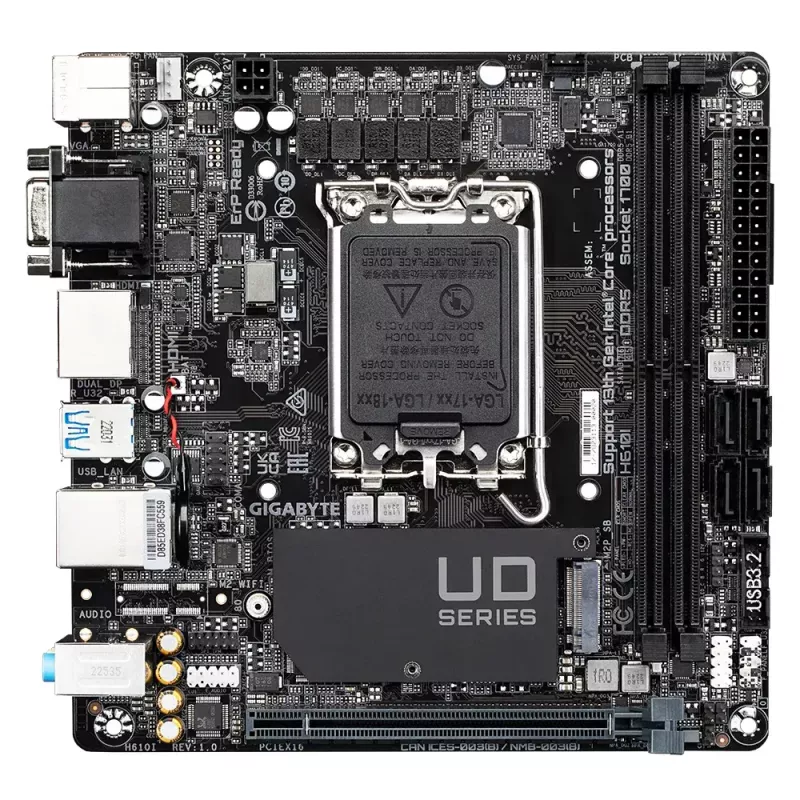

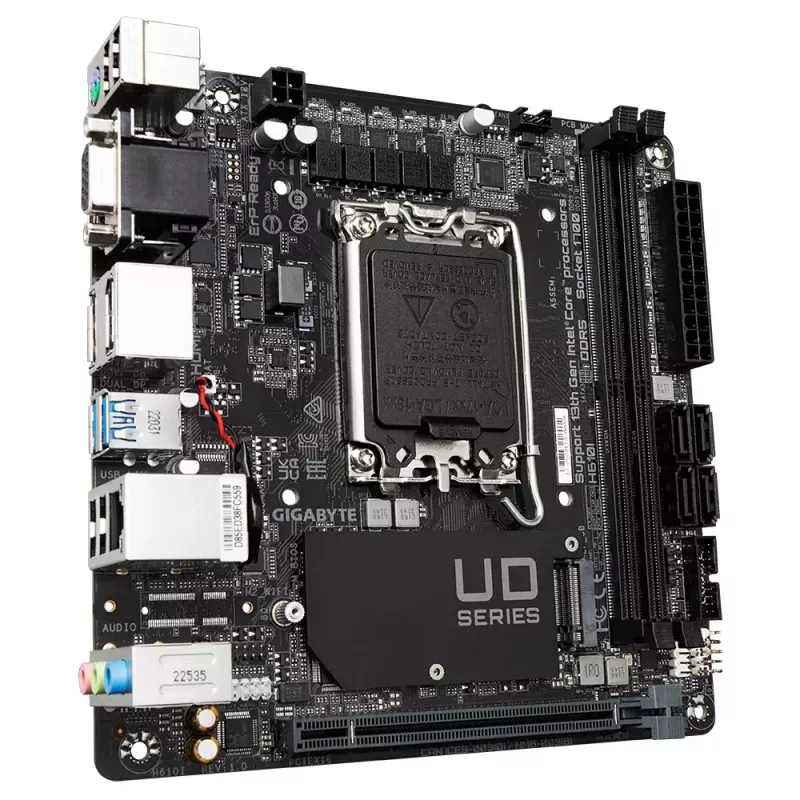

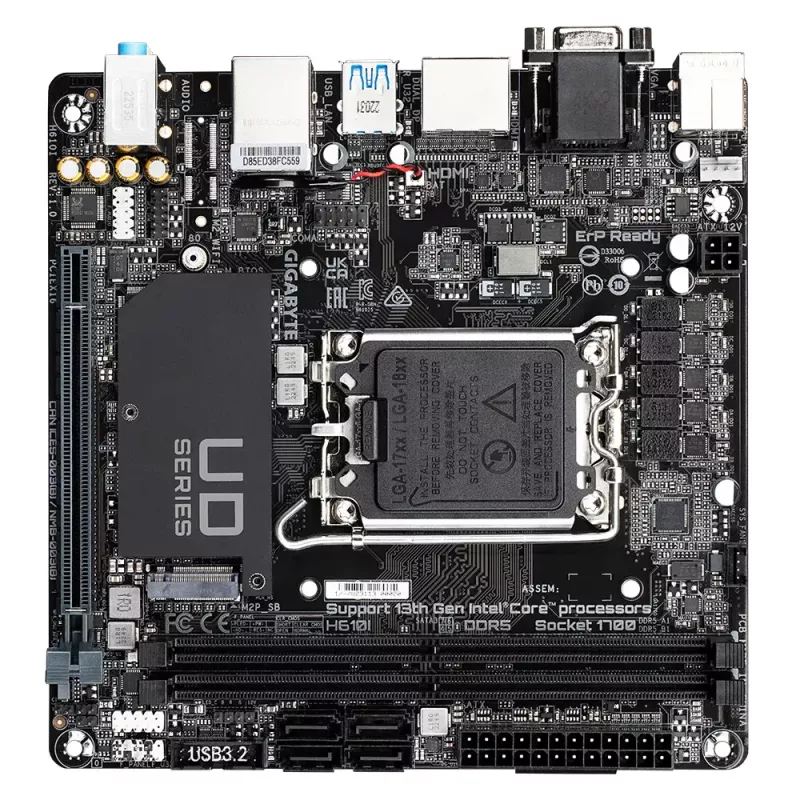

Základná doska GIGABYTE H610I, Intel H610, LGA 1700, Mini-ITX

The GIGABYTE H610I is a Mini-ITX motherboard designed for compact PC builds using Intel LGA 1700 processors. Based on the Intel H610 Express chipset, it supports Intel 14th Gen Core CPUs, up to 64 GB of DDR5 memory at up to 5600 MHz, and integrates Intel HD Graphics with a maximum resolution of 4096 x 2304. The board provides one PCIe 3.0 M.2 slot, Gigabit Ethernet, and USB 3.2 Gen 1 ports, making it suitable for space-constrained systems that require modern connectivity and reliable performance.

Advantages

The Mini-ITX GIGABYTE H610I combines a compact form factor with a 4+1+1 Hybrid Digital VRM for stable power delivery to LGA 1700 processors. Support for DDR5 memory at up to 5600 MHz and two DIMM slots allows for up to 64 GB of system memory. Built-in Intel HD Graphics, a PCIe 3.0 M.2 slot for high-speed NVMe storage, GbE LAN and USB 3.2 Gen 1 ensure compatibility with a wide range of peripherals and storage options.

Suitable for

• Small form-factor gaming or home office PCs
• Compact content-creation workstations
• HTPCs and living-room media centers
• Upgrading older compact systems to DDR5 and 14th Gen Intel CPUs

Key specifications

• Form factor: Mini ITX
• Chipset: Intel H610 Express
• Socket: LGA 1700 (Intel 14th Gen Core support)
• Memory: 2 x DDR5 DIMM slots, up to 64 GB, up to 5600 MHz
• Storage: 1 x PCIe 3.0 M.2 slot; supports HDD and SSD
• LAN: Gigabit Ethernet (GbE)
• Graphics: Integrated Intel HD Graphics, max resolution 4096 x 2304

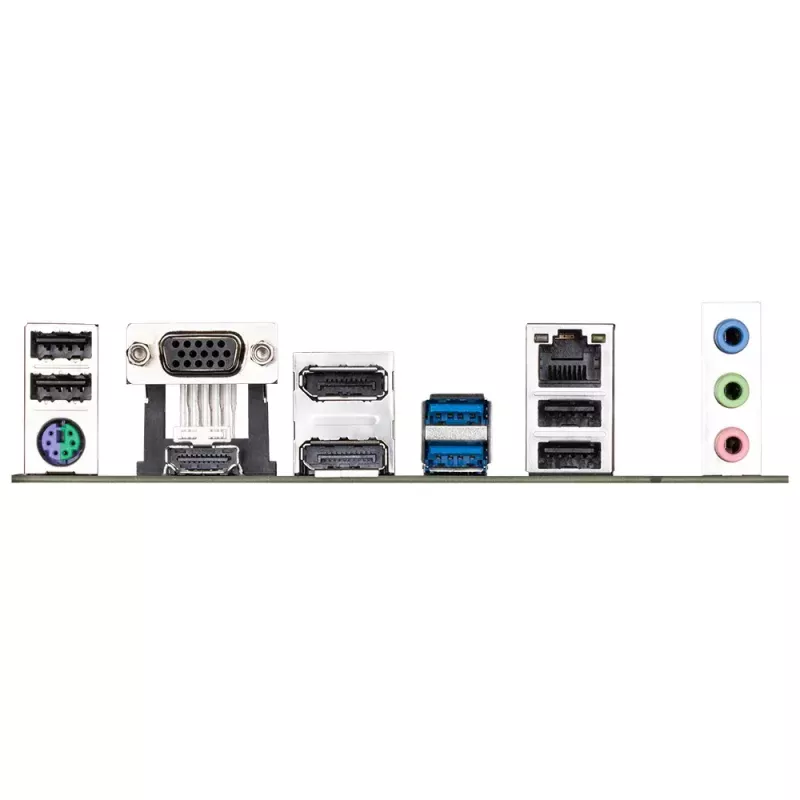

• USB: USB 3.2 Gen 1 connectivity

How to use

Install the GIGABYTE H610I into a compatible Mini-ITX case, mount an LGA 1700 CPU and apply appropriate cooling per the CPU and case manufacturer instructions. Insert DDR5 memory modules into the two DIMM slots, install an NVMe SSD into the M.2 slot if required, and connect power, storage and front-panel cables. After assembly, enter the BIOS to verify CPU, memory frequency and storage detection, then install the operating system and necessary drivers from GIGABYTE or Intel.

Recommendations

For stable system operation, use a quality SFX or SFX-L power supply compatible with your case, ensure your CPU cooler provides adequate clearance for the Mini-ITX layout, populate memory in matched DDR5 modules for dual-channel operation, and update the motherboard BIOS to the latest version before installing the OS.
