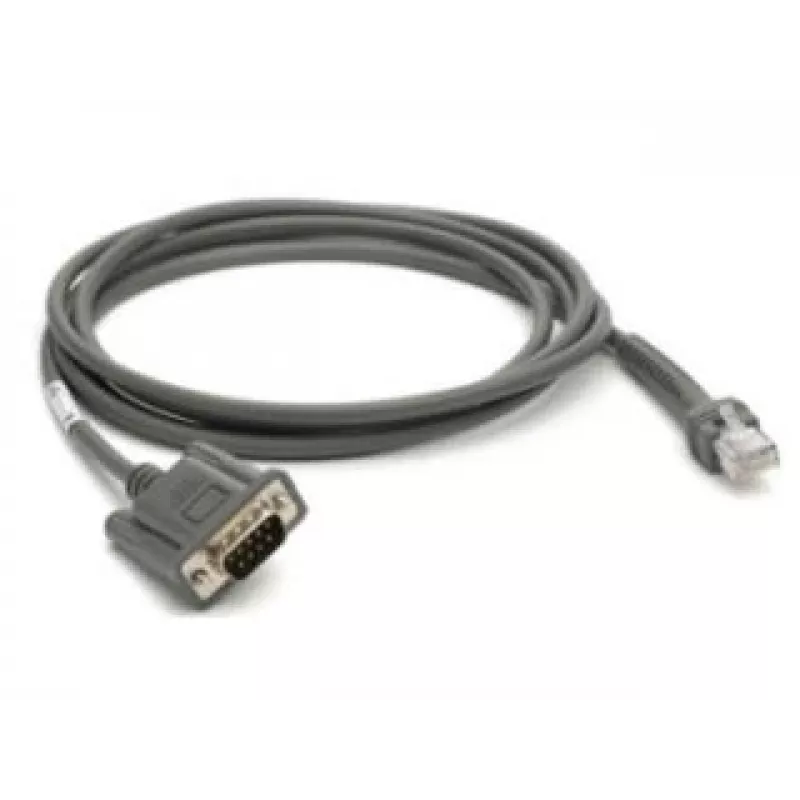

ZEBRA EVM RS232 sériový dátový a napájací kábel - 2m (7ft) pre Nixdorf Beetle - 5V priamy prúd s TTL ochranou proti preťaženiu

This ZEBRA EVM RS232 Serial Data & Power Cable is designed to connect powered RS232 peripherals such as scanners, displays, and printers to Wincor Nixdorf Beetle POS terminal series. It provides both data communication and 5V DC power directly from the terminal, eliminating the need for an external power supply. The cable features integrated TTL current limit protection to safeguard connected devices.

Advantages

Integrated TTL current limit protection ensures safe operation. Direct 5V power from the POS terminal simplifies setup. High-quality shielding minimizes interference for reliable data transfer.

Suitable for

• Connecting RS232 peripherals to Nixdorf Beetle POS systems
• Retail, hospitality, and other point-of-sale environments
• Applications requiring both data and power over a single cable

Key specifications

• Cable Type: RS232 Serial Data & Power Cable
• Length: 2 meters (7 feet)
• Connector A: Nixdorf Beetle Specific Connector
• Connector B: DB9 Male (9-pin D-Sub Male)
• Power Output: 5V DC
• Power Protection: TTL Current Limit Protection
• Jacket Material: PVC
• Colour: Black
• Shielding: Foil and Braid
• Connector Plating: Nickel
• RoHS Compliant: Yes

Recommendations

Ensure compatibility with your Nixdorf Beetle terminal model. This cable is designed for direct power from the terminal; do not use with external power supplies.
