Grafická karta GeForce RTX 5070 Ti 16 GB GDDR7

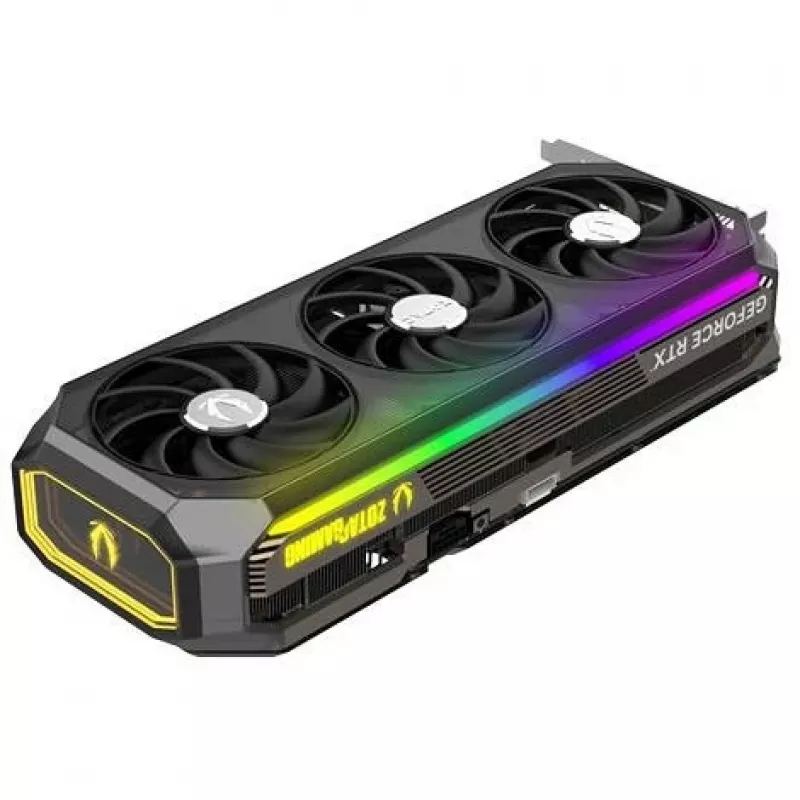

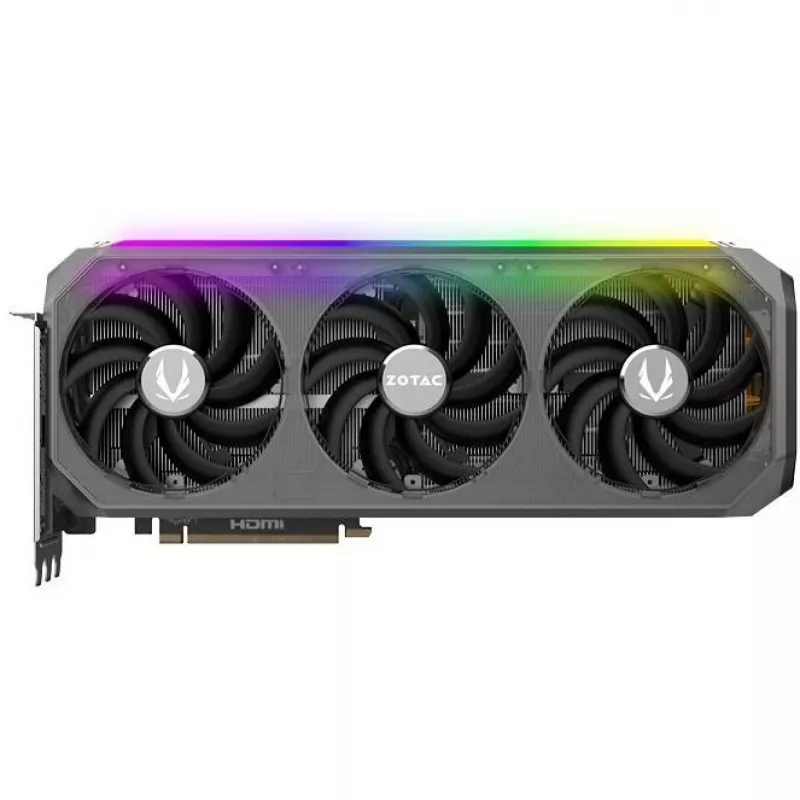

The ZOTAC GAMING GeForce RTX 5070 Ti AMP Extreme INFINITY is a high-performance graphics card based on NVIDIA's Blackwell architecture. It is equipped with a GeForce RTX 5070 Ti GPU running at up to 2512 MHz, 16 GB of GDDR7 memory on a 256-bit bus, and supports resolutions up to 7680 x 4320. The card supports DirectX 12 Ultimate and OpenGL 4.6 and uses an active cooling solution with three fans plus a larger vapor chamber for improved heat dissipation. A reinforced mid-frame and an infinity mirror on the front complete the design while multi-color illumination provides customizable lighting.

Advantages

The GeForce RTX 5070 Ti 16 GB GDDR7 delivers strong raster and ray-tracing performance with support for DLSS 4 and the latest driver features from NVIDIA. Its 16 GB of fast GDDR7 memory on a 256-bit bus enables high-resolution textures and large frame buffers for demanding games and creative workloads. The enlarged vapor chamber and triple-fan active cooling maintain stable frequencies under load, while the reinforced mid-frame improves chassis rigidity. The infinity mirror and RGB lighting offer a visually distinctive appearance for custom builds.

Suitable for

• High-end gaming at 1440p and 4K resolutions
• Ray-tracing enabled titles and DLSS 4 upscaling
• 3D rendering, video editing and other GPU-accelerated creative workloads
• Multi-monitor setups up to 7680 x 4320 resolution

Key specifications

• Graphics processor: GeForce RTX 5070 Ti
• GPU frequency: up to 2512 MHz
• Memory: 16 GB GDDR7
• Memory bus: 256 bit
• Interface: PCI Express x16 5.0
• Maximum resolution: 7680 x 4320
• APIs: DirectX 12 Ultimate, OpenGL 4.6
• Cooling: Active triple-fan with enlarged vapor chamber

How to use

Install the graphics card into a compatible PCI Express x16 5.0 slot on a motherboard with sufficient physical space and power supply capacity. Secure the card to the case, connect the required power connectors from the PSU, and attach display cables to the monitor(s). Install the latest NVIDIA drivers and, if desired, ZOTAC utility software for lighting and performance adjustments. Ensure proper airflow inside the case to maintain optimal cooling performance.

Recommendations

For stable operation and best performance with the GeForce RTX 5070 Ti 16 GB GDDR7, use a power supply that meets ZOTAC's recommended wattage and has the appropriate PCIe power connectors, keep drivers up to date, and maintain good case airflow. When running demanding ray-tracing or rendering workloads, monitor temperatures and ensure the chassis provides adequate ventilation.
