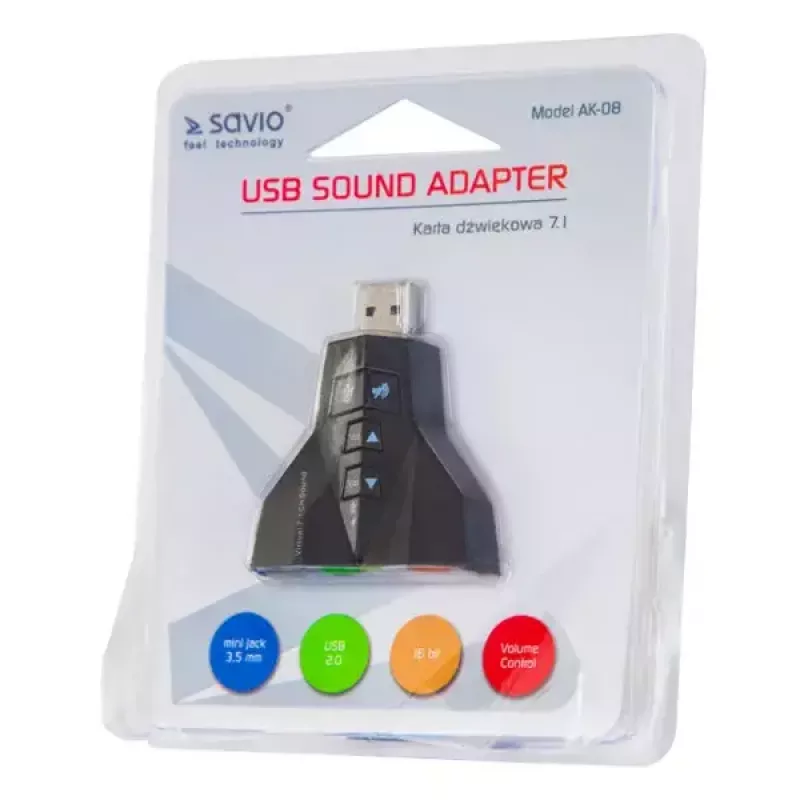

Zvuková karta Savio AK-08 USB 2.0 7.1 rozhranie

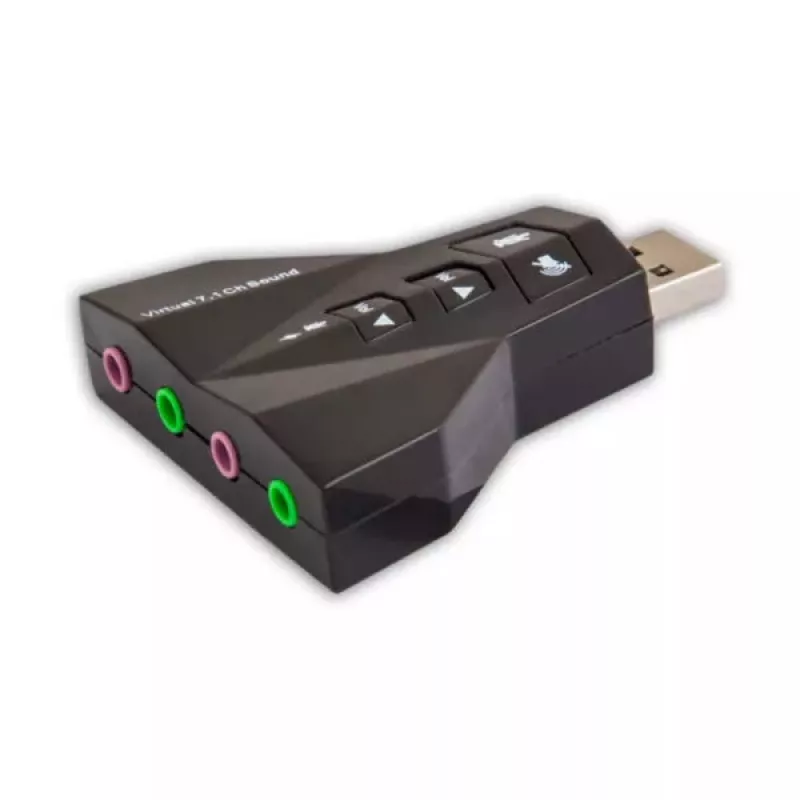

The Savio AK-08 USB 2.0 7.1 Interface is an external USB sound card that provides 16-bit duplex recording and playback for PCs and laptops that lack an internal sound card. It connects via USB 2.0 (Type-A) and offers a simulated 7.1 stereo system, MIDI compatibility with MPU-401 and SoundBlaster standards, and physical volume control on the device. The unit includes two 3.5 mm microphone inputs and two 3.5 mm audio outputs for connecting microphones, headphones and speakers.

Advantages

The device operates in plug & play mode under Windows XP, Vista and 7 and does not require installation of an internal sound card. It supports full 16-bit duplex audio for simultaneous recording and playback, provides MIDI interface compatibility for legacy MIDI devices, and supplies separate mini‑jack connectors for microphone and audio outputs. The physical volume control on the housing allows quick adjustment without software.

Suitable for

Key specifications

How to use

Connect the Savio AK-08 to an available USB Type-A port on your PC or laptop. Attach microphones to the mic inputs and headphones or speakers to the audio outputs using 3.5 mm mini‑jack plugs. The device is recognized as an external sound card and supports 16‑bit duplex recording and playback without installing an internal sound card. Use the volume control on the unit to adjust output level. For MIDI use, connect compatible MIDI devices to the MIDI interface following the host device instructions.

Recommendations

Use with Windows XP, Vista or 7 for plug & play functionality; on other or newer operating systems, check driver compatibility. For best audio clarity, use quality 3.5 mm cables and connect speakers or headphones directly to the output jacks. Avoid aggressive bending of the USB cable to maintain reliable connection.
