1-port keystone jack zásuvka na povrch Equip 125121

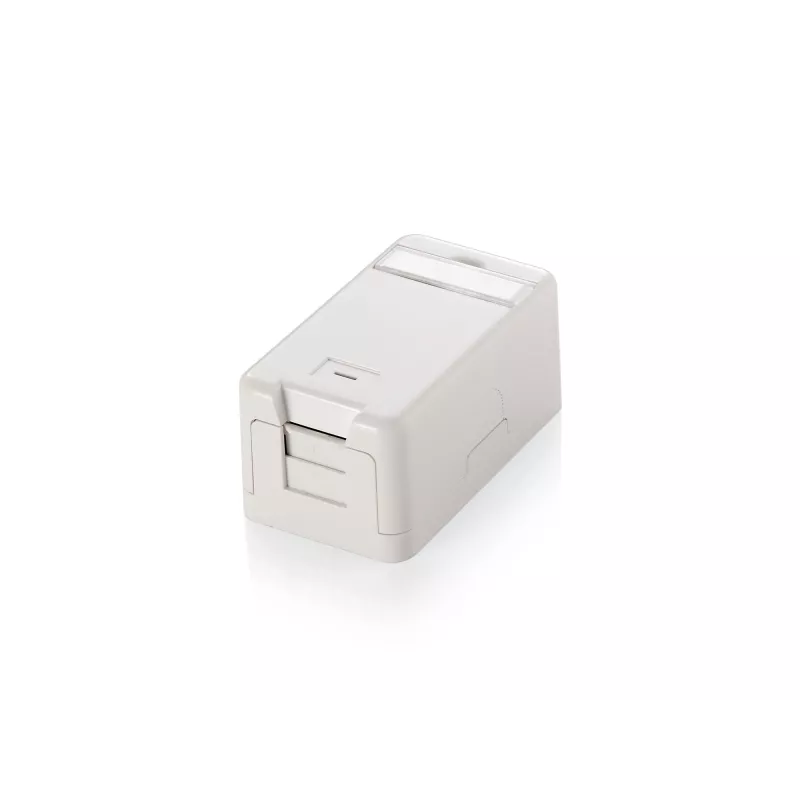

The equip® 1-Port Keystone Jack Surface Mount Box (model 125121) is a compact enclosure designed to house a single keystone jack for Ethernet connections. It accepts Cat5e, Cat6 and Cat6A keystone jacks and provides a tidy, surface-mounted solution for adding a network outlet where in-wall installation is not available. The box measures 65 mm × 37 mm × 30 mm and is supplied with one adhesive tape strip for tool-free mounting.

Advantages

The surface mount box enables quick, tool-free installation using the included adhesive tape and keeps a single keystone jack securely positioned. Its small dimensions make it suitable for discreet mounting on walls or furniture while supporting multiple common Ethernet keystone standards (Cat5e, Cat6, Cat6A) for compatibility with existing network cabling.

Suitable for

• Adding a single Ethernet outlet on a surface (wall, desk or cabinet)
• Temporary or permanent network extensions where in-wall cabling is not possible
• Hiding and organizing a keystone jack for small office or home network setups

Key specifications

• Brand: EQUIP
• Model / MPN: 125121
• EAN: 4015867170281
• Compatible keystone types: Cat5e, Cat6, Cat6A
• Box dimensions: 65 mm (W) × 37 mm (H) × 30 mm (D)
• Package dimensions: 160 mm × 75 mm × 110 mm
• Mounting: supplied adhesive tape (one piece)

How to use

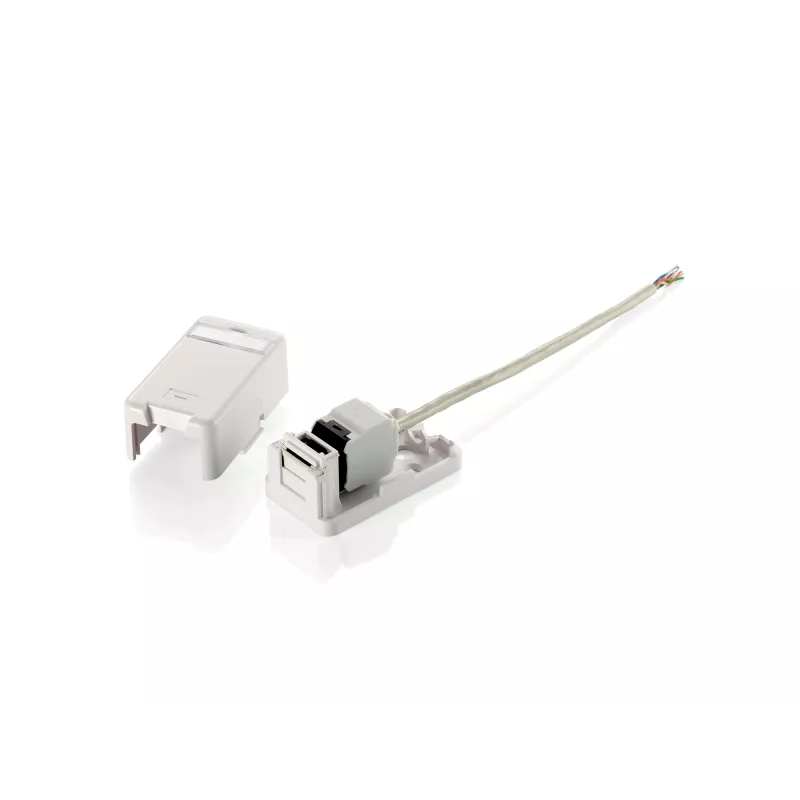

Open the surface mount box and insert a compatible keystone jack (Cat5e/Cat6/Cat6A) into the front opening until it snaps into place. Route the cable to the rear entry, terminate it on the keystone jack according to the jack manufacturer's wiring scheme, then close the box. Position the box on a clean, dry surface and apply the supplied adhesive tape to the box base, pressing firmly to secure. Allow any adhesive curing time recommended by the tape manufacturer before applying mechanical load.

Recommendations

For a long-lasting installation, mount the box on a clean, oil-free surface and avoid locations with extreme heat or moisture. If a permanent or heavily used outlet is needed, consider screw-mounting alternatives or additional mechanical fixation; the supplied adhesive is intended for quick or light-duty installations.
