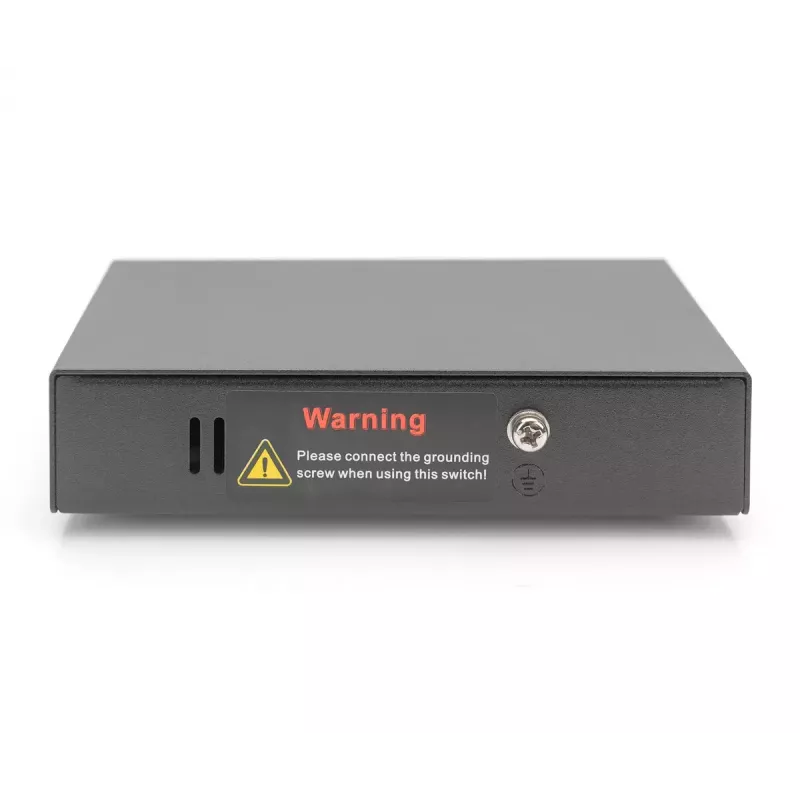

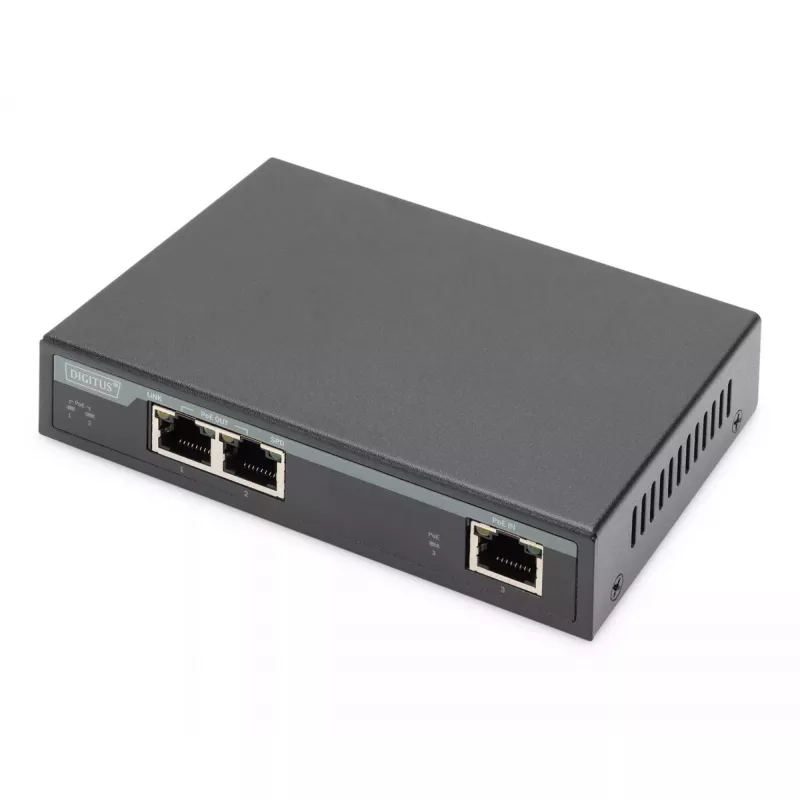

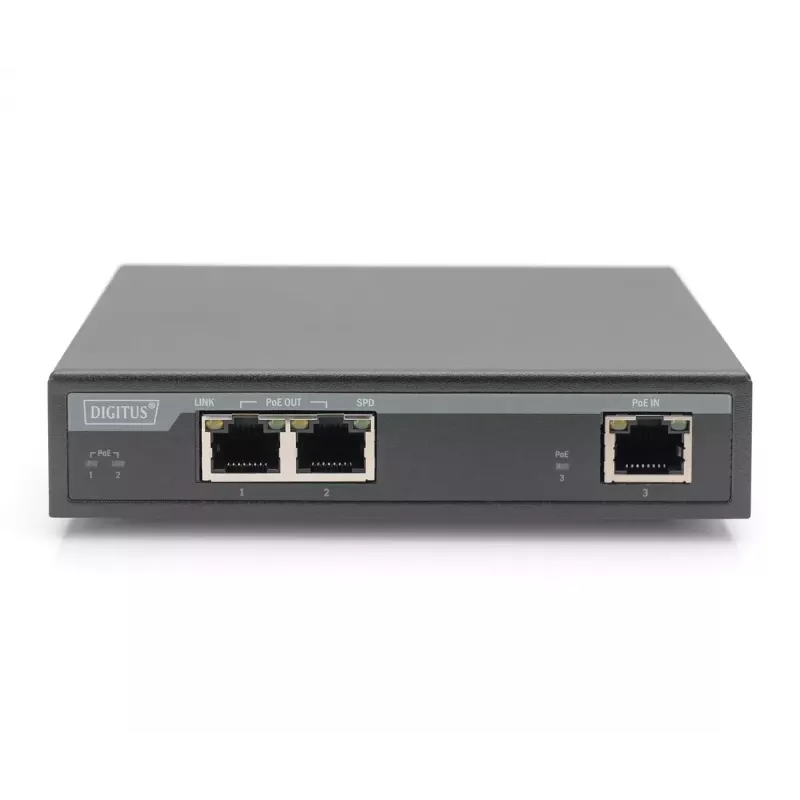

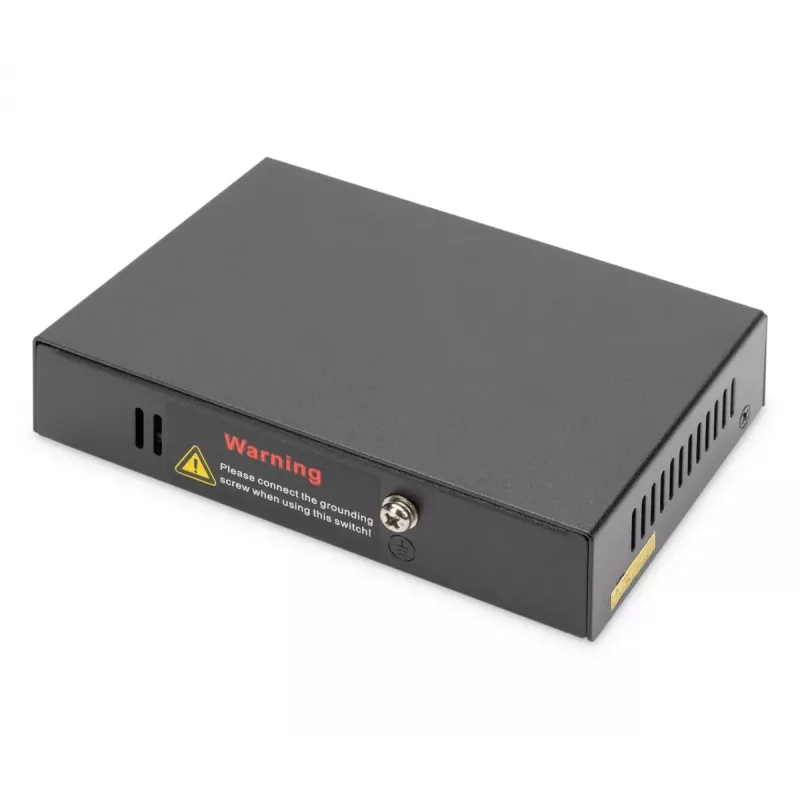

2 portový Gigabit 4PPoE extender Digitus DN-95127-1

The DIGITUS 2 Port Gigabit 4PPoE Extender DN-95127-1 extends your PoE network by up to 100 m without the need for an additional power adapter. The device supports Gigabit Ethernet (10/100/1000 Mbit/s) and transmits data and power over standard network cables, allowing you to expand network connectivity in locations without nearby power outlets. It is compatible with IEEE 802.3af and 802.3at and supports 4PPoE (4-pair PoE) with a PoE voltage of 57 V and a total PoE budget of 45 W.

Advantages

The extender provides plug-and-play installation with automatic detection of PoE devices and LED indicators for Link and PoE status. It delivers full bandwidth across the extended PoE distance and supports PoE+ and 4PPoE to power higher-consumption devices such as access points, POS systems, or video phones. No external power supply is required when using compatible PoE sources.

Suitable for

• Extending Ethernet and PoE connections up to 100 m for IP cameras
• Powering and connecting wireless access points in remote locations
• Supplying PoE to POS terminals and VoIP/video phones
• Expanding network reach in offices, retail or industrial sites without additional power outlets

Key specifications

• Model: DIGITUS DN-95127-1
• Ports: 2 PoE output ports, 1 LAN (RJ-45) input (Gigabit)
• Data rates: 10/100/1000 Mbit/s
• Standards: IEEE 802.3af, IEEE 802.3at, 4PPoE support
• PoE voltage: 57 V
• Total PoE budget: 45 W
• Maximum extension distance: up to 100 m
• Product colour: Black

How to use

Connect an upstream PoE-capable switch or injector to the extender's LAN/RJ-45 input using a standard Ethernet cable. Plug the PoE-powered devices into the extender's output ports. The extender will automatically detect connected PoE devices and begin supplying power and data without additional configuration. Check the LED indicators to confirm link and PoE status.

Recommendations

Use quality Cat5e or higher cabling for reliable Gigabit transmission and to support 4-pair PoE. Ensure the upstream PoE source can provide sufficient power within the 45 W budget and verify device compatibility with IEEE 802.3at/af or 4PPoE specifications.
