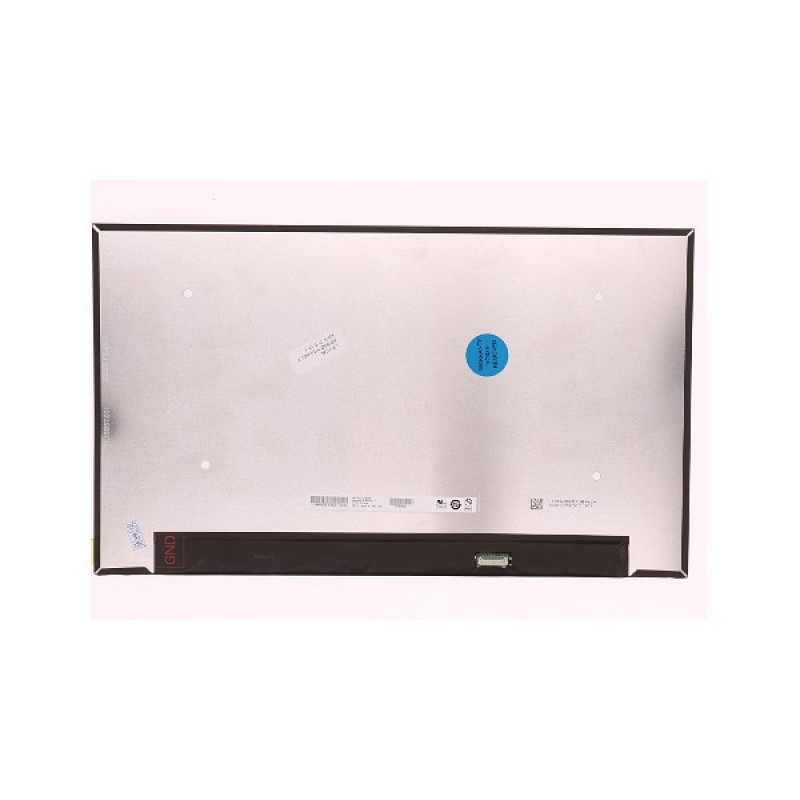

2-power 15,6 1920x1080 FHD 0.4MM Pitch (2P-B156HAN02.9 0A)

Upgrade your laptop's display with this 15.6-inch Full HD IPS panel, delivering crisp 1920x1080 resolution and vibrant colours for an immersive viewing experience. The 0.4 mm pixel pitch ensures fine detail, while the matte anti-glare surface reduces reflections, making it ideal for bright environments.

Advantages

This LCD panel features In-Plane Switching (IPS) technology, providing wide 170° viewing angles and consistent colour reproduction from almost any position. With a brightness of 250 cd/m² and a 45% NTSC colour gamut, it offers clear visuals for everyday productivity and multimedia. The LED backlight ensures energy efficiency and long lifespan, while the 60 Hz refresh rate and 8 ms response time deliver smooth motion for videos and casual gaming. The 30-pin eDP connector allows easy integration with compatible laptops, and the panel-only design (without bezel) offers flexibility for custom installations.

Suitable for

• Replacing a damaged or faulty 15.6-inch laptop screen
• Upgrading to a Full HD IPS display for better colour and viewing angles
• DIY laptop repair and refurbishment projects
• Custom display builds requiring a 30-pin eDP connection

Key specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 (Full HD)
• Panel type: IPS (In-Plane Switching)
• Aspect ratio: 16:9
• Refresh rate: 60 Hz
• Brightness: 250 cd/m²
• Response time: 8 ms (Gray-to-Gray)
• Colour gamut: 45% NTSC
• Backlight: LED
• Surface: Matte (Anti-Glare)
• Connector: 30-pin eDP
• Viewing angles: 170° horizontal / 170° vertical
• Touchscreen: No
• Frame/bezel: Not included (panel only)

Recommendations

For best results, verify your laptop's screen size, resolution, and connector type before purchase. Professional installation is recommended to avoid damage. Handle the panel by its edges and avoid touching the surface to prevent fingerprints and scratches.
