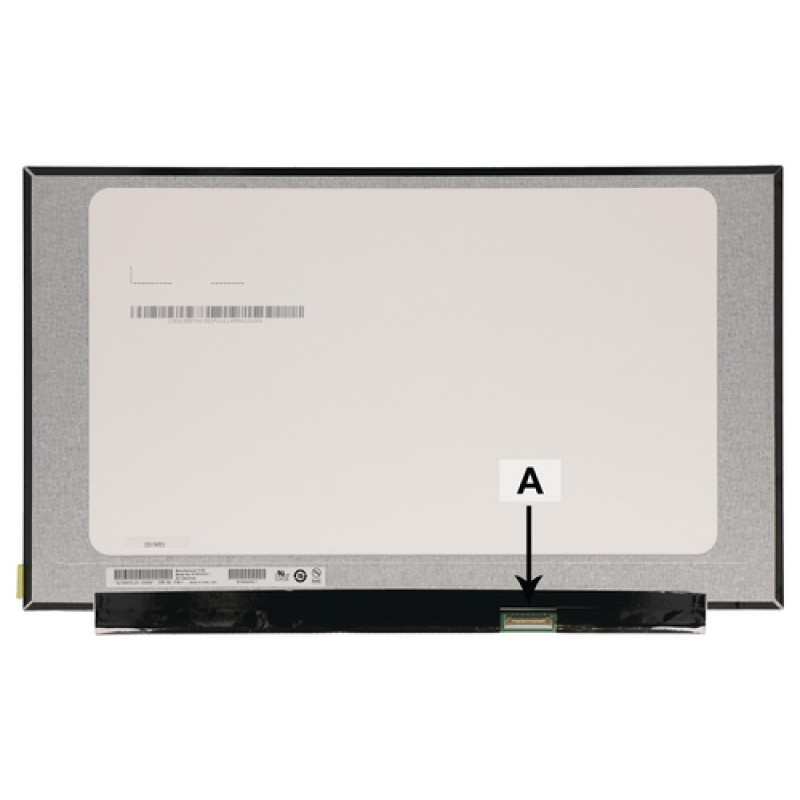

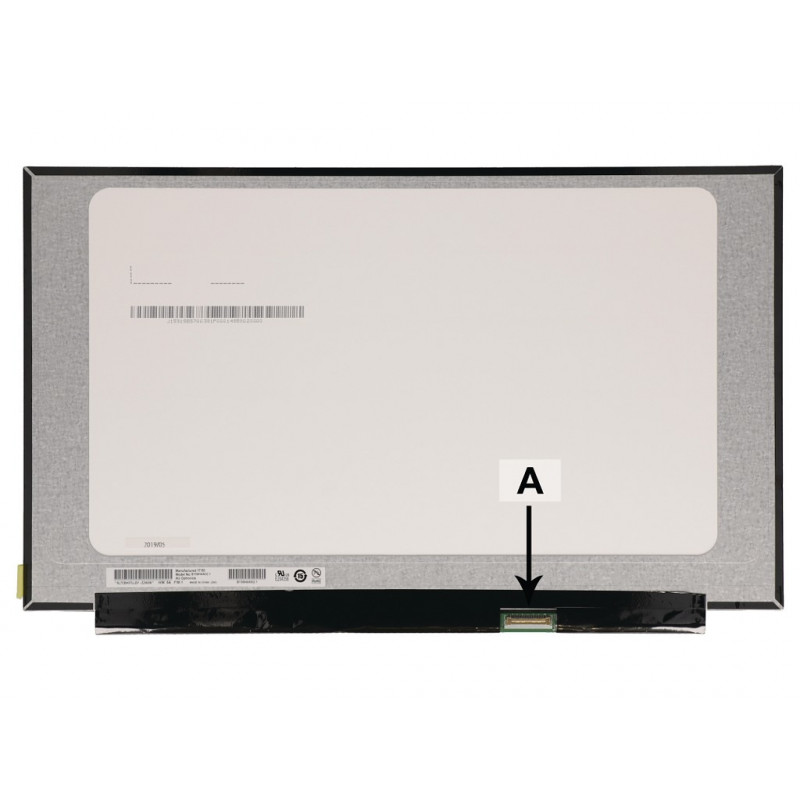

2-power 15.6 WUXGA 1920x1080 FHD IPS 46 Gamut (2P-NV156FHM-N48 V8.2)

A cracked or faulty laptop display can bring your productivity to a halt, but replacing it doesn’t have to be a hassle. The 2-POWER 15.6-inch FHD IPS panel restores your laptop’s visuals with a crisp 1920x1080 resolution, wide viewing angles, and a matte finish that reduces glare in bright environments. Designed as a bare panel without a bezel, it offers a universal fit for many laptops that require a 30-pin eDP connection, making it a practical choice for DIY repairs and professional refurbishments alike.

Who is it for

This replacement screen is ideal for technicians, IT departments, and home users who need to revive a laptop with a damaged display. If your original panel is 15.6 inches, FHD, IPS, and uses a 30-pin eDP connector, this screen can bring your device back to life without the cost of a new laptop.

Main features

• 15.6-inch IPS panel with Full HD 1920x1080 resolution for sharp text and vibrant images.
• Wide 178° viewing angles ensure consistent colors from almost any position.
• 46% color gamut coverage delivers adequate color reproduction for everyday tasks.
• Matte anti-glare surface reduces reflections, making it easier to work in bright rooms or outdoors.
• Standard 30-pin eDP connector for broad compatibility with laptops using this interface.
• LED backlight with a typical brightness of 250 cd/m² for clear visibility in most lighting conditions.
• 60Hz refresh rate is suitable for office work, web browsing, and video playback.
• Bare panel design (no bezel) allows you to reuse your existing frame or purchase one separately.
• A+ grade panel ensures high quality and reliability, with no dead pixels or defects.

Specifications

• Screen size: 15.6 inches
• Resolution: 1920 x 1080 pixels (FHD)
• Display technology: IPS (In-Plane Switching)
• Aspect ratio: 16:9
• Backlight type: LED
• Color gamut: 46% (NTSC/sRGB)
• Surface finish: Matte (anti-glare)
• Connector type: eDP 30-pin
• Refresh rate: 60Hz
• Viewing angle: 178° horizontal / 178° vertical
• Brightness: 250 cd/m² (typical)
• Touchscreen: No
• Frame/bezel: Not included (bare panel)
• Panel grade: A+

Tips

Before ordering, verify your laptop’s original panel part number and connector type to ensure compatibility. Installation requires careful handling of the ribbon cable and may involve removing the bezel and screws; if you’re not confident, seek professional help. Keep the protective film on until installation is complete to avoid scratches.
