2-power 2P-18003067 - displej - 39,6 cm (15.6) - WXGA

For technicians and DIY upgraders who demand a drop-in replacement that matches original factory specifications, the 2-POWER 2P-18003067 delivers a 15.6-inch WXGA panel with the exact 40-pin LVDS interface and side-mount brackets needed for a clean, no-modification install. Unlike generic panels that require adapter boards or leave unsightly gaps, this screen is built around the same TN technology and LED backlight architecture used by major laptop OEMs, ensuring consistent brightness, colour, and viewing angles straight out of the box.

Highlights

• 15.6-inch (39.6 cm) WXGA resolution (1366 x 768) with a 16:9 aspect ratio for sharp, widescreen productivity.
• LED backlight with a glossy surface for vibrant colours and deep contrast in indoor environments.

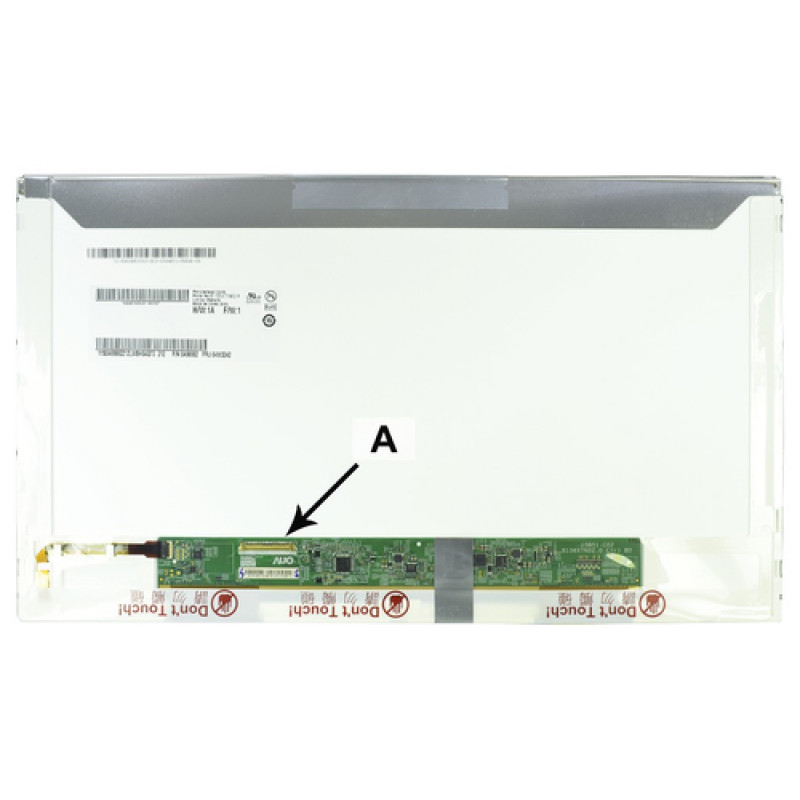

• 40-pin LVDS connector positioned bottom-left (viewed from the back) for straightforward cable routing.
• Side mounting brackets pre-attached to match common laptop chassis designs.
• TN panel with 6-bit colour depth and a typical brightness of 200–220 cd/m².
• 60 Hz refresh rate and 8–16 ms response time for smooth video and everyday tasks.
• Meets ISO 13406-2 Class II pixel policy, ensuring a reliable, defect-controlled display.

In daily use

Once installed, this panel behaves like the original: text is crisp at native resolution, colours are accurate for spreadsheets and web browsing, and the glossy coating adds punch to photos and video. The LED backlight runs cool and consumes less power than older CCFL designs, which helps preserve battery life. Because the connector is bottom-left, cable management is simplified in most 15.6-inch laptops, and the side brackets align with standard screw holes, reducing the risk of flex or vibration.

Full specifications

• Display diagonal: 39.6 cm (15.6")
• HD type: WXGA (1366 x 768 pixels)
• Display type: TFT LCD with LED backlight
• Backlight type: LED
• Surface: Glossy (glare)
• Connector type: 40-pin LVDS
• Connector location: Bottom left (viewed from back)
• Panel technology: TN (Twisted Nematic)
• Colour depth: 6-bit
• Voltage: 3.3V
• Refresh rate: 60 Hz
• Response time: 8–16 ms (typical)
• Brightness: 200–220 cd/m² (typical)
• Mounting: Side brackets
• Pixel policy: ISO 13406-2 Class II
• Condition: New

Final note

Before ordering, verify your laptop's exact panel model, connector position, and mounting style. The 2P-18003067 is a precise replacement for many 15.6-inch WXGA laptops, but a quick visual check of the existing screen will confirm compatibility.
