2-power 2P-B156HTN06.1 HW3A - 39,6 cm (15,6")

Replace a faulty laptop display with this 15.6-inch HD LED panel from 2-POWER, engineered for crisp visuals and dependable everyday performance. The 1366 x 768 resolution on a TN panel delivers sharp text and clear images, while the matte anti-glare coating reduces reflections for comfortable viewing in bright environments. A 30-pin eDP connector ensures straightforward installation into compatible laptops, and the panel's 220 cd/m² brightness provides adequate visibility for office tasks, web browsing, and multimedia. With a 60 Hz refresh rate and 8 ms response time, it handles standard computing smoothly. This panel is a direct replacement for the 2P-B156HTN06.1 HW3A model and fits laptops requiring a 15.6-inch HD 30-pin eDP display.

Advantages

The TN panel offers fast response times and low power consumption, making it ideal for portable use. The matte surface minimizes glare, reducing eye strain during extended sessions. LED backlighting delivers consistent brightness and energy efficiency. The 30-pin eDP connector is widely used, simplifying upgrades or repairs. Side mounting brackets align with standard laptop chassis, and the panel's compact form factor preserves the laptop's slim profile.

Suitable for

• Replacing a cracked, dim, or dead 15.6-inch HD laptop screen
• Upgrading an older laptop with a compatible 30-pin eDP panel
• DIY repair projects and professional refurbishment
• Users who need a reliable display for office work, study, or media consumption

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (HD)
• Panel type: TN (Twisted Nematic)
• Backlight: LED
• Surface: Matte (anti-glare)

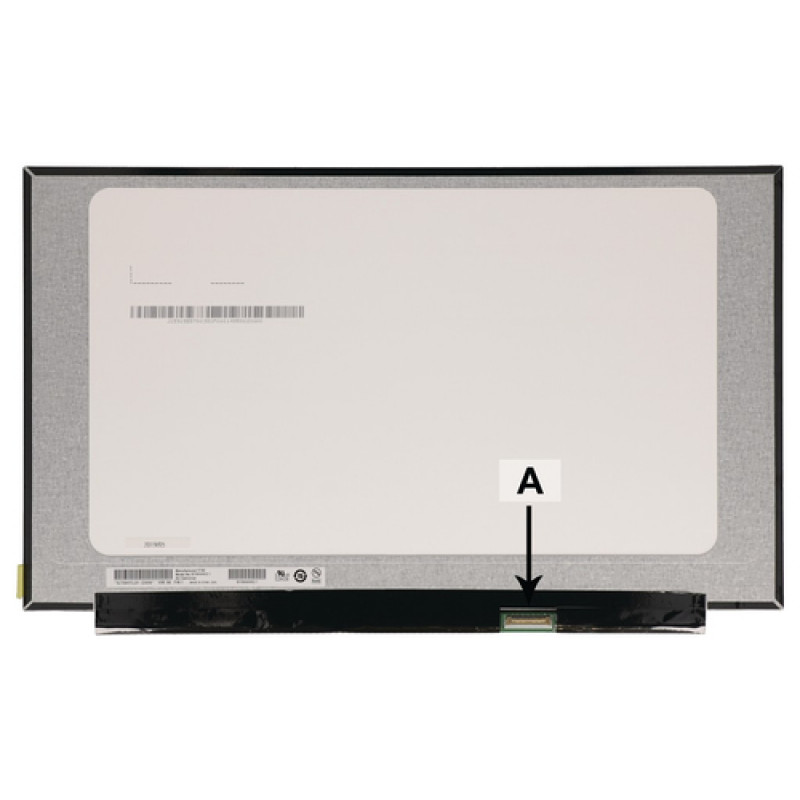

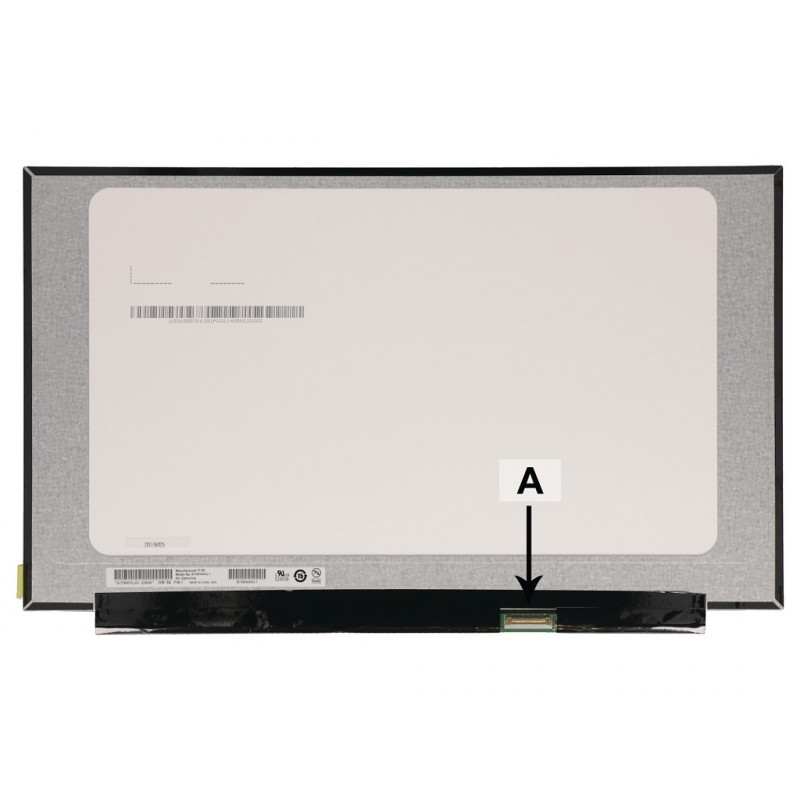

• Connector: 30-pin eDP, bottom right
• Refresh rate: 60 Hz
• Brightness: 220 cd/m²
• Response time: 8 ms
• Viewing angles: 45° horizontal, 20° vertical
• Color gamut: 45% NTSC
• Mounting: side brackets

Recommendations

Before ordering, verify your laptop's screen size, resolution, and connector type (30-pin eDP). Handle the panel by its edges to avoid damage, and test before final assembly. For best results, use an anti-static workspace and follow a reliable disassembly guide for your laptop model.
