2-power 2P-B156XTN03.2 - displej - 39,6 cm (15,6") - WXGA

A dim, cracked, or dead laptop screen brings productivity to a halt. The 2-POWER 2P-B156XTN03.2 is a direct replacement LCD panel engineered to restore your notebook's display to crisp, bright clarity. Compatible with AUO B156XTN03.2 specifications, this 15.6-inch WXGA HD panel delivers the exact visual performance your system was designed for, without the cost of a new laptop.

Who is it for

This panel is ideal for IT technicians, repair shops, and DIY enthusiasts who need a reliable, cost-effective screen replacement for laptops originally equipped with a 15.6-inch WXGA HD TN panel. It suits users who value a straightforward swap with guaranteed connector and mounting compatibility.

Main features

• 15.6-inch diagonal size with 1366 x 768 (WXGA HD) resolution for clear, detailed images.
• Glossy surface with hard coating (3H) enhances colour vibrancy and resists scratches.
• LED backlight (WLED) provides consistent brightness of 200 cd/m² and low power consumption.
• TN (Twisted Nematic) technology offers fast 8 ms response time, reducing motion blur.
• 40-pin LVDS interface (1 channel, 6-bit) ensures compatibility with a wide range of laptops.

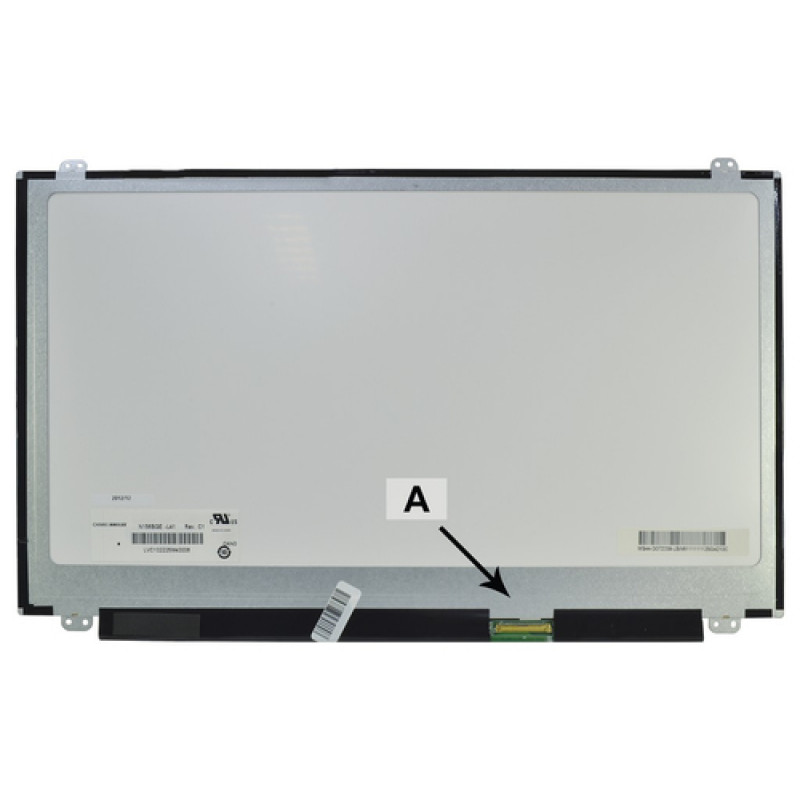

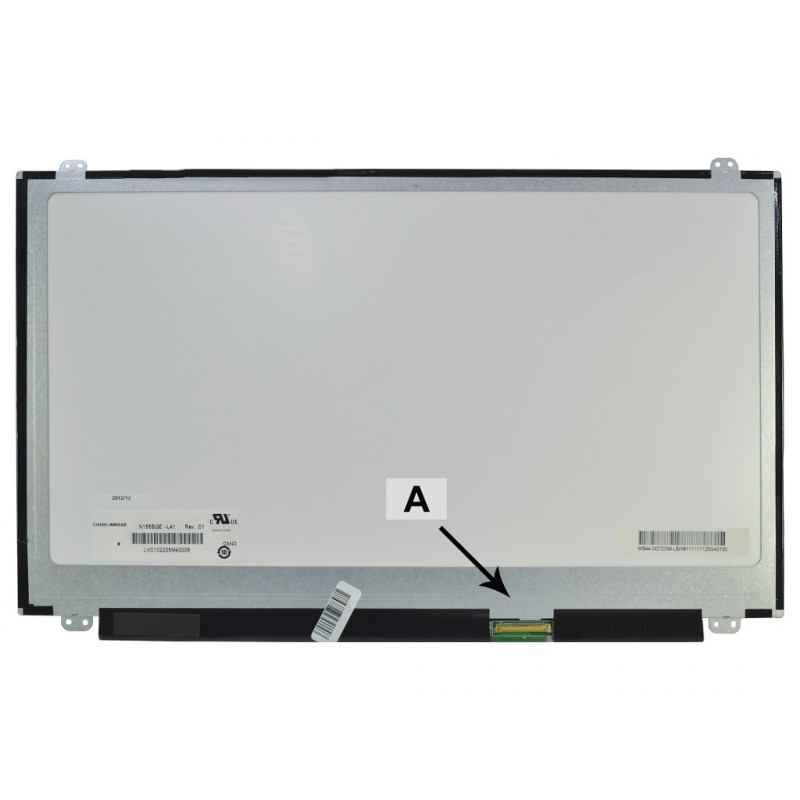

• Standard mounting holes and bottom-right connector position (viewed from back) simplify installation.

Specifications

• Screen size: 15.6 inches
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: WLED (LED)
• Brightness: 200 cd/m² (typical)
• Contrast ratio: 500:1 (typical)
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Response time: 8 ms (typical)
• Colour depth: 262K (6-bit)
• Refresh rate: 60 Hz
• Signal interface: LVDS (1 channel, 6-bit)
• Connector pins: 40 pins
• Connector position: Bottom right (viewed from back)
• Voltage supply: 3.3V (typical)
• Compatibility: AUO B156XTN03.2 compatible
• Technology: TFT Active Matrix

Tips

Before ordering, verify your original panel's model number (often printed on the back) to ensure exact compatibility. Handle the panel by its edges and use an anti-static wrist strap during installation. Test the screen before fully reassembling the laptop to confirm functionality.
