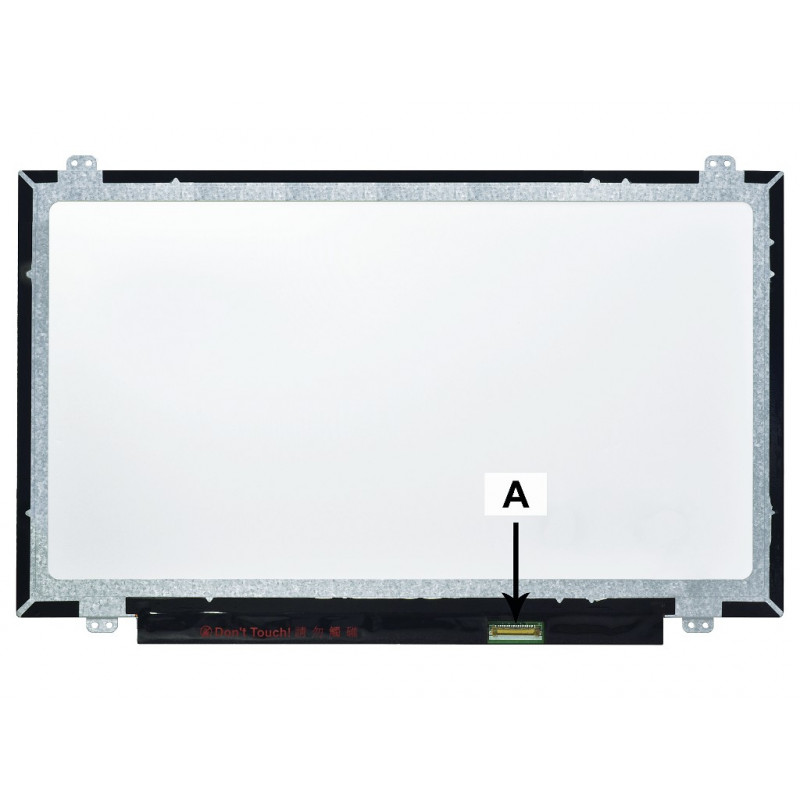

2-power 2P-HB140WX1-301 - 35,6 cm (14 inch) - WXGA

When a laptop screen cracks or fades, technicians need a reliable replacement that restores clarity without breaking the bank. The 2-POWER 2P-HB140WX1-301 is a 14-inch WXGA panel built for exactly that: a straightforward swap that brings a notebook back to life. It fits a wide range of laptops using a 30-pin eDP connection, making it a practical choice for repair shops, IT departments, and DIY upgraders.

Key specifications

• 14.0-inch (35.6 cm) TFT active matrix LCD with LED backlight
• WXGA resolution: 1366 x 768 pixels, 16:9 aspect ratio
• Matte (anti-glare) surface for comfortable viewing in bright environments
• 30-pin eDP (Embedded DisplayPort) connector
• TN panel with 60 Hz refresh rate and 8 ms typical response time
• Brightness: 220 cd/m²; contrast ratio: 400:1
• Color gamut: 45% NTSC; viewing angles: 45°/45°/20°/40° (L/R/U/D)
• No touchscreen functionality

Why choose it

This panel is a direct replacement for many original screens, so you avoid compatibility guesswork. The matte finish reduces glare, and the LED backlight delivers consistent brightness while consuming less power than older CCFL panels. With a standard 30-pin eDP interface, installation is straightforward for anyone familiar with laptop disassembly. It is a new, unused part—not a pull from a used machine—so you get a clean, scratch-free surface and full lifespan.

Ideal use cases

• Replacing a broken or dim 14-inch WXGA screen in a laptop
• Upgrading a glossy screen to a matte finish for outdoor or office use
• Stocking a repair bench with a common panel for quick turnaround
• Refurbishing used laptops for resale or donation

Good to know

Before ordering, confirm your laptop's screen size, resolution, connector type (30-pin eDP), and mounting brackets. While this panel fits many models, exact compatibility depends on the original panel's physical dimensions and connector position. The panel is shipped in protective packaging to prevent damage during transit. For best results, handle by the edges and avoid touching the surface or connector pins.
