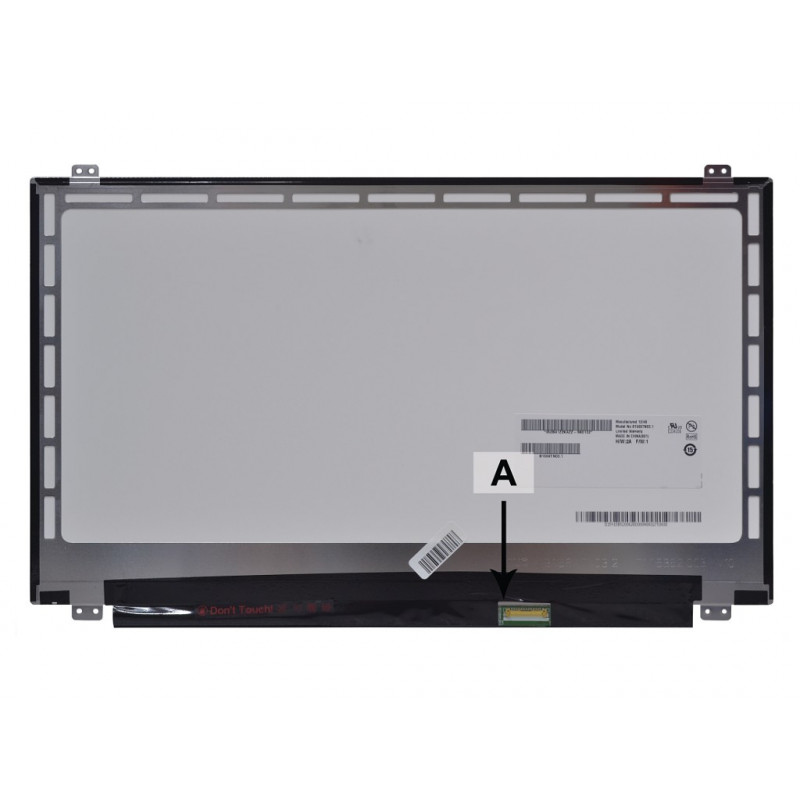

2-power 2P-LP156WHB-TPC1 - 39,6 cm (15,6 inch) - WXGA

Unlike generic replacement panels that force compromises in brightness or viewing stability, the 2-POWER 2P-LP156WHB-TPC1 delivers a factory-fresh 15.6-inch WXGA display with a glossy LED-backlit TN surface, precisely matched to the original 40-pin LVDS interface. This panel brings back crisp 1366 x 768 visuals with 220 cd/m² typical brightness and a 60 Hz refresh rate, making it a dependable drop-in upgrade for laptops that demand consistent colour and motion clarity without driver tweaks or bracket modifications.

Highlights

• 15.6-inch (39.6 cm) WXGA resolution (1366 x 768) with 16:9 aspect ratio
• Glossy TN panel with LED backlight and 220 cd/m² typical brightness
• 40-pin LVDS connector for broad compatibility with mainstream laptops
• 8 ms typical response time and 60 Hz refresh rate for smooth video
• Side bracket mounting and universal fit for 15.6" WXGA LVDS systems

In daily use

Spreadsheets, web browsing, and streaming content all benefit from the panel's balanced contrast and 45% NTSC colour gamut. The glossy finish enhances perceived depth and colour saturation in controlled lighting, while the LED backlight keeps power draw at just 3.5 W typical, helping preserve battery runtime. The 40-pin LVDS connector ensures straightforward installation on supported chassis, and the side brackets align with standard mounting points, reducing the risk of fitting errors during replacement.

Full specifications

• Brand: 2-POWER
• Model: 2P-LP156WHB-TPC1
• Display diagonal: 15.6 inches (39.6 cm)
• Display resolution: 1366 x 768 (WXGA)
• HD type: WXGA
• Panel type: TN (Twisted Nematic)
• Backlight type: LED
• Surface finish: Glossy
• Brightness: 220 cd/m² typical
• Response time: 8 ms typical
• Refresh rate: 60 Hz
• Viewing angles: 45/45/20/40 (L/R/U/D)
• Color gamut: 45% NTSC
• Connector type: 40-pin LVDS
• Touchscreen: No
• Mounting type: Side brackets
• Power consumption: 3.5 W typical
• Technology: TFT Active Matrix
• Condition: New
• Compatibility: Universal for laptops supporting 15.6" WXGA 40-pin LVDS panels

Final note

For technicians and DIY upgraders, this panel removes the guesswork from display replacement. Its exacting LVDS signalling and standardised dimensions mean fewer returns and a more predictable repair outcome, all from a brand known for reliable aftermarket components.
