2-power 2P-LTN156AT20-P01 - displej - 39,6 cm (15,6") - WXGA

This 15.6-inch WXGA display panel delivers crisp 1366x768 resolution with LED backlighting and a glossy finish, making it an ideal replacement for laptops originally equipped with Samsung LTN156AT20 or compatible panels. The TN panel offers fast response and a 60Hz refresh rate, ensuring smooth visuals for everyday computing.

Advantages

The 2-Power 2P-LTN156AT20-P01 brings your laptop back to life with a bright, clear picture. Its LED backlight provides consistent illumination and energy efficiency, while the glossy surface enhances color vibrancy. The 40-pin LVDS connector is positioned bottom-left for straightforward installation, and the panel's standard dimensions ensure compatibility with a wide range of laptop models.

Suitable for

• Replacing a cracked, dim, or faulty 15.6-inch WXGA screen in laptops
• Users who need a cost-effective, reliable display with HD resolution
• Technicians and DIY enthusiasts comfortable with laptop disassembly
• Systems that require a 40-pin LVDS connection and bottom-left connector orientation

Key specifications

• Screen size: 15.6 inches (39.6 cm)
• Resolution: 1366 x 768 (WXGA HD)
• Aspect ratio: 16:9
• Panel type: TN (Twisted Nematic)
• Backlight: LED

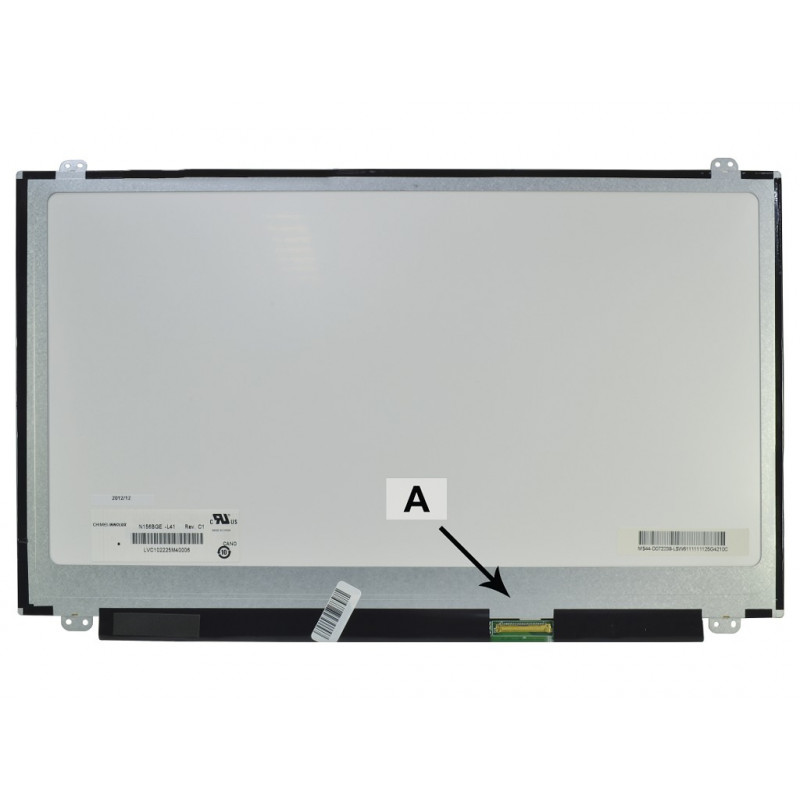

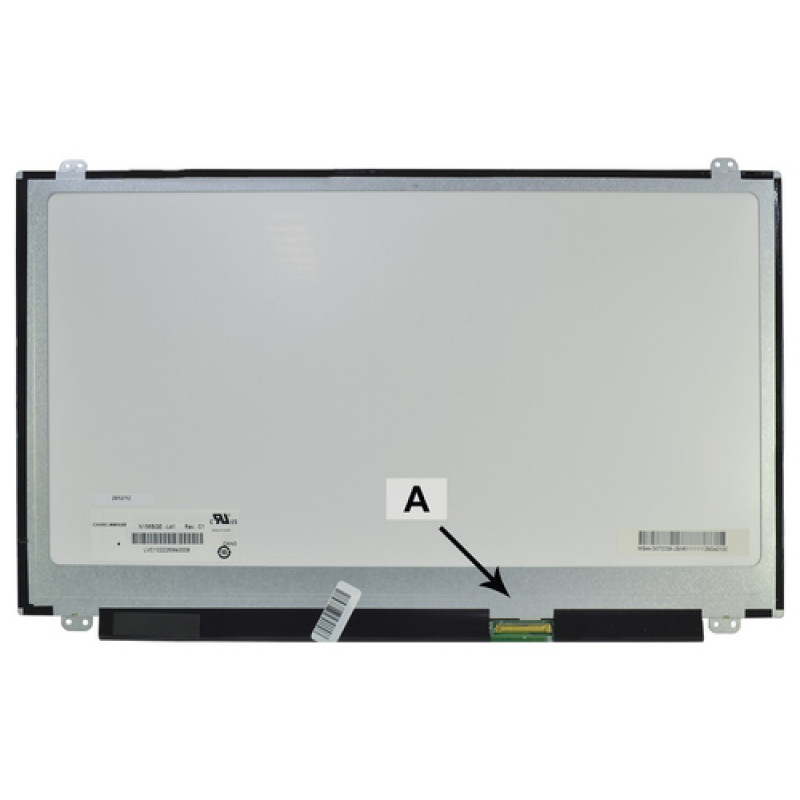

• Connector: 40-pin LVDS, bottom-left position
• Surface: Glossy
• Refresh rate: 60 Hz
• Brightness: 200 cd/m² typical
• Color support: 262K (6-bit)
• Response time: 8-16 ms typical
• Viewing angle: Narrow (typical for TN)
• Touchscreen: No
• Compatibility: Replacement for Samsung LTN156AT20 and compatible panels

Recommendations

Before ordering, verify your laptop's screen size, resolution, connector type, and mounting brackets. Handle the panel by its edges to avoid damage. Professional installation is recommended if you are not experienced with laptop repairs.
